Specifications
Brand Name :
Chitwing
Model Number :
Beauty Apparatus
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
350.000 X 400.000 X 451.000
IMM Tonnage :
180T
Mold Weight :
395kg
Mold base P/N :
CI3040 8012090
Standard :
LKM
Lifter :
9
Gate :
Submarine gate
Part material :
PPS+30%GF
Type :
Two-plates mold
Injection/runner type :
Hot runner
Description

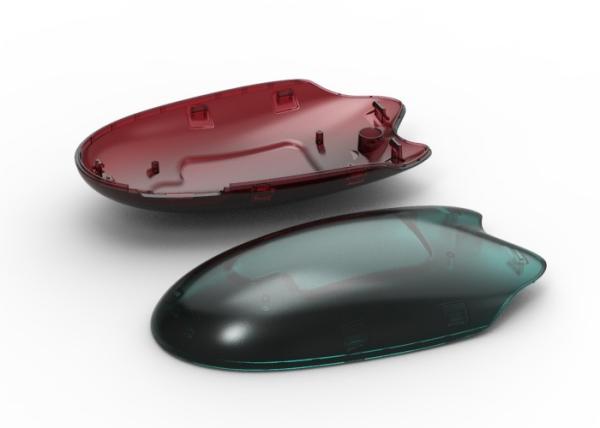

Transparent Beauty Instrument

Upper Housing (1*8)

No.24311-B

Mold base P/N
CI3040 8012090
Mold size Length Net weight
350
Width 395kg
400
Height IMM Tonnage
451
Standard Lifter 180T
LKM 9

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B

Gate

Submarine gate
Type
Two-plates mold
Part material
PPS+30%GF
Part weight
19.5g
Part size
63.56*110.62*20.88mm
Injection/runner type
Hot runner
Surface finish
A surface polished with 1000#
Steel of cavity & core
Harden (1*8/S136)

Mold life≥ 500k shots

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-BOEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B

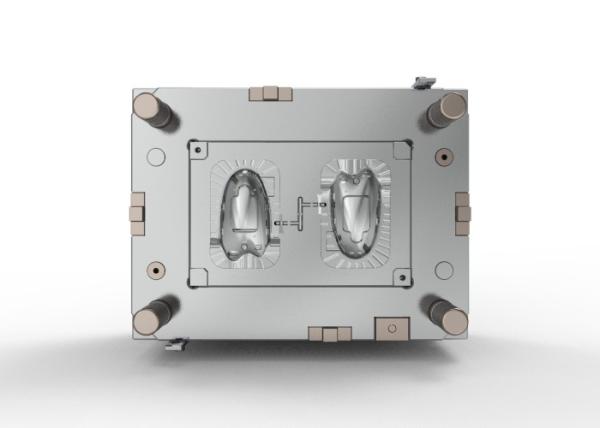

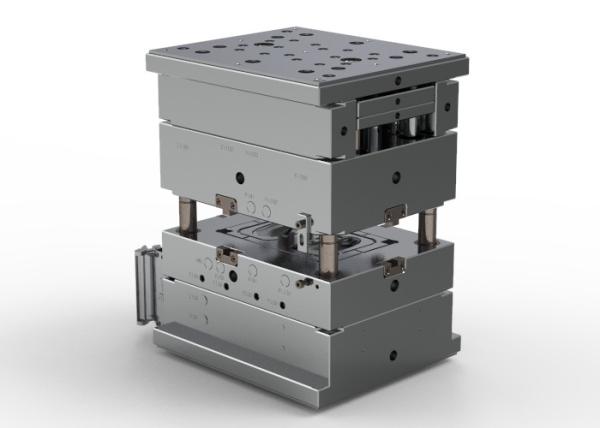

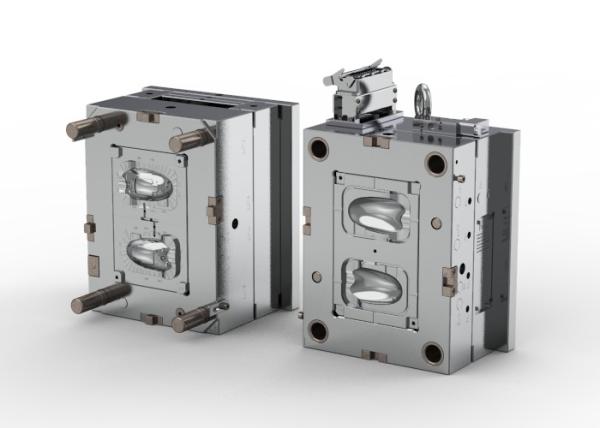

The mold is developed, designed and manufactured by Chitwing. Taking the part appearance and economic applicability into full consideration, the mold is provided with two-plate mold structure, is precisely occluded and free of leakage, and is designed with hot runner and submarine gate. The gate is invisibly located inside the part and the hot runner is excellent to ensure the uniform flow of molten mass and the consistent molding quality of finished parts. The critical surface of the mold EDM with 1000# to make the mold highly clean, so that the molded part is more smooth in surface, and free of splay mark, gas marks, clear details and strong expressiveness

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B

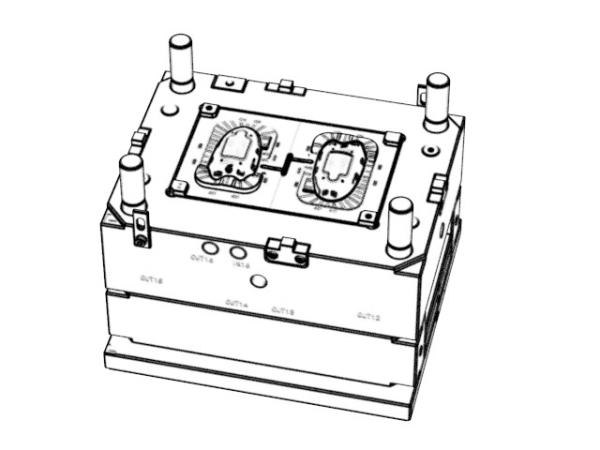

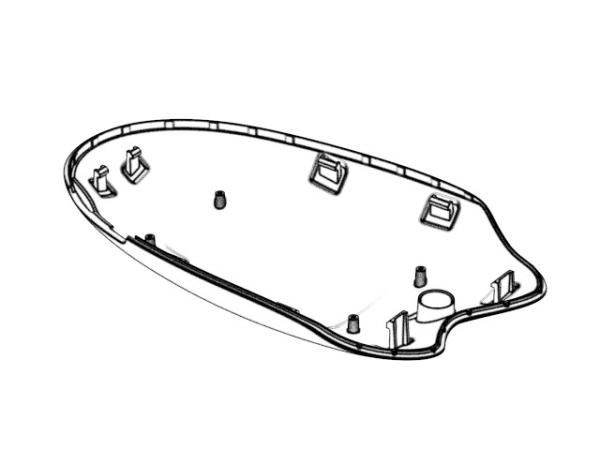

Display diagram

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B

OEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-BOEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-BOEM /ODM : Coustom electronic enclosures mold / Transparent Beauty Instrument Upper Housing (1*8) No.24311-B
