OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
Specifications
Brand Name :
Chitwing
Model Number :
Router
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Product material :
PC+ABS
IMM Tonnage :
180T
Size :
580X 600 X 560.2mm
Mold Weight :
1600kg
Gate :
Pin point gate+Side gate
Part material :
PC+ABS
Mould material :
S136
Description

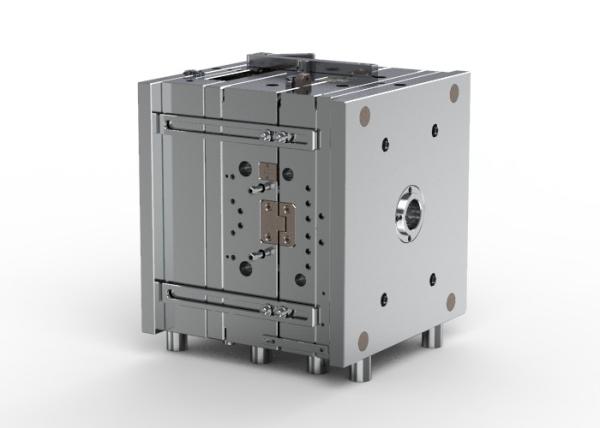

Router Bottom Housing (1*1)

No.23892

Mold base P/N - DCI5060 120150120
Size - 580X 600 X 560.2 mm
Standard - LKM
Gate Pin Point gate
Side gate

The mold with pin point gate + side gate, low injection pressure loss, easy to de-gating,

flexible in filling pattern and easy to mold manufacturing.
Type: Three-plates mold self-degating, Good for cosmetic

OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892

Material - PC+ABS
Injection/runner type - Hot runner

With short molding cycle time, and no material loss of cold runner, high automation degree,

and good for part cosmetic.

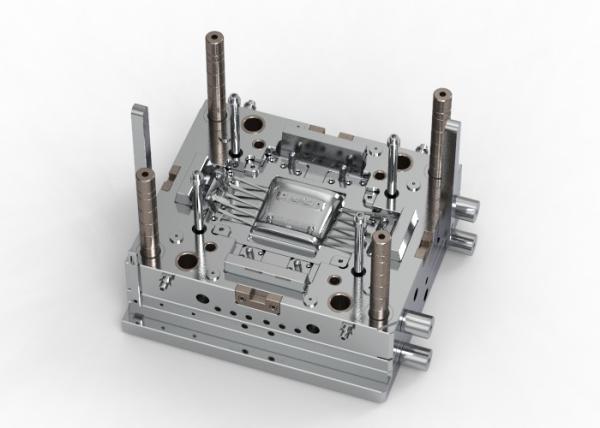

Features - 2x core slides (4x core angled slides) 10xcore tunnel slides) 19x lifters
Surface Finish
⑴ A surface etch with VDI3400-27#
⑵ A surface EDM with Charmilles VDI3400-18#
Steel of cavity & core
- Harden (1*1/S136)

Better roughness, hardness,

anti-wearing and anti-corrosion
Better

OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892

Mold Net Weight - 1600kg
IMM Tonnage - 180T

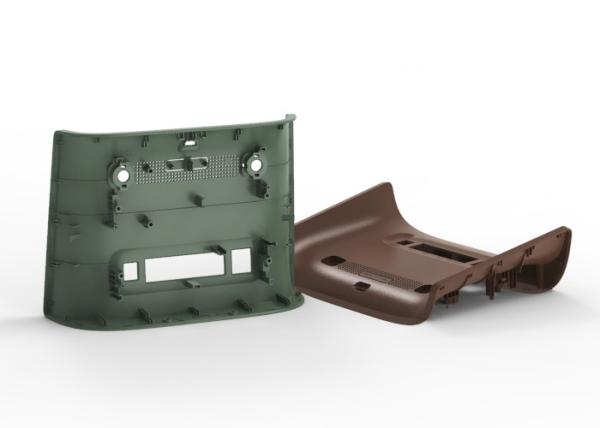

Part Net Weight - 74.47g
Part Overall Size - 127.00x182.07x59.79mm

OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892

Display diagram

OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892

OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892
