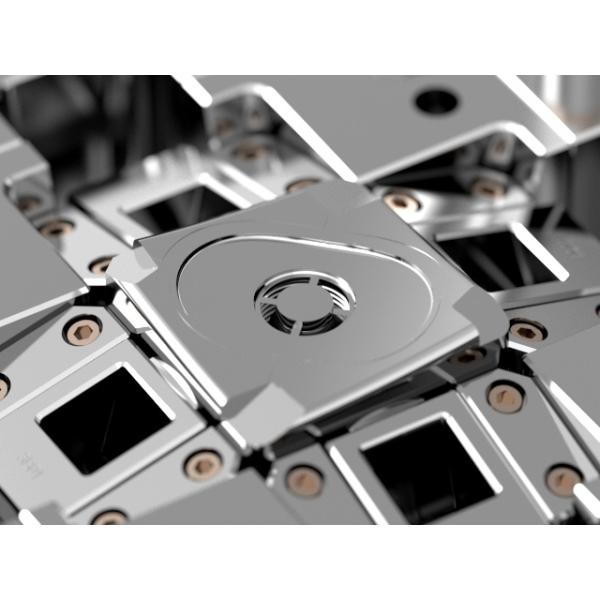

OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
Specifications
Brand Name :
Chitwing
Model Number :
In-Car Products
Certification :
ISO 9001:2015
Place of Origin :
India
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
550.000 X 600.000 X 567.210
IMM Tonnage :
100T
Mold Weight :
1335kg
Standard :
LKM
Type :
Three-plates mold
Gate :
Pin point gate
Part material :
PC
Features :
4 xslides and 2x lifters
Description

On-board Universal Joint Base (1*4)

No.23910

Mold base P/N: FCI5560 85130150 Mold net weight
Overall size Standard Type Gate 1335kg
Length Width Height LKM Three-plates mold Pin point gate IMM Tonnage
550 600 567.21 100T

OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910

[Injection/runner type]: Hot runner [the hot runner turns to the cold runner]

This mold with cost-effective filling system(hot sprue to cold runner, W/O cold sprue)

Benefits: save runner material, self-degating, full-automatic molding, post-treatment free,

low pressure loss.

[Surface finish]

①A surface EDM with VDI24#
② Inner surface EDM with SPI-B1
With smoothly part surfaces, touch-friendly and good for jointing.

OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910

[Features] - 4 xslides and 2x lifters

[Part material]: PC

[Part weight]: 7.15g

[Part size]: 54.78 X 54.78 X 20.38mm

Tool life: 500k shots

OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910

Display diagram

OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
