Specifications
Brand Name :
Chitwing
Model Number :
Overear Headphone
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Product Name :
Single Cavity Injection Mold
Size :
400 X 400 X 386mm
IMM Tonnage :
180(T)
Mold Weight :
390(KG)
Standard :
LKM
Slide :
1
Lifter :
8
Design software :
3D-UG 4.0/ 2D-CAD
Mould life :
500000 shots
Description

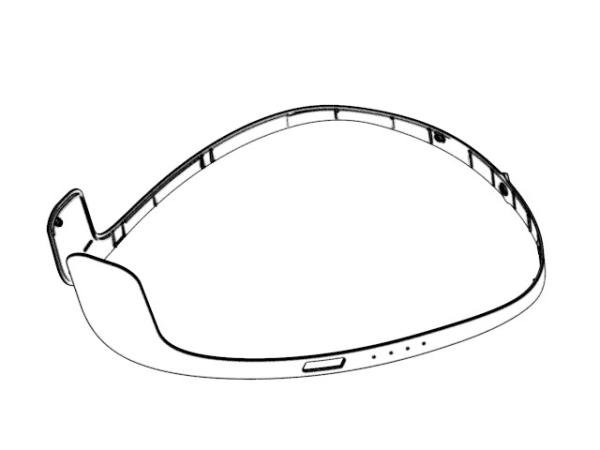

Transparent Shell (1*1)

No.19014

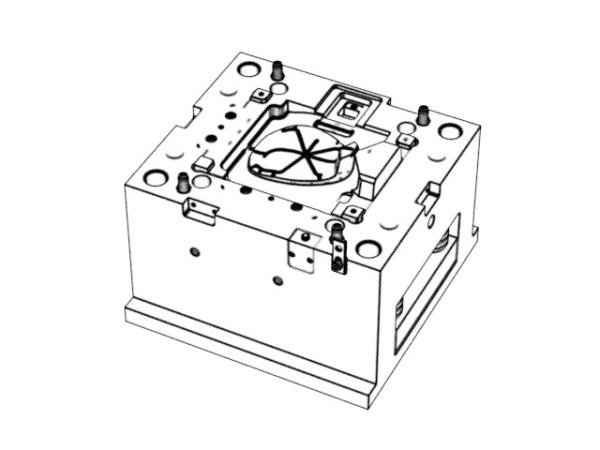

Mold base Standard GCI3540.90120100 Standard LKM
Length 400 Width 400 Height 386

Slide Lifter
1 8

Shell (1*1) / Cold runner / Two-plates mold No.19014

The net weight of mold is 390kg; the IMM tonnage is 180T; the part material is PC; the part size is

130.92 X 165.60 X 62.06mm, and the net weight of part is about 10g

The mold is developed by Chitwing (designed and manufactured)

Shell (1*1) / Cold runner / Two-plates mold No.19014Shell (1*1) / Cold runner / Two-plates mold No.19014

Surface finish Mirror EDM VDI 10#
Steel of cavity & core Harden (1*1/S136)

Shell (1*1) / Cold runner / Two-plates mold No.19014

According to the cost-effective requirement and the demand for mass development at low cost,

the mold is designed with two-plates structure, side gate (pin point gate turns to side gate).

A surface mirror EDM with VDI 10#, and harden the cavity and core, so that the mold has

smoother surface, higher hardness, and better anti-wearing performance, a tool life up to

500K shots, short cycle time and minimized cold slug to meet the needs of mass production

Display diagram

Shell (1*1) / Cold runner / Two-plates mold No.19014Shell (1*1) / Cold runner / Two-plates mold No.19014Shell (1*1) / Cold runner / Two-plates mold No.19014Shell (1*1) / Cold runner / Two-plates mold No.19014
