Specifications
Brand Name :
Chitwing
Model Number :
Camera No.CWM23058
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
320.000 X 350.000 X 316.000
IMM Tonnage :
180T
Mold Weight :
222kg
Runner :
Hot Sprue Cold Runner
Mould life :
≥500000 shots
Mould base :
LKM
Mould material :
Harden（1*4/S136）
Surface treatment :
Polishing
Design software :
3D-UG 4.0/ 2D-CAD
Description

Transparent glasses middle bracket (1*2)

No.23058

[Mold base]: FCI2735 609080
[Size]: L 320mm X W 350mm X H 316mm
[Standard]: LKM		 Slide Lifter Net weight
5 2 222kg

OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058

☆ [IMM tonnage]: 180T

☆ [Injection/Runner Type]: Cold Runner

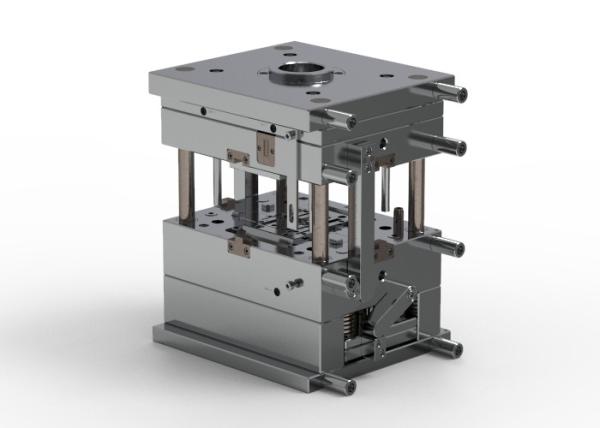

☆ [Type]: Three-plates mold

OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058

Surface finish

Improve the mold surface glossiness and reduce pits,

so that the molded parts have smooth surface,

precise details, w/o sticking with the mold
A surface VDI24 etch
A surface polished to 800# sandpaper
Steel of cavity: harden with 1*2/S136

Improve the mode hardness, anti-wearing and

anti-corrosion performance, and has a tool life up to

500k shots

Mold steel:

harden with 1*2/S136

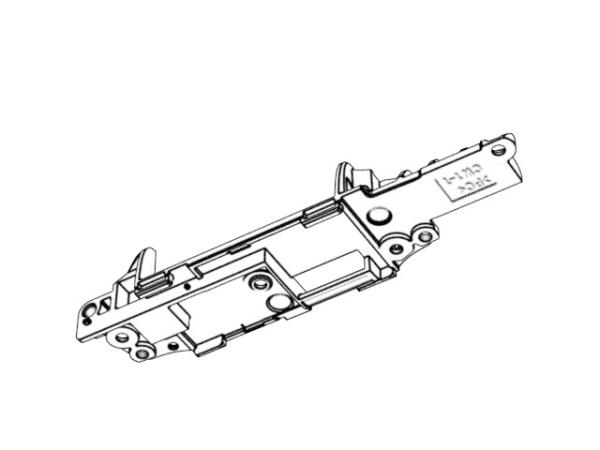

☆ [Part material]: PC
☆ [Part weight]: 1.5g
☆ [Part size]: 16.20 X 66.25 X 11.50mm

OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058

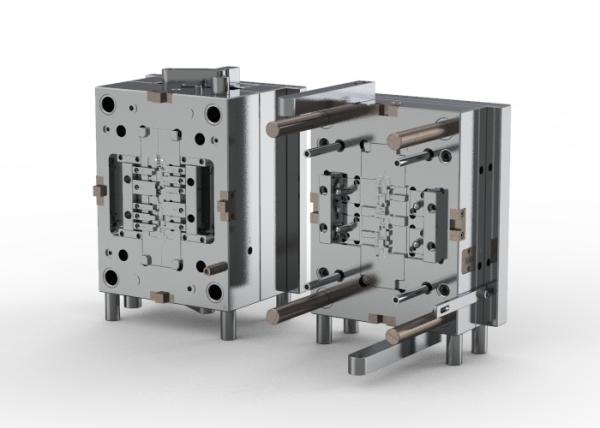

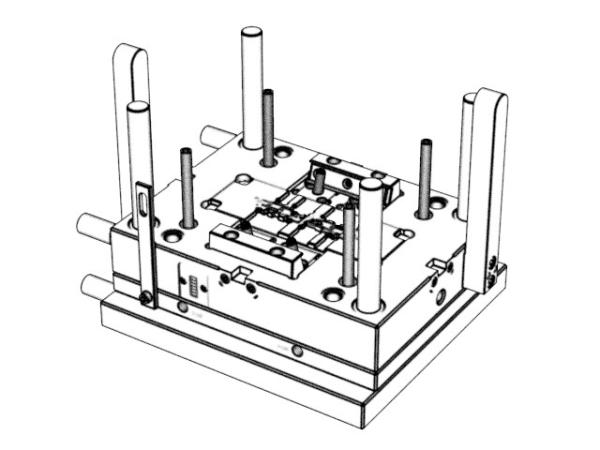

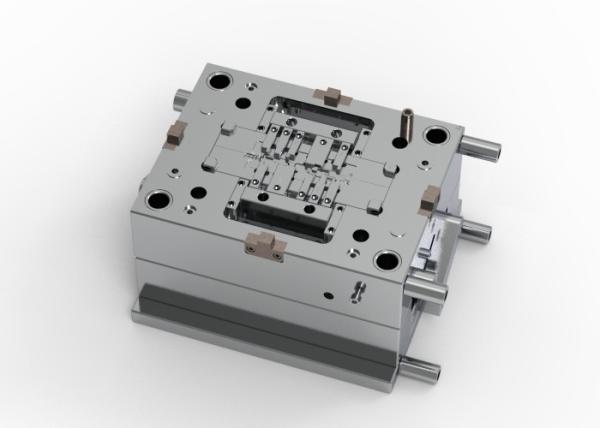

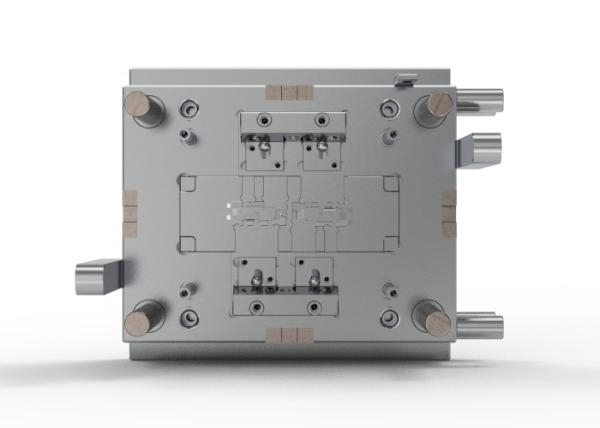

Display diagram

OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058OEM / ODM ：Precision Machining Molds / Transparent glasses middle bracket (1*2) No.23058
