Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400 X 500 X 511
IMM Tonnage :
110T
Mold Weight :
611kg
Type :
Three-plates mold
Standard :
LKM
Surface finish :
VDI27# (Makino)/VDI18# (Makino)
Design software :
3D-UG 4.0/ 2D-CAD
Description

Transparent Front Housing (1*1)

No.22724

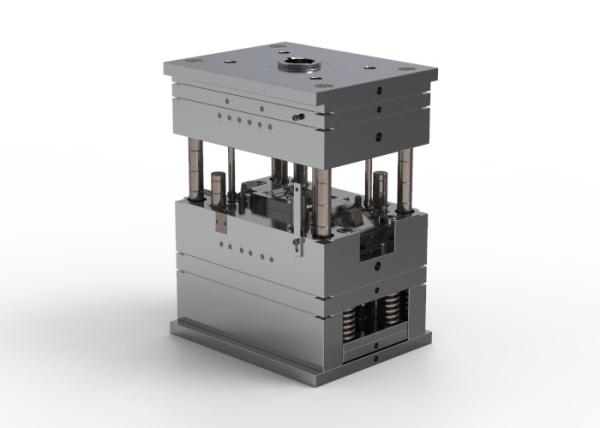

The mold size is 400 X 500 X 511mm. The part material is PC+ABS. The mold is designed with

cold runner,harden cavity and core with 1*1/S136, and the tool life is up to 500k shots. Partial

surfaces EDM withVDI18# (Makino), and the internal surface EDM with VDI27# (Makino).

Mold features: two sliders

OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724

Type Three-plates mold
Gate Pin point gate

OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724

OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724

The mold weight is 611kg; the IMM tonnage is 110T;

the part weight is 20g, and the part size is154.34 X 45.23 X 58.10mm

Display diagram

OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724OEM / ODM ： ABS Injection Molding & Transparent Front Housing (1*1) No.22724
