Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
450 X 656 X 500
IMM Tonnage :
350T
Mold Weight :
952KG
Standard :
LKM
Gate :
Side gate
Features :
6 Slide+6 Lifter
Injection Runner System :
Hot runner
Design software :
3D:UG 4.0, 2D:CAD
Part material :
PC+ABS
Part weight :
52g
Description

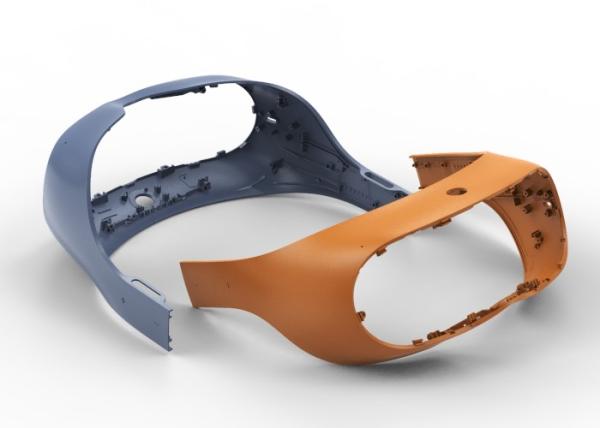

AR middle frame (1*1)

No.25183

Length Width Height

Custom mold base

P/N: GCI4050.A = 180

B = 200 C = 180
450 656 500

Standard

LKM

 Net weight
952kg

OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183

Gate
Side gate
Slide Lifter
6 6

Injection/runner

type

Hot

runner

OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183

Part material Part weight/size IMM tonnage: 350T
PC+ABS 52g / 197.61*85.34*160.63mm

OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183

From the aspects of rationality, economy and cost-effective requirements, the mold is designed with custom mold base, 6 slide+6 lifters, three-plates mold structure and hot channel flow system, so that it has short cycle time, good molding effect, mo loss of materials, saving material and time cost; A surface EDM with YS20020, high glossiness, The mold parts have smooth surface w/o flow marks and gas marks, uniform thickness, and aesthetic appearance

OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183

Surface finish Steel of cavity and core
A surface texture: YS20020, high gloss Harden (1*1/S136)

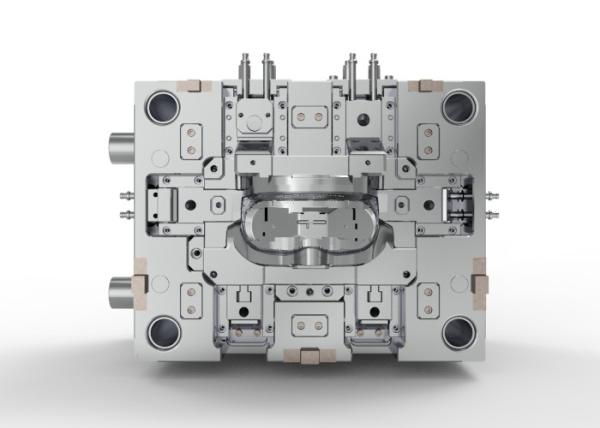

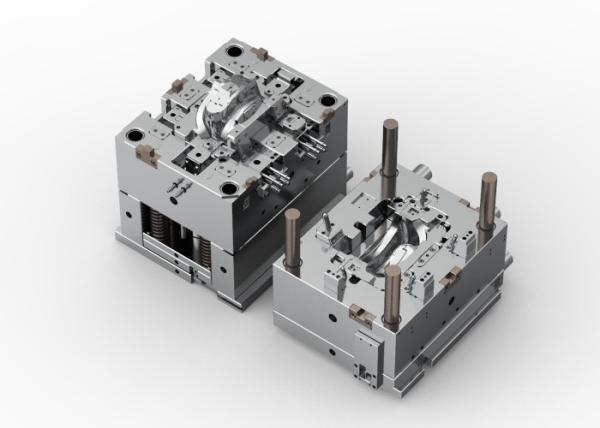

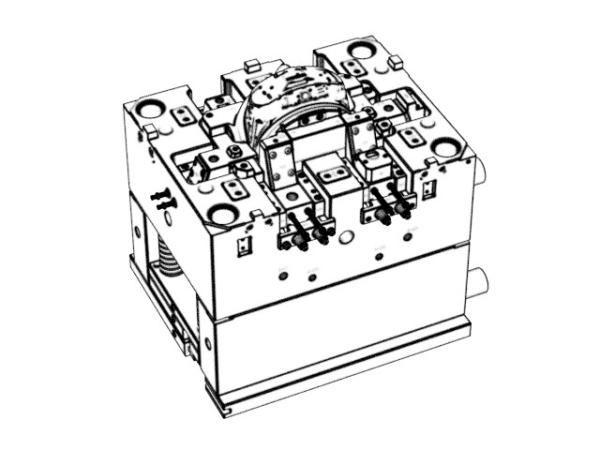

Display diagram

OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183OEM / ODM : Custom Precision Machining Molds / AR middle frame (1*1) No.25183
