Specifications
Brand Name :
Chitwing
Model Number :
Mobile Phone
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
(L) 300*(W) 300*(H) 316
IMM Tonnage :
90T
Mold Weight :
172.76kg
Steel of cavity :
Harden with 1*2/S136
Steel of core :
Harden with 1*2/S136
Part material :
PC
Part size :
67.15*55.27*3.65mm
Part weight :
4.5g
Design software :
3D:UG 4.0, 2D:CAD
Structure :
Fixed Cavity，Movable Side，Runner Stripper Plate，runner plate
Description

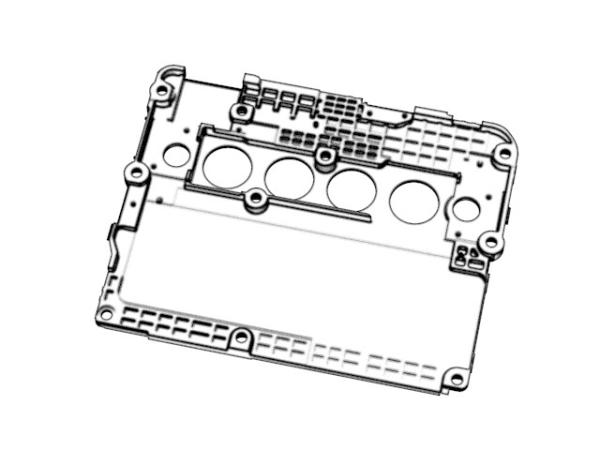

Antenna holder (1*2)

No.22677

Size 300 X 300 X 316(mm) Standard
Mold weight 172.76KG LKM
★ Tool life > 500k shots
★ IMM tonnage: 90T
★ Pin point gate
★ Three-plates mold

Antenna holder (1*2) / Three-plates mold / hot sprue No.22677

The mold is made of high quality steel billet, with surface EDM with VDI 24#, thin EDM marks and semi-gloss finish, w/o machining marks; harden the cavity and core with 1*2/S136; through ESR processing, the mold has pure and fine texture, with good mechanical performance and high polishability.

Antenna holder (1*2) / Three-plates mold / hot sprue No.22677

Injection type Cold runner
Runner type

Antenna holder (1*2) / Three-plates mold / hot sprue No.22677

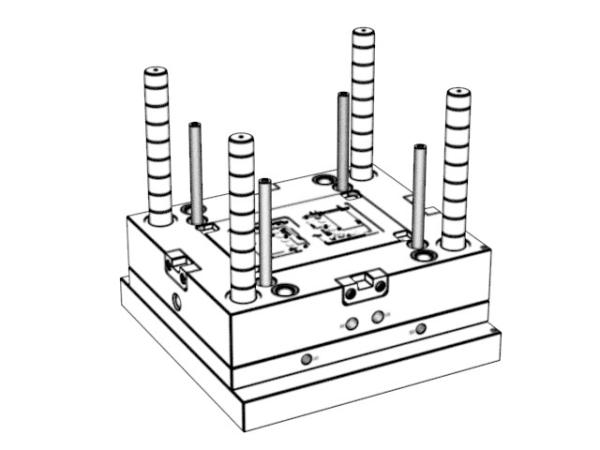

Display diagram

Antenna holder (1*2) / Three-plates mold / hot sprue No.22677Antenna holder (1*2) / Three-plates mold / hot sprue No.22677Antenna holder (1*2) / Three-plates mold / hot sprue No.22677Antenna holder (1*2) / Three-plates mold / hot sprue No.22677
