Specifications
Brand Name :
Chitwing
Model Number :
Mobile Phone
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
300.000 X 300.000 X 281.000
IMM Tonnage :
110T
Mold Weight :
152kg
Standard :
LKM
Mold base P/N :
CI2530 609080
Design software :
3D:UG 4.0, 2D:CAD
Mould life :
≥500000 shots
Part material :
PC
Type :
Two-plates mold
Features :
13 lifters
Description

Transparent Clamshell

Phone Front Cover (1*1)

No.21869

Part details:

Mold size: 300X300X281

Mold weight: 152kg
Mold base P/N: CI2530 609080
Standard: LKM

 IMM Tonnage: 110T
Type: Two-plates mold
Gate: Submarine gate
Tool life: 500K shots		 Part material: PC
Part size: 55.6X6.23X103.98mm
Part weight: 8.7g
Features: 13 lifters

Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

Surface finish: A surface EDM with VDI27# to improve the roughness so that the molded

part is more smooth. High glossiness makes the part not stick to the mold, so that the part

can be demoulded smoothly

Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

Steel of cavity & core: Harden (1*2/S136). S136 is a plastic mold steel with excellent

corrosion resistance, excellent partion characteristics, good comprehensive mechanical

property and high polishing performance.

Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

Injection/runner type: Cold runner

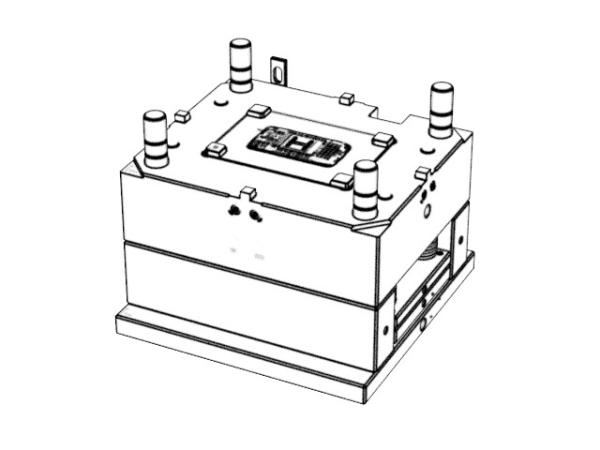

Display diagram

Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869
