Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
300.000 X 450.000 X 356.000
IMM Tonnage :
130T
Mold Weight :
310kg
Injection/runner type :
Hot runner
slide :
1
Part weight :
7.3g
Part size :
43.75 X 85.49 X 14.88mm
Type :
Two-plates mold
Steel of cavity and core :
harden with 1*2/S136
Description

Medical Instrument PN-2055 (1*2)

No.21061

Standard mold base P/N: CI2545.609080.
Size: (L)300 X (W)450 X (H)356mm

Net weight: 310 kg

 LKM standard
Gate: cashew gate
Type: Two-plates mold

Steel of cavity and core:

harden with 1*2/S136
Surface finish:
⑴ MT11010
(2) Partial surfaces polished to SPI-A2
⑶ Partial surfaces polished to SPI-B2

Greatly improve surface hardness,

anti-wearing performance and smoothness;

parts not sticking with the mold, with smooth

surface free of burrs, flow mark and gas

marks, more aesthetic
Injection/runner type: Hot runner Features: 1 slide

Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061

△ IMM tonnage: 130T

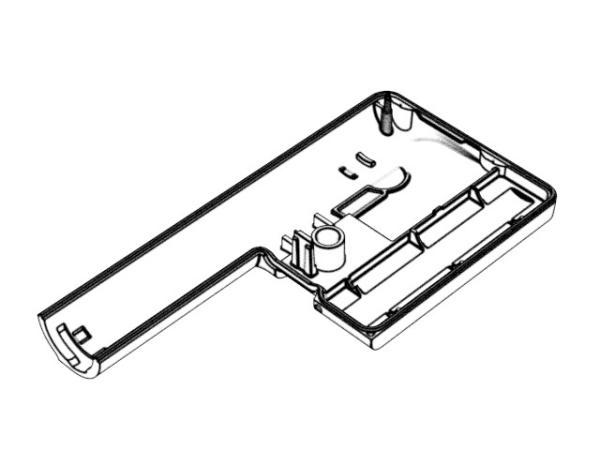

△ Part material: PC/Part weight: 7.3g/Part size: 43.75 X 85.49 X 14.88mm

Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061

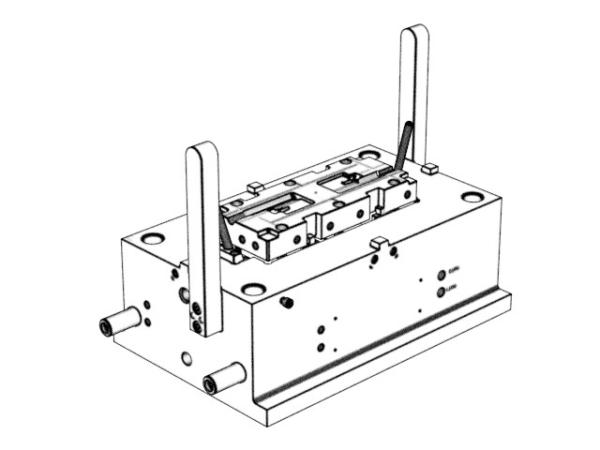

Display diagram

Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061
