Specifications
Brand Name :
Chitwing
Model Number :
Armamentarium
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
250.000 X 250.000 X 251.000
IMM Tonnage :
100T
Mold Weight :
94kg
Type :
2-plates mold
Gate :
Side gate
Part material :
PC
Part weight :
0.05g
Mold type :
Medical Device Molds
Description

Transparent Medical

Instrument PN-1395 (1*4)

No.21066

☆ [Mold size]: 250X250X251mm
☆ [Mold base]: Standard CI2025.507070.
☆ [Standard]: LKM		 ☆ [Type]: Two-plates mold
☆ [Gate]: side gate
☆ [Part material]: PC

OEM/ODM Custom Medical Device Molds / Transparent Medical Instrument PN-1395 (1*4) No.21066OEM/ODM Custom Medical Device Molds / Transparent Medical Instrument PN-1395 (1*4) No.21066

☆ [Weight]: 0.05g

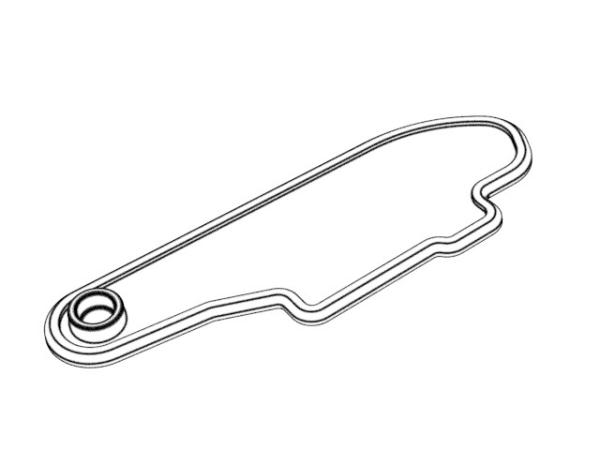

☆ [Part size]: 7.33 X 21.44 X 1.11 mm

☆ [Injection/Runner Type]: Cold Runner

☆ [Surface finish]: Polished to SPI B-2

OEM/ODM Custom Medical Device Molds / Transparent Medical Instrument PN-1395 (1*4) No.21066

☆ [Steel of cavity and core]: harden with 1*4/S136
☆ [Tool life]: Up to 500k shots
☆ [IMM tonnage]: 100T

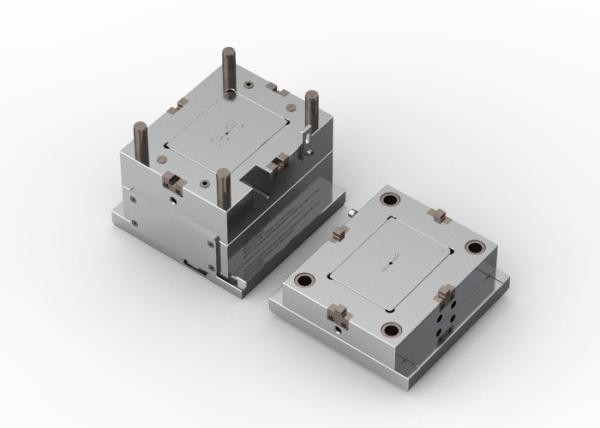

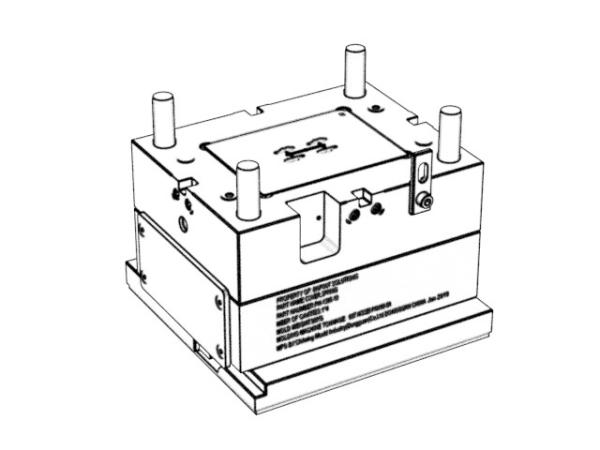

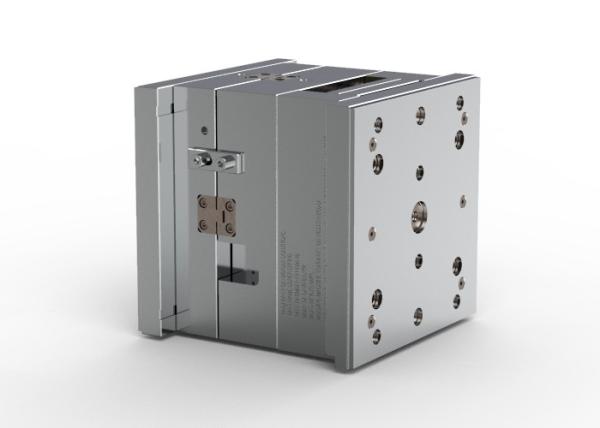

Display diagram
