Specifications
Brand Name :
Chitwing
Model Number :
home automation
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400*400*361mm
IMM Tonnage :
110T
Mold Weight :
362.63kg
Gate type :
Pin point gate
Lifter :
2 in each cavity
Steel of cavity :
Harden with S136
Steel of core :
Harden with S136
Tool life :
up to 500k shots
Injection/runner system :
Hot sprue / Cold runner
Formation method :
injection moulding
Custom Mold Manufacturing :
Chitwing
Description

Transparent BOX bracket (1*8)

No.24628

This is a three-plates mold with pin point gate, self-degating, high injection pressure; fit 110T machine; 2 lifters in each cavity, can mold 8 parts simultaneously, meeting the automated production requirements

OEM/ODM:Transparent BOX bracket (1*8) / Cold runner / Three-plates mold No.24628

The mold adopts LKM standard, a general plastic mold standard in China; harden the cavity and core with S136 to improve the anti-wearing and anti-corrosion performance to adapt to complicated working environment without special protection

OEM/ODM:Transparent BOX bracket (1*8) / Cold runner / Three-plates mold No.24628

Mold size (mm) Mold weight (kg) Part size (mm) Part weight (g)
L: 400 H: 361 362.63 L: 70.43 H: 3.28 1.78
W: 400 W: 20.38

OEM/ODM:Transparent BOX bracket (1*8) / Cold runner / Three-plates mold No.24628

☆ Tool life up to 500k shots
☆ Mold surface polished with VDI24# (Makino)
Injection/runner type Cold runner

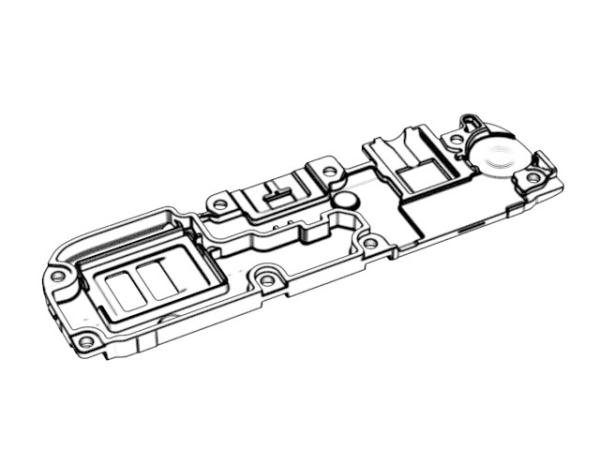

Display diagram
