Specifications
Brand Name :
Chitwing
Model Number :
In-Car Products
Certification :
ISO 9001:2015
Place of Origin :
India
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400.00 X 500.00 X 527.00
IMM Tonnage :
220T
Mold Weight :
708kg
Mould life :
≥500000 shots
Mould base :
LKM
Design software :
3D:UG 4.0, 2D:CAD
Type :
Three-plates mold
Part material :
PC
Part weight :
7.75g
Description

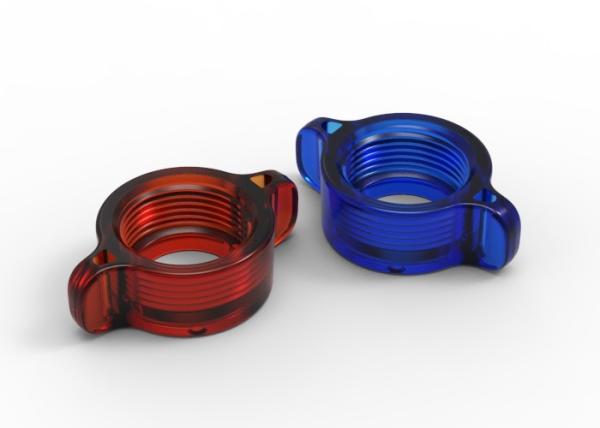

Transparent On-board

Universal Joint Lock Nut(1*4)

No.23915

Brand Chitwing Mold size Mold net weight
Mold base P/N
Length

Width

 Height 708kg
FCI3550 7010070

400

 500 527

☆ [Standard]: LKM ☆ [Type]: Three-plates mold
☆ [Part material]: PC ☆ [Part size]: 30.91x47.60x14.45mm
☆ [Part weight]: 7.75g ☆ [Gate]: Pin point gate
☆ [Injection/runner type]: Hot runner ☆ [IMM Tonnage]: 220T

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915

★ Surface finish ★ Steel of cavity & core
A surface EDM with VDI24# Harden (1*4/S136)

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915

Injection /

runner type:

This is a hot runner mold, no material loss of runner, with stable molding

quality and low residual stress and warpage. Can meet requirement of

mass production quality, save material and labor cost.
Hot runner

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915

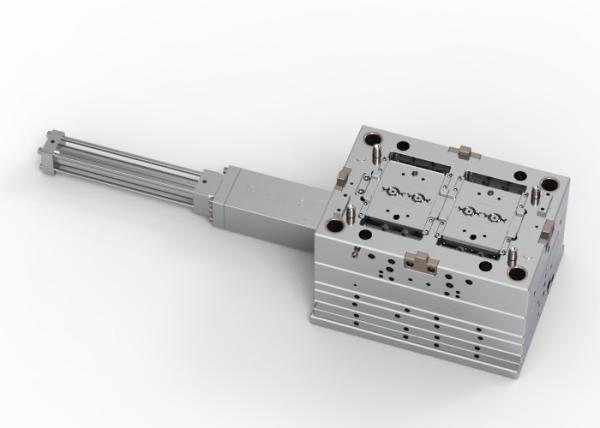

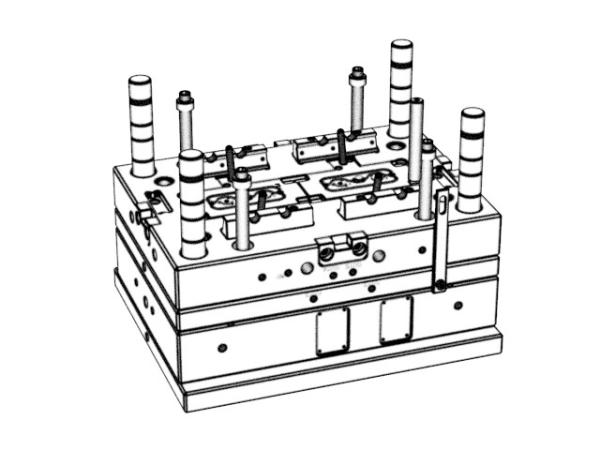

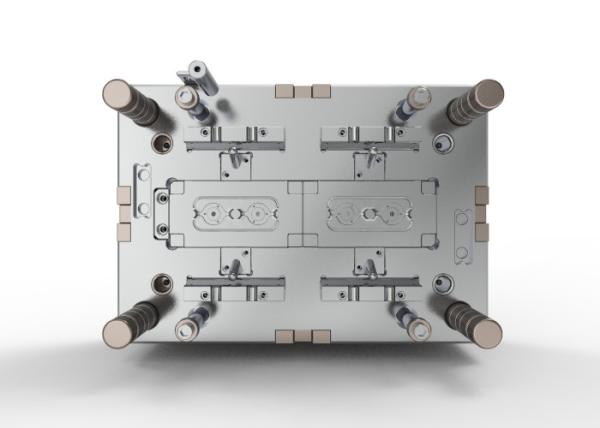

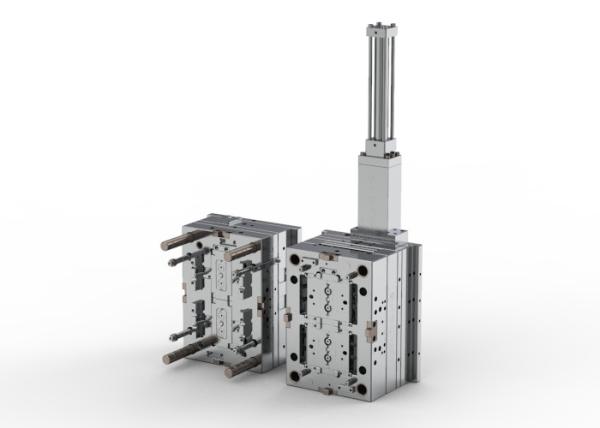

Display diagram

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915
