Specifications
Brand Name :
Chitwing
Model Number :
Mobile Phone
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
name :
AD
IMM Tonnage :
110T
Mold Weight :
418kg
Tool life :
500K shots
Gate :
Pin point gate | The pin point gate turns to the side gate
Type :
Three-plates mold
Mold base P/N :
DDI3540 70100100
Slide :
7
Lifter :
2
Standard :
LKM
Part material :
PC + 10% GF
Description

Clamshell Phone Back Cover (1*1)

No.21870

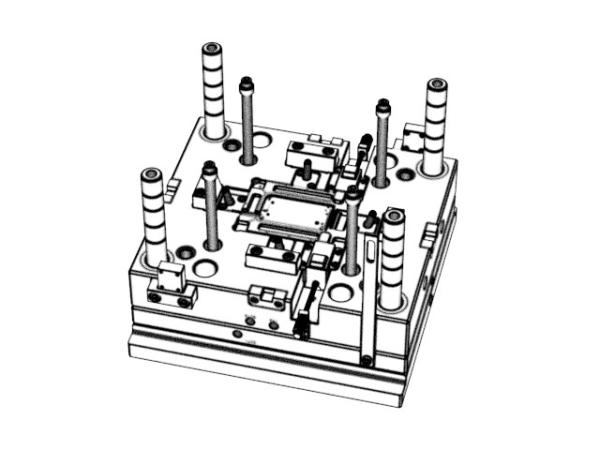

Mold size: 400x400x426
Mold base P/N: DDI3540 70100100
Gate: Pin point gate | The pin point gate turns to the side gate
Tool life: 500K shots

Type

 Slide
Three-plates mold 7
Standard Lifter
LKM 2

Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

Mold weight: 418kg
IMM Tonnage: 110T

Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

Part material

PC + 10% GF | Excellent impact performance, good

toughness, excellent heat resistance, not easy to

occur thermal deformation, less surface fiber mark,

uniform distribution of glass fiber, good painting

performance, and low defective rate of painting.

 Part weight
4.8g

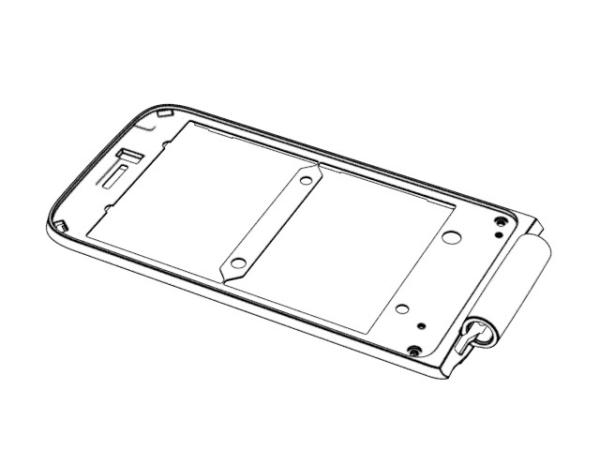

Part size
55.51X11.20X107.96mm

Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870

Surface finish:
A surface EDM with VDI27# to improve the roughness, and the molded part has a smoother surface

Steel of

cavity & core:

Harden with S136, with good comprehensive mechanical

property, high polishing performance, high hardness,

anti-wearing, anti-corrosion.
Harden (1*2/S136)

Injection/runner type: Cold runner

Display diagram

Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870Clamshell Phone Back Cover (1*1) / Cold runner / Three-plates mold No.21870
