Specifications
Brand Name :
Chitwing
Model Number :
Phone Case
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
name :
AD
IMM Tonnage :
140T
Mold Weight :
470kg
Part material :
TPE
Part weight :
10g
Surface finish :
Polished to SPI-A1
Gate :
Side gate
Standard :
LKM
Mold base :
Custom mold base
Description

Middle frame (1*1)

No.22448

The mold was developed by Chitwing (designed and manufactured). It is designed with a side gate

and a custom mold base; the pin point gate turns to the side gate. The tool life is up to 50 K shots.

Mold good fitted and has good anti-fatigue performance, and meets the LKM standard.

Middle frame (1*1) / Cold runner / Three-plates mold No.22448

Type Three-plates mold
Injection/runner type Cold runner
Cavity Harden
Core Harden

Part ① Material TPE
② Weight 10g
③ Size

150.4X 78.5X 11.8mm

Middle frame (1*1) / Cold runner / Three-plates mold No.22448

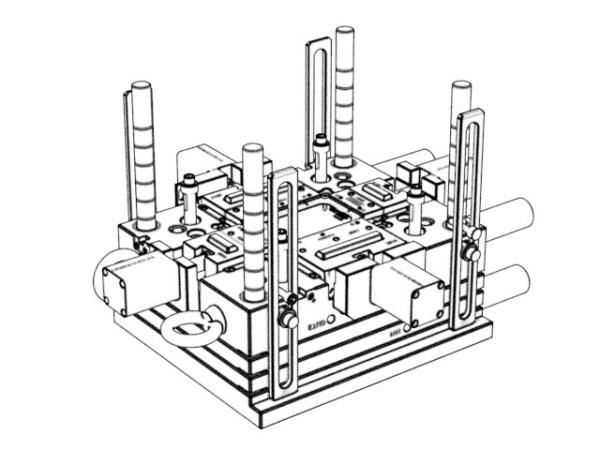

The mold size is 400 X 450 X 426mm (net weight 470 kg); fit 140T machine. The mold surface is

polished to A1, with 4 sliders (cylinders), more scientific design and shorter cycle time.

Middle frame (1*1) / Cold runner / Three-plates mold No.22448

Display diagram

Middle frame (1*1) / Cold runner / Three-plates mold No.22448Middle frame (1*1) / Cold runner / Three-plates mold No.22448Middle frame (1*1) / Cold runner / Three-plates mold No.22448Middle frame (1*1) / Cold runner / Three-plates mold No.22448
