Specifications
Brand Name :
Chitwing
Model Number :
In-Car Products
Certification :
ISO 9001:2015
Place of Origin :
India
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
300 X 300 X 336mm
IMM Tonnage :
130（T）
Mold Weight :
191 kg
Mould life :
500000 shots
Mould base :
LKM
Design software :
(3D)UG 4.0/ (2D）CAD

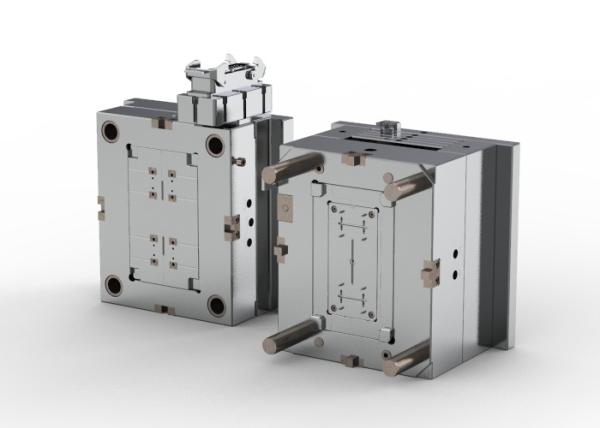

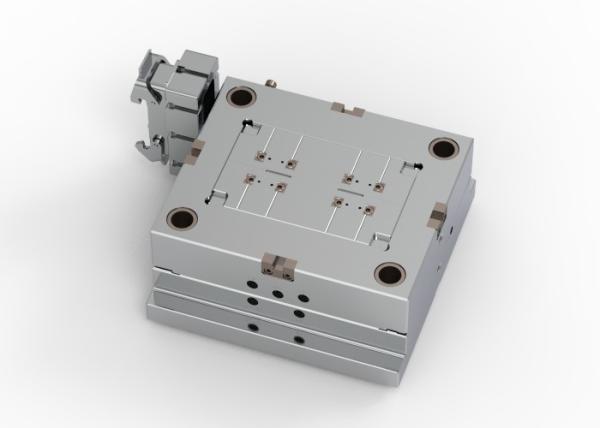

Description

Transparent On-board Foot Rest Ball (1*4)

No.23916

Mold base P/N: Custom CI2530 659090.

★ Mold size: 300x300x336
★ Standard: LKM
★ Type: two-plate mold
★ Tool life: 500K shots		 Mold net weight
191kg
IMM Tonnage
130T

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

Gate: horn gate

The gate is hidden on secondary surface of the core, and it is invisible after the product

is assembled.
Part material: POM

It has high mechanical strength and rigidity, strong anti-corrosion and repeated impact

resistance, good recoverability, self-lubricating property and good anti-wearing

performance

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

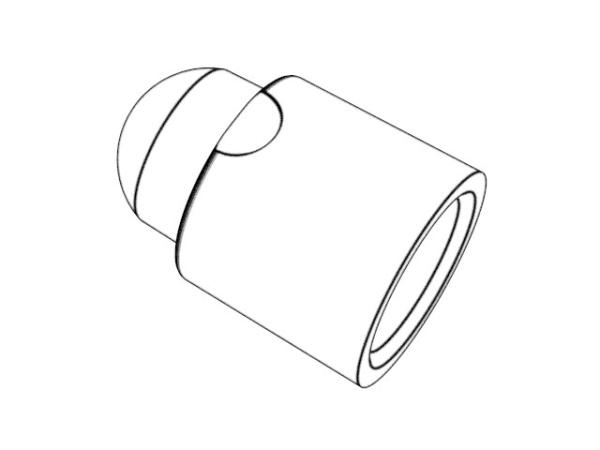

Part size/weight: 5.20 X 5.20 X 7.45mm/0.07g
Surface finish: Inner surface EDM with SPI-B2

Increase the mold glossiness, w/o pits and scratches, so that the molded part is smooth

and clean, w/o sticking with the mold.
Steel of cavity & core: Harden (1*4/S136)

The mold has higher hardness and brittleness, with good anti-wearing and anti-corrosion

performance, higher stability and longer tool life.
Injection/runner type: Hot runner

The mold is designed with hot runner, so that material in the POM tube is uniformly heated

and has uniform density to produce parts with uniform high quality, with short cycle time,

w/o flow marks and gas marks

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

Display diagram

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916
