Specifications
Brand Name :
Chitwing
Model Number :
Scanning Pen
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
250 X 250 X 241
IMM Tonnage :
110T
Mold Weight :
88KG
Part weight :
0.2g
Part material :
POM
Mold base :
Standard FCI2530.509080.
Runner :
Cold runner
Mould life :
≥500000 shots
Design software :
3D:UG 4.0, 2D:CAD
Description

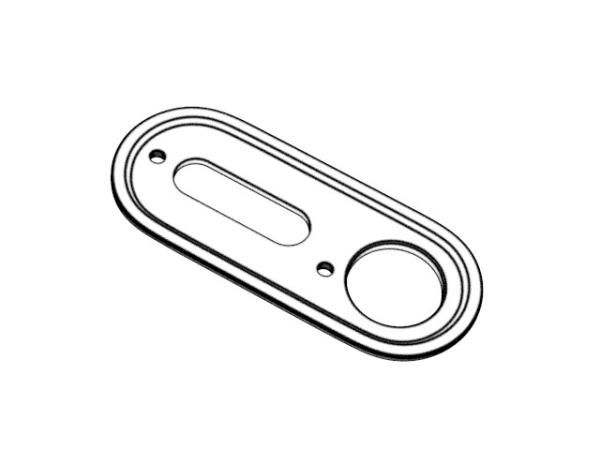

Scan Pen Camera Trim Ring (1*4)

No.24005-B

Description:

Cold runner injection molding offers several distinct advantages over other molding processes. Firstly, it allows for reduced material wastage, as the runner system can be reused for subsequent molding cycles, leading to cost savings and increased efficiency. Additionally, the use of a cold runner system enables better control over the molding process, resulting in improved part quality and consistency. This is particularly beneficial for high-precision molding applications where tight tolerances are required. Furthermore, the cold runner design facilitates easier color changes and material transitions, making it a versatile option for manufacturers with diverse production needs. Overall, the Cold Runner Injection Molding process stands out for its cost-effectiveness, precision, and flexibility, making it a preferred choice for many industrial applications.


Application:

Smart doorbell
Consumer Electronics
plastic shell
plastic accessory


Features:

Mold base Standard FCI2530.509080.
Mold size 250 X 250 X 241mm
Net weight 88kg
Tool life 500K shots
Features Make a plating bracke
Fit 110T machine

The part material is POM, the part size is 33.65 * 2.26 * 14.52mm,

and the part net weight is only 0.2g.

This is a three-plates mold designed with LKM standard, the pin point gate turns to the side gate;

the sprue bushing is set in center of mold base; the molded part has stable high quality and needs

no post-processing, greatly reducing labor costs. A surface polished to 600# sandpaper, and

the secondary surface EDM with Charmilles VDI21#, with smooth cavity surface. Harden the

cavity and core with 1*4/S136 to have higher hardness and anti-wearing performance. Smooth

runner and stable cavity pressure ensure the molded part has smooth surface and clear details

w/o burrs


Advantage:

Our "Cold Runner Injection Molding" molds offer a range of advantages that make them a preferred choice in the industry. Firstly, they are designed to minimize material wastage, leading to cost savings and environmental benefits. The cold runner system allows for efficient reusability, contributing to overall cost-effectiveness. Moreover, the precise control enabled by the cold runner system ensures consistent part quality, making it suitable for high-precision applications. Additionally, the flexibility of the cold runner design allows for easy color changes and material transitions, catering to diverse production needs. Overall, our Cold Runner Injection Molding process is characterized by its efficiency, precision, and adaptability, making it an ideal solution for various industrial applications.

OEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-BOEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-BOEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-B

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-BOEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-BOEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-BOEM / ODM ： Cold Runner Injection Molding & Scan Pen Camera Trim Ring (1*4) No.24005-B
