Specifications
Brand Name :
Chitwing
Model Number :
Router
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Product material :
PC+ABS
IMM Tonnage :
180T
Size :
580X 600 X 560.2mm
Mold Weight :
1600kg
Gate :
Pin point gate+Side gate
Part material :
PC+ABS
Mould material :
S136
Description

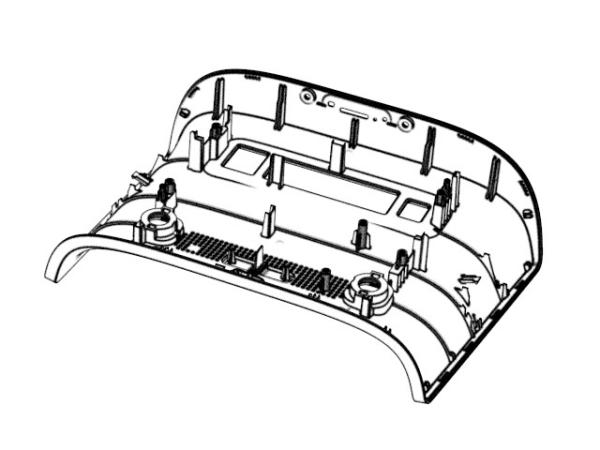

Router Bottom Housing (1*1)

No.23892-C

Description:

Our company takes great pride in the creation of single cavity injection molds that exemplify precision and sophistication. Each mold serves as a testament to our unwavering dedication to meeting the precise requirements of our clients. By utilizing state-of-the-art CAD/CAM software and CNC machining technology, we guarantee that every mold delivers unmatched accuracy and consistency throughout the molding process. Our experienced team of engineers and technicians meticulously guide each mold through every stage of production, from its initial design to the final inspection, ensuring that our rigorous quality standards are consistently maintained. The single cavity injection molds we manufacture are meticulously customized to enhance efficiency and precision in the injection molding process, resulting in the production of exceptional quality finished products.


Application:

Router
Everyday household items
Electronics for communication, computing, and connectivity
Accurate and intricate casing.


Features:

Mold base Part Number: DCI5060 120150120
Standard: LKM
Dimensions: 580X 600 X 560.2 mm
Gate: Pin Point gate+Side gate
Type: Three-plates mold
The mold is equipped with a pin point gate and side gate, resulting in low injection pressure loss. It is easy to de-gate, offers flexibility in filling pattern, and is easy to manufacture.
Material: PC+ABS
Injection/runner type: Hot runner
This type of runner ensures a short molding cycle time and eliminates material loss from the cold runner. It also offers a high degree of automation and is beneficial for achieving good part cosmetic.
Features: 2x core slides, 4x core angled slides, 10x core tunnel slides, 19x lifters
Surface Finish:
⑴ A surface etch with VDI3400-27#
⑵ A surface EDM with Charmilles VDI3400-18#
Steel of cavity & core: Hardened (1*1/S136)
The hardened steel provides better roughness, hardness, anti-wearing, and anti-corrosion properties.
Mold Net Weight: 1600kg
IMM Tonnage: 180T
Part Net Weight: 74.47g
Part Overall Size: 127.00x182.07x59.79mm.

Advantage:

Our company's injection molds with a single cavity exemplify our unwavering dedication to precision and excellence. With an unwavering focus on intricate details, these molds are meticulously crafted to enhance the injection molding process, guaranteeing that every manufactured product showcases exceptional quality and sophistication. By seamlessly blending form and function, our molds facilitate the production of flawless and consistent parts, reflecting the harmonious integration of technology and craftsmanship. Our relentless pursuit of innovation in mold design ensures that our molds not only meet but surpass industry standards, silently establishing new milestones for performance and dependability.

OEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-C

OEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-COEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-C

OEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-C

Display diagram

OEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-C

OEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-COEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-COEM / ODM ： Router Bottom Housing (1*1) injection mould maker No.23892-C
