Specifications
Brand Name :
Chitwing
Model Number :
Earphone
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
110.000 X 330.000 X 125.000
IMM Tonnage :
60T
Mold Weight :
27.54kg
Standard :
LKM
Type :
Two-plates mold
Slide :
2
Part material :
PA
Gate :
Sub gate
Design software :
<3D:UG 4.0>/ <2D:CAD>
Description

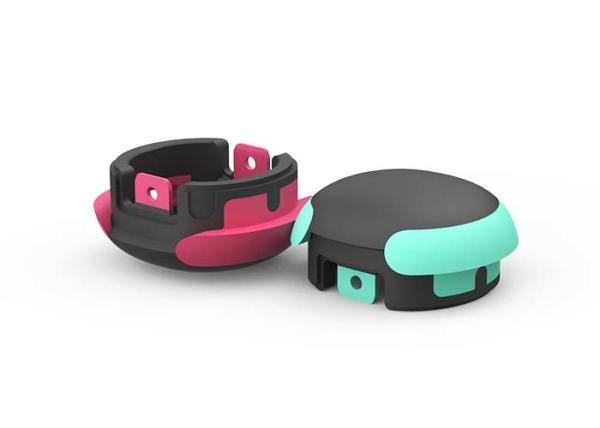

Earphone terminal (1*8)

No.23570-D

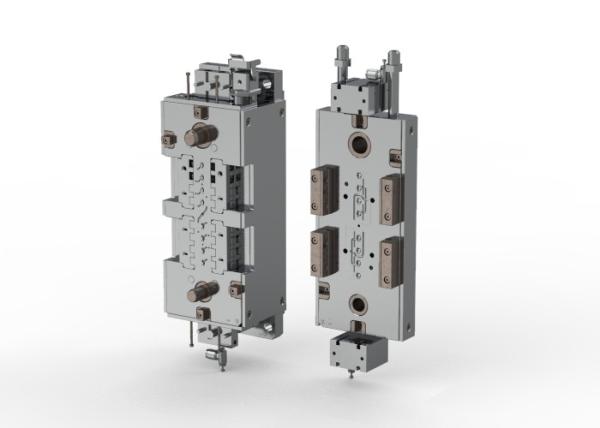

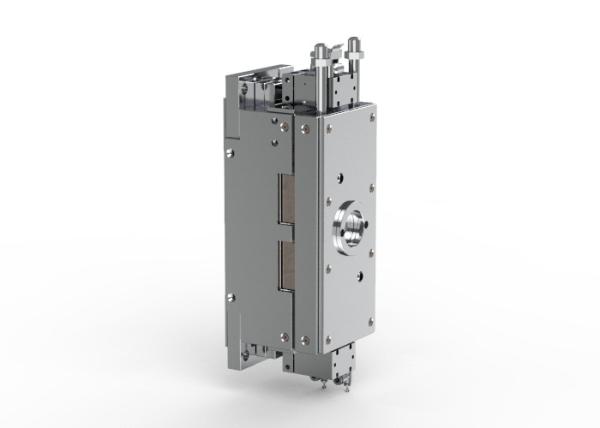

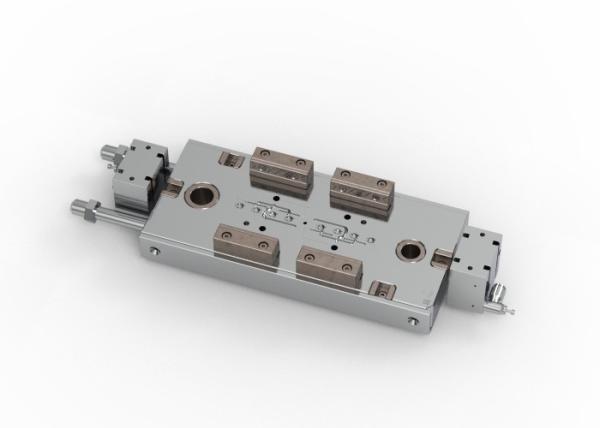

The mold dimensions of 110 X 330 X 125mm, type as a two-plates mold with a standard gate. The LKM sub gate mold has a net weight of 27.54kg, 2 slides, and cavity & core hardened with 1*8/S136. The part material/weight is PA/0.03g, with a part size of 6.21 X 5.61 X 2.91mm.

OEM / ODM Earphone Terminal (1*8) No.23570-D

The IMM Tonnage is 60T. The two-plate mold design features a cold runner and two slides for cost-effectiveness and feasibility. The surface is polished to SPI-A3, hardened for improved smoothness, hardness, anti-wearing, and anti-corrosion properties to prevent sticking of molten PA.

OEM / ODM Earphone Terminal (1*8) No.23570-D

The molded parts exhibit short cycle times, minimized material loss, complete and smooth appearance, low cost, and high quality.

OEM / ODM Earphone Terminal (1*8) No.23570-D

Display diagram

OEM / ODM Earphone Terminal (1*8) No.23570-DOEM / ODM Earphone Terminal (1*8) No.23570-DOEM / ODM Earphone Terminal (1*8) No.23570-DOEM / ODM Earphone Terminal (1*8) No.23570-D
