OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400 X 450 X 429
IMM Tonnage :
110T
Mold Weight :
482kg
Gate :
Pin point gate
Tool life :
500k shots
Features :
2 slides and 18 lifters
Net weight :
482kg
Injection type :
Cold runner
runner type :
Cold runner
Description

POA Transparent Rear Pad (1*1)

No.22729-C

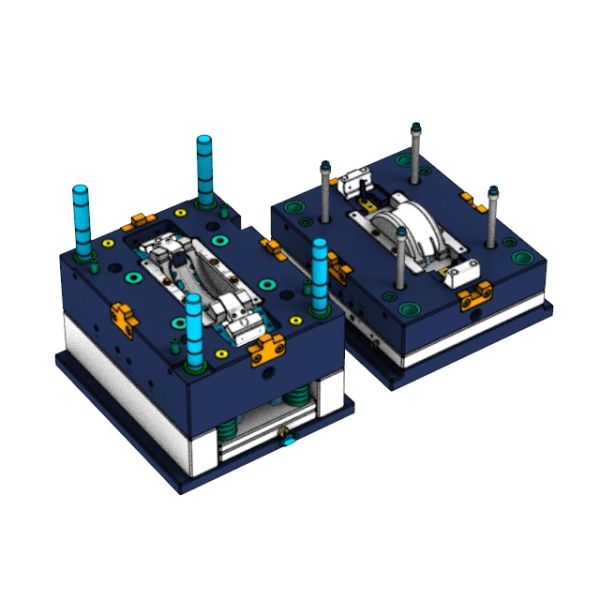

The mold section is produced with an LKM mold base and is structured with a cold runner system. It is etched with MT11010 on the surface, and specific regions are subjected to EDM (Electrical Discharge Machining) using VDI27# (Makino) and LKM standard. The mold measures 400mm in length, 450mm in width, and 429mm in height. A pin point gate is utilized for the mold gate.

OEM / ODM POA Transparent Rear Pad (1*1) No.22729-COEM / ODM POA Transparent Rear Pad (1*1) No.22729-C

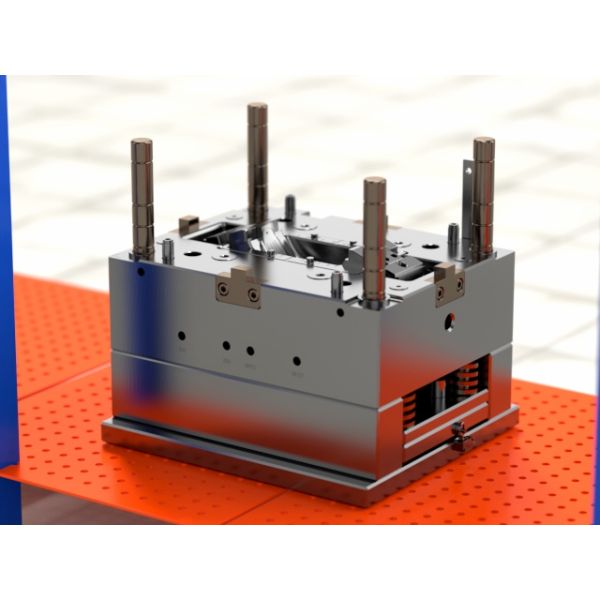

The mold is designed to withstand up to 500,000 shots during its tool life. It is constructed with a three-plates configuration, including a hardened cavity and core composed of S136 steel with a surface hardness exceeding 600HV. Additionally, it is equipped with 2 slides and 18 lifters. The total weight of the mold is 482kg, and it is compatible with an injection molding machine that has a tonnage of 110T.

OEM / ODM POA Transparent Rear Pad (1*1) No.22729-C

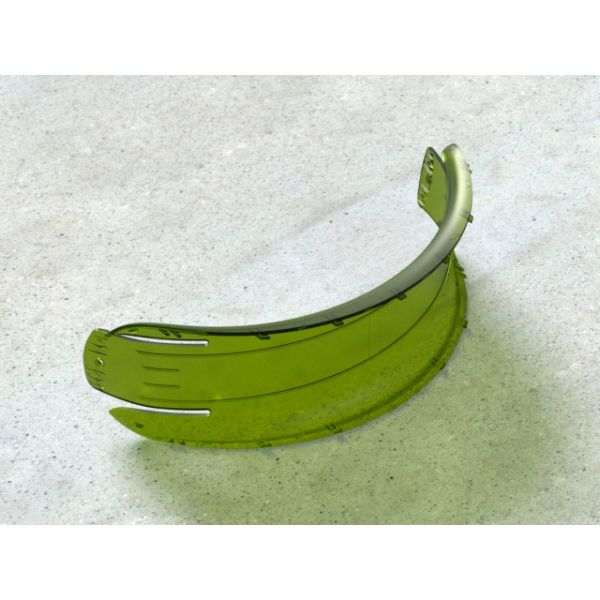

The PC+ABS material is used to manufacture the injection molded components. The injection part weighs 15g and has dimensions of 158.51mm length, 47.92mm width, and 70.83mm height.

Display diagram

OEM / ODM POA Transparent Rear Pad (1*1) No.22729-COEM / ODM POA Transparent Rear Pad (1*1) No.22729-COEM / ODM POA Transparent Rear Pad (1*1) No.22729-COEM / ODM POA Transparent Rear Pad (1*1) No.22729-C
