Specifications
Brand Name :
Chitwing
Model Number :
Router
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
600 X 600 X 776mm
IMM Tonnage :
450(T)
Mold Weight :
2062(KG)
Standard mold base P/N :
CI6060
Gate :
Large pin point gate
Part weight :
240g
Material :
PC+ABS
Type :
Two-plates mold
Description

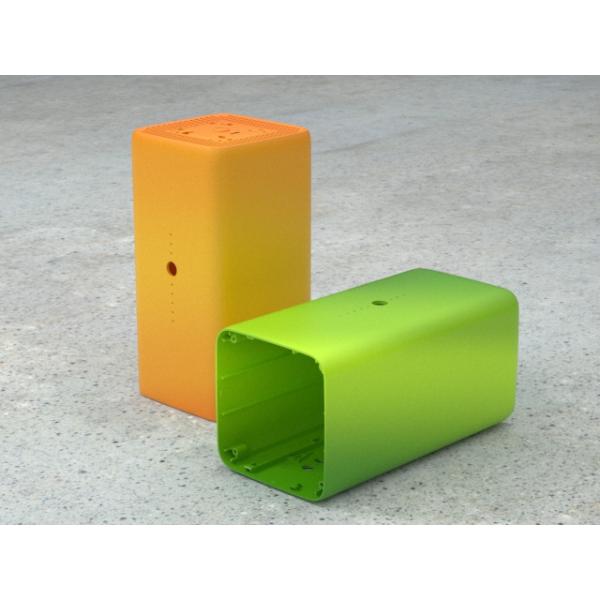

Middle housing (1*1)

No.23394-B

Description:

Our precision cold runner molds are meticulously designed and manufactured using cutting-edge techniques to fulfill the requirements of high precision and efficiency. By incorporating precise runner design and optimized cooling systems, our molds achieve uniform temperature distribution and rapid cooling, resulting in a significant reduction in product defects and production cycles.
Our molds are constructed using high-strength materials and undergo precision machining processes, ensuring long-lasting durability and stability. Our team of experienced engineers offers customized designs tailored to meet specific customer requirements, accompanied by comprehensive technical support and solutions.
Whether it's in the automotive manufacturing, electronic devices, or medical equipment industries, our precision cold runner molds consistently deliver exceptional performance and reliability. This empowers our customers to achieve high-quality production while maximizing cost-effectiveness.

Application:
router
Precision electronic equipment
auto parts
medical accessories
shell

Features:

Runner Cold runner
Gate Large pin point gate
Net weight 2062kg
Size Length:600 x Width:600 x Height:776
Type Two-plates mold
Standard LKM
IMM tonnage 450T
Material PC+ABS
Part size 103x103x205mm
Part weight 240g

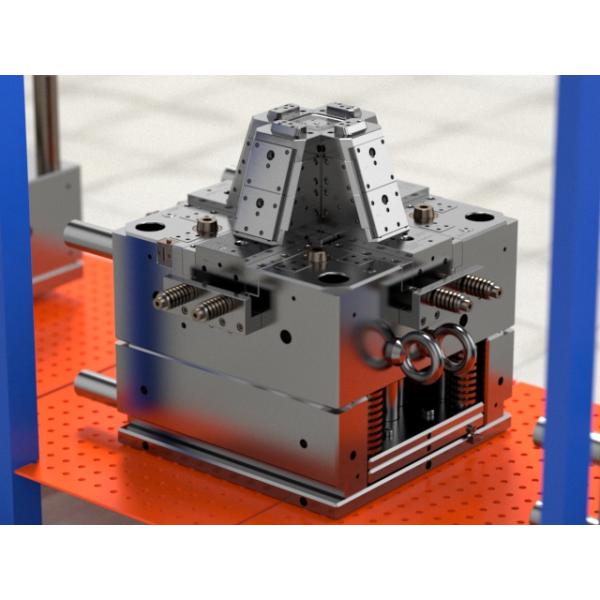

Chitwing utilizes advanced processing technology to develop and manufacture the mold. The mold undergoes a meticulous surface treatment process, including polishing with 800# sandpaper and texturing. The large A surface is subjected to EDM (Electrical Discharge Machining) using VDI27# (Makino), while other large surfaces are EDM processed with VDI30# (Makino). The cavity and core are hardened using 1*1/S136 material, ensuring a hardness level of ≥ 50HRC. The mold surface is meticulously inspected to ensure it is free from defects. Notably, the mold offers smooth ejection, a service life of up to 500k shots, and exceptional cost performance.

Advantage:

We are a publicly traded company that prioritizes delivering exceptional quality and reliability. With advanced production equipment and cutting-edge technology, we have the capability to meet the diverse production requirements of complex molds. Our dedication to excellence motivates us to continuously integrate the latest production equipment and technology, refine our production processes, and improve both our production efficiency and manufacturing capabilities.
To ensure the highest level of quality and reliability, we place significant emphasis on selecting high-quality raw materials. Through meticulous selection of premium-grade raw materials, we guarantee the superior quality and dependability of every product we manufacture.

OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394-B

OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394-B

OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394-B

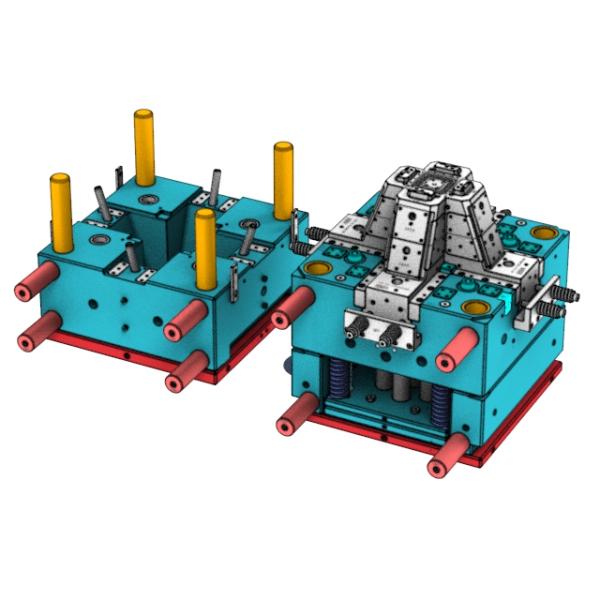

Display diagram
