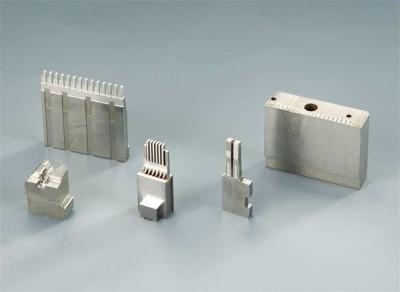

Customized Progressive c Mold Spare Parts Mold Components Tolerance within +/-0.001mm./ precision metal stamping
Customized Progressive c Mold Spare Parts Mold Components Tolerance within +/-0.001mm./ precision metal stamping
Customized Progressive c Mold Spare Parts Mold Components Tolerance within +/-0.001mm./ precision metal stamping
Customized Progressive c Mold Spare Parts Mold Components Tolerance within +/-0.001mm./ precision metal stamping
Customized Progressive c Mold Spare Parts Mold Components Tolerance within +/-0.001mm./ precision metal stamping
Customized Progressive c Mold Spare Parts Mold Components Tolerance within +/-0.001mm./ precision metal stamping
Specifications
Brand Name :
Yansong
Model Number :
XZ-88
Certification :
ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T 50% as deposit 50% before shipment
Supply Ability :
1200-1500 units per month
Delivery Time :
Normally, simple parts, 5-7 days, complicated parts, 7-15 days. According to QTY and the complexity of drawing.
Packaging Details :
Anti-rust oil, PE film covered first, Plastic box, then carton.
Common Material: :
Beryllium Copper,phosphor copper,
Material Brand: :
ASSAB, SAARS, Daido, Hitachi And Bohler Etc.
Application: :
Computer/Mobile/Auto Connector Mold
Main Machining: :
Suface Grinding, EDM
Mold life :
50 Million to 300 Million Times
Sample :
free sample
Application :
Household Product Mold
Process :
Metal Stamping
Description
Product name

Stamping Dies And Punches Tool Maker

Tooling steel material

Depend on product, we help customer to choose the suitable material.
Commonly used material as below:
Carbide(CD650,V3,KD20), ASP-23, ASP-60, S55C---45#55, SKD11.

Steel of mold base

Depend on product, we help customer to choose the suitable material.
Commonly use S45C.

Mould Standard components

HASCO, MISUMI, Meusburger, DME, etc.

Die concept

2-Plate Die, 3-Plate Die, Module Die

Mold life

Depends on the steel material and your requests.
Commonly used:
50 Million to 300 Million Times

Stamping Product

PC Terminal, Power terminal, Press-Fit Terminal, Lead frame, SIM Spring, Connector Shield, Battery, Metal USB shell, custom stamping.

Surface finish

Depends on your requirements.
Commonly: Texture Hatching, EDM Hatching, plating, Polishing, Diamoud Polishing, Mirror Polishing and so on.

Delivery time

Depends on the size and structure.
Normally: 25-30 working days after 50% down payment.

Terms of payment

T/T, L/C, Western Union, D/A, D/P, Paypal.

Machine center

High speed CNC, Wire cutting, EDM, Grinder, Great Grinder, CNC milling, Drilling and milling, Stamping punching machines, injection machine, Inspection.

R&D

1. Drawing design and making for products and mold;
2. Mold drawing revising;
3. Production time and quality control in each machining process. (Our own EPR system).

Production

Pilot Run production and molding production can be provided.

Why cooperate with Dongguan Yansong Automation Technology Co Ltd.

equipment List

High Speed CNC 2 sets
EDM 10 sets,
grinder 30sets,,
wire-cutting EDM 8sets,
and so many other
all machine imported for Japan and China Taiwan.

Product Precision

diamension tolerance ±0.001mm ,
axiality within 0.002mm,
roundness within 0.0015mm,
surfacae roughness within Ra 0.025,
straightness within 0.002

Technique standardAccording to international standards GM,JIS,DIN,AISI,ect. and other national standard


Quality control in Yansong
Good experience and technology in manufacturing mold parts, some engineers have more than 11 years experience in producing various kinds of precision parts, so could offer good technology support to customers
Advanced measurement equipment to make sure all the requirement from our customers will be measurable.100% inspection before shipment.
:(1). Incoming material inspection
(2). Inspection of work-in-progress
(3). Finished product inspection
All of our operations are strictly compliant with ISO 9001: 2008 guidelines
We own CNC machining, 2.5D projector, various height Gage and other testing equipment.

Packaging Details
Customized Machined Sodick EDM Precision Small Core Inserts Of Auto Mould
1. Industrial packaging: PE film+ plastic bag + carton + wooden pallets
2. Commercial packaging: plastic bag+ color box+ carton+ wooden pallets
3. Or As the clients' requirements

FAQ
1. What kind of files can you receive?
We can receive on Pro-E, CAD,PDF and CAXA ect.,

2. How much does the parts cost?
We will check the drawing with requirement carefully, and send our competitive offer according to customer's requirement.

3. Can You Provide free Sample?
Yes, we can provide 1-3 piece free sample for standard parts to customer for testing.according to your drawing
4. Is Yansong factory ?
5. Yes we are factory to produce precision mold

4. How to order?

(a) Please send us drawing or sample(non-standard parts) or series number(standard parts).
We can sign NDA if the file is belongs to intellectual property and confidential.
(b) We evaluate the drawing and requirement immediately.
(c) We try to send the offer at the same day back to customer.
(d) If we both agreed on the offer, for trade rules, we accept 30% Deposit before order, and 70% Balance when shipment is taking.Then we can start manufacturing or sample process.

(e) Our production time usually takes 7 working days,sample process takes 3-5 days. It depends on order quanity and product itself.

(f) We can ship the parts by express,air,sea according to your need

Quality is life, user is god. Please feel free to contact us !
