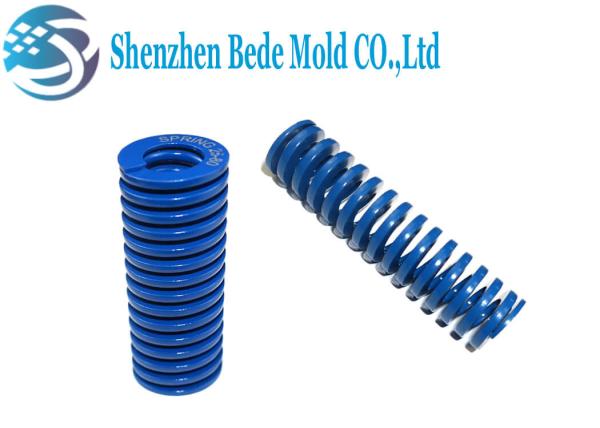

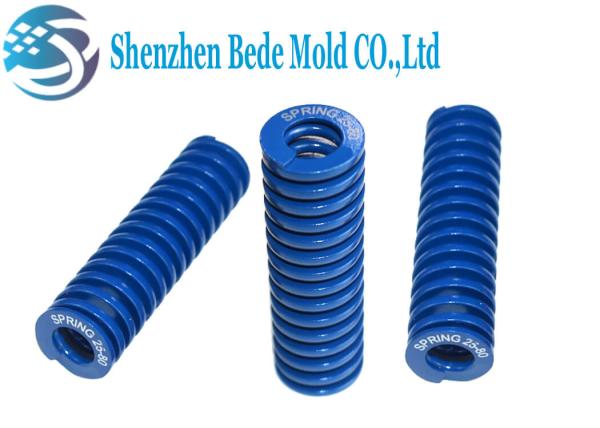

Customized Standard Mold Spring , Medium Load Industrial Coil Springs ISO10243
Customized Standard Mold Spring , Medium Load Industrial Coil Springs ISO10243
Customized Standard Mold Spring , Medium Load Industrial Coil Springs ISO10243
Customized Standard Mold Spring , Medium Load Industrial Coil Springs ISO10243
Specifications
Brand Name :
BD
Model Number :
BD~s0000
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, L/C, D/A, D/P, T/T
Supply Ability :
120000~150000 pieces per month
Delivery Time :
10~15 work days
Packaging Details :
PP bags and wood carton
color :
Blue
material :
chromium alloy steel
Size :
ISO10243 all size
Packing :
PE bags
service life :
Depending on the Compression ratio
Load :
Medium load
Description

Industrial Coil Springs / Mold Springs Medium Duty ISO10243 International Standard for Stamping Die​
ISO 10243 blue color.pdf
Discraption
Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.
The material of die spring is usually chromium alloy steel, because its characteristics of high temperature resistance, rigidity and long service life.
According to ISO10243 standards, the color and load are as follows:

Coloryellow red blueGreen
LoadOverweight loadheavy loadMedium loadlight load

Service life3,000,0001,500,000200,000
Compression ratio 25%30%37.5%



Quick Details
All of our springs are manufactured according to ISO10243 industrial standard, and customized size is welcome.

materialschromium alloy steelSize All Size of ISO10243
colorBlueODM / OEMwelcome


The load = elastic coefficient * compression, please contact us for more information.

Size(mm)Elastic
coefficient(N/mm)		Compressed
length(mm)		Load(N)
Outer diameterInner diameterfree length
321613942.235.01477
402013957.535.02013
502513987.635.0

3066

Customized Standard Mold Spring , Medium Load Industrial Coil Springs ISO10243
Standard Size
We have the following standard sizes of springs in stock, generally can be shipped within 3 working days, if it is customized , delivery time is generally 15-20 days.

Outer diameter * inner diameter / mm

10*5

12.5*6.3

16*8

20*10

25*12.5

32*16

40*20

50*25
Length / mm 25,32,38,44,51,64,76,89,102,115,127,139,152,178,203,254...



Treatment
The following processes are the treatment to ensure product quality.

Pressure treatment:
The spring to do more than three times of pressure treatment, eliminating the internal stress before use, no spring deformation, shorten the breakage and other phenomena.

Strengthened treatment:
Spring surface strengthened shot peening treatment, improve the strength of stress concentration point, prolong the fatigue life of the spring.

Surface treatment:
Adopt advanced color electrophoretic paint process, conform to European SOS standard, make the product paint surface even, adhesion is stronger.

Attention

Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
1.Maintaining initial compression more than 1mm
2. Prevent any other articles from the middle of the spring
3. Keep vertical compression to prevent bending
