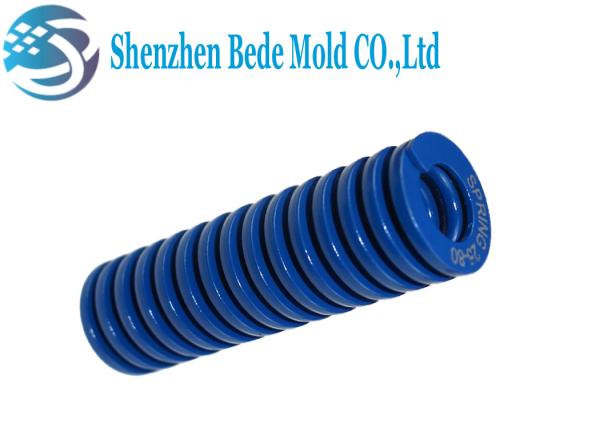

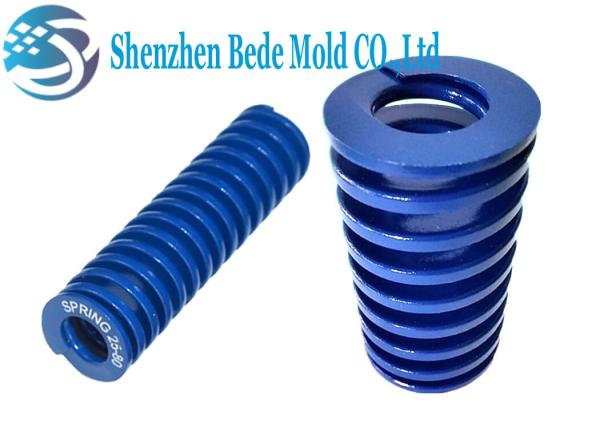

Rectangle Blue Die Springs / Light Duty Die Set Springs Japan JIS Standard
Rectangle Blue Die Springs / Light Duty Die Set Springs Japan JIS Standard
Rectangle Blue Die Springs / Light Duty Die Set Springs Japan JIS Standard
Rectangle Blue Die Springs / Light Duty Die Set Springs Japan JIS Standard
Specifications
Brand Name :
BD
Model Number :
BD~s0000
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, L/C, D/A, D/P, T/T
Supply Ability :
120000~150000 pieces per month
Delivery Time :
10~15 work days
Packaging Details :
PP bags and wood carton
color :
blue
material :
chromium alloy steel
Size :
JIS Japan
Packing :
PE bags or customized
service life :
Depending on the Compression ratio
Load :
light
Description

Rectangle Spring / Light Duty Die Dprings / Die Set Springs Blue Color JIS Standard

Discraption

Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

The material of die spring is usually chromium alloy steel, because its characteristics of high temperature resistance, rigidity and long service life.

According to JIS standards, the color and load are as follows:

Load Compression Ratio % Color
Light 32 36 40 Blue
Medium 25.6 28.8 32 Red
Heavy 19.2

21.6
 24 Green
Overweight 16 18 20 Brown

Life length /

Compression times

 1,000,000 500,000 300,000

According to ISO10243 standards, the color and load are as follows:

Color yellow red blue Green
Load Overweight load heavy load Medium load light load

Rectangle Blue Die Springs / Light Duty Die Set Springs Japan JIS Standard

Compression and load

The maximum compression of this series of springs is 48% of the free length.

The load = elastic coefficient * compression, please contact us for more information.

Size(mm) Elastic
coefficient(KgF/mm)		 Compressed
length(mm)		 Load(Kgf)
Outer diameter Inner diameter free length
16 8 80 1.99 25.6 51
25 12.5 80 4.88 23.0 131
18 9 80 2.54 23.0 58

Quick Details

All of our springs are manufactured according to Japan JIS industrial standard, and customized size is welcome.

materials chromium alloy steel Size Japan JIS
color Blue ODM / OEM welcome

Standard Size

We have the following standard sizes of springs in stock, generally can be shipped within 3 working days, if it is customized , delivery time is generally 15-20 days.

Outer diameter * inner diameter / mm

10*5

12.5*6.3

16*8

20*10

25*12.5

32*16

40*20

 50*25
Length / mm 25,32,38,44,51,64,76,89,102,115,127,139,152,178,203,254...

Treatment

The following processes are the treatment to ensure product quality.

Pressure treatment:

The spring to do more than three times of pressure treatment, eliminating the internal stress before use, no spring deformation, shorten the breakage and other phenomena.

Strengthened treatment:

Spring surface strengthened shot peening treatment, improve the strength of stress concentration point, prolong the fatigue life of the spring.

Surface treatment:

Adopt advanced color electrophoretic paint process, conform to European SOS standard, make the product paint surface even, adhesion is stronger.

Attention

Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
1.Maintaining initial compression more than 1mm
2. Prevent any other articles from the middle of the spring
3. Keep vertical compression to prevent bending
