GCr15 Materials DME Standard Mold Leader Pins with Oil Groove for Injection Mold and Dies​

Description

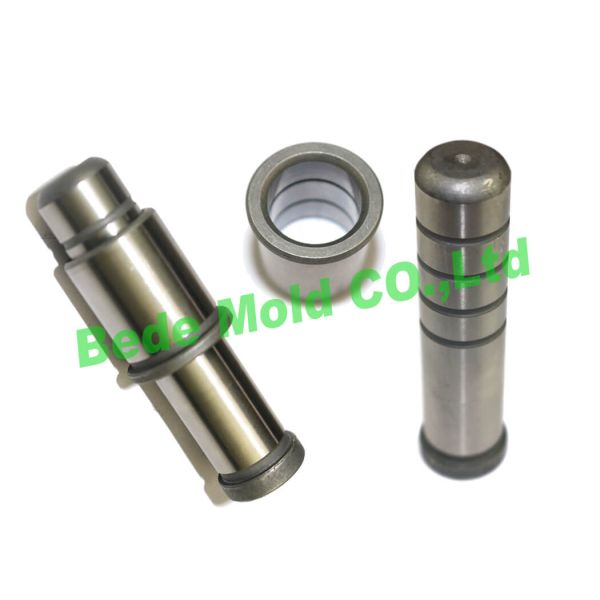

Leader pins is a guide element used with components in the mold to ensure that the mold moves with precise positioning and guides the mold travel. It is usually cylindrical with shoulder and have some oil grooves.The tail is designed as a conical surface to ensure it accurately enters the guide bushings.
material
The material of guide pins usually uses bearing steel, die steel and so on. The bearing steel GCr15 material is a high carbon chromium bearing steel ,that has been quenched and hardened to have high hardness, uniformity and wear resistance. Due to its ability to harden to HRC60 and high carbon wear resistance, it is the most widely used bearing steel. It is suitable for all kinds of bearing rings and rolling elements. It is also used to manufacture die and measuring tools, including guide pins and ejector pins of various molds...

Injection Mold Leader Pins And Bushings / DME Standard Mold Guide Pins And Bushings
Quick Details
Because of the reason of usage, the guide pins needs smooth surface,requiring small cylindrical tolerances and low surface roughness.

materials GCr 15RoughnessRa 0.8~1.0
Sizeall the DME sizeTolerance0.005mm
hardnessHRC 55~60°ODM / OEMwelcome


Standard Size
We have the following standard sizes of leader pins in stock, generally can be shipped within 3 working days, if customized, delivery time is generally 15-20 days. If there is an urgent need, please communicate with the seller in advance.

SIzed/mmd1/mmD/mmH/mm
DiameterToleranceDiameterTolerance
φ1010

-0.013
-0.022

10

+0.015
+0.006

135
φ1212

-0.016
-0.027

12

+0.018
+0.007

17
φ161616206
φ2020

-0.020
-0.033

20

+0.021
+0.008

25
φ252525308
φ30303035
φ3535

-0.025
-0.041

35

+0.025
+0.009

40
φ4040404510
φ5050505612
φ6060

-0.040
-0.055

606615
φ70707076

Injection Mold Leader Pins And Bushings / DME Standard Mold Guide Pins And Bushings


Packing and Shipping

The leader pins are packaged with plastic bags with rust preventing oil, customized package is welcome.
