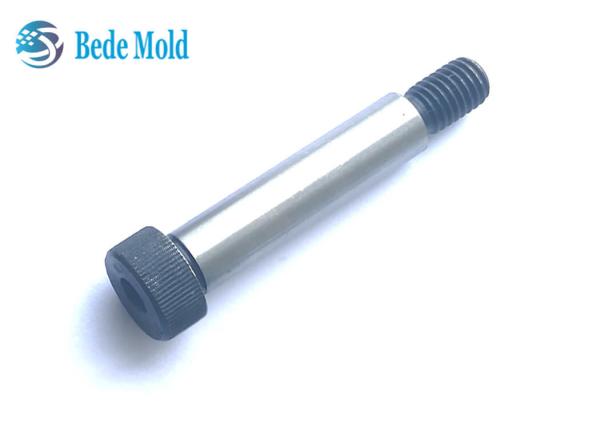

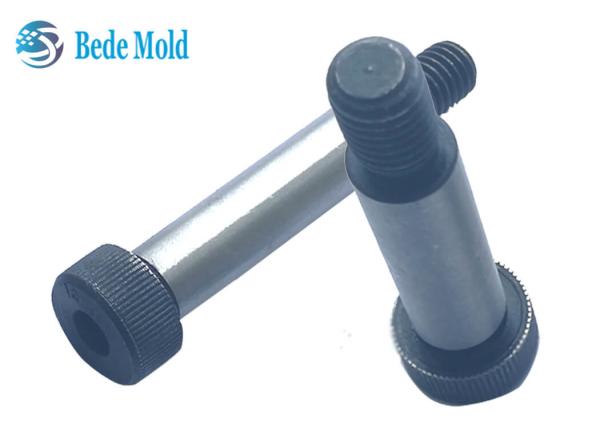

M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head
M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head
M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head
M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head
M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head
M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head
Specifications
Brand Name :
BEDE
Model Number :
stripper bolt
Certification :
R0SH
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union,
Supply Ability :
100K 1 Day
Delivery Time :
15-25 Work Days
Packaging Details :
1000 Per Box
product name :
Shoulder bolt
diamater :
8mm
Standard: :
ISO7379
Length :
16~100mm
Hardness :
33~38HRC
Material :
SCM435
Description

M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head

Specifications of M6 Shoulder Bolt

M6 Shoulder Bolt Stripping Bolts 12.9 Grade Injection Mould Parts Socket Hexagon Head

D d1*p dk H T b s L
8 M6*1.0 13 5.5 3.3 11.25 4 16,20, 25+n*5 ... 100max

Inquiry mode: D*L*d1*QTY, E.g: tell us "Shoulder bolt 8*85*M6*1000", you will get the offical quotation ASAP, the diameter 8mm, length 85mm, thread M6*1.0, quantity1000 pcs.

Quick Details of the shoulder bolt

Thread Size M6 Thread type Metric Fine
Materials SCM435, 33~38HRC Driver type Socket hexagon
Rod diameter 8mm Production standards ISO7379
Length of Rod 16, 20, 25, 30, 35, 40, 45,50,... 100mm(max.)

Description of the shoulder bolt

Hex socket head shoulder screws, also known as shoulder bolts, stripping bolts, etc., are used together with the tie rods to control the mold opening stroke of the three-plate mold.

The product has high hardness, good toughness, excellent wear resistance and heat resistance, can significantly improve the service life of the mold, and the hot shape of the precision mold can be effectively controlled, and is suitable for the mold working at high temperature.

How to Buy

  • Please pay attention to our minimum order quantity.
  • All shipping terms are available, please contact us for shipping cost.
  • Prices can be negotiated for bulk order,

About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.

T/T Paypal Western Union
Bank Name DBS Bank(Hong Kong) Limited alicechu@szbede.com First name: CAIXIA
Bank Address 11th Floor, The centre, 99 Queen's Road Central,Central,HongKong Last name: CHU
SWIFT Code DHBKHKHH Address: Xinqiao Street,Bao'an District, Shenzhen, China
Account Name XT Shenzhen Bede mold CO, Ltd
account NO. 79969019953
Contact: Name: Kerry Kim Telephone of office: +86 755 527084976
Mobile/ whatsapp:+8615915396878 Email: kerrykim@szbede.com
