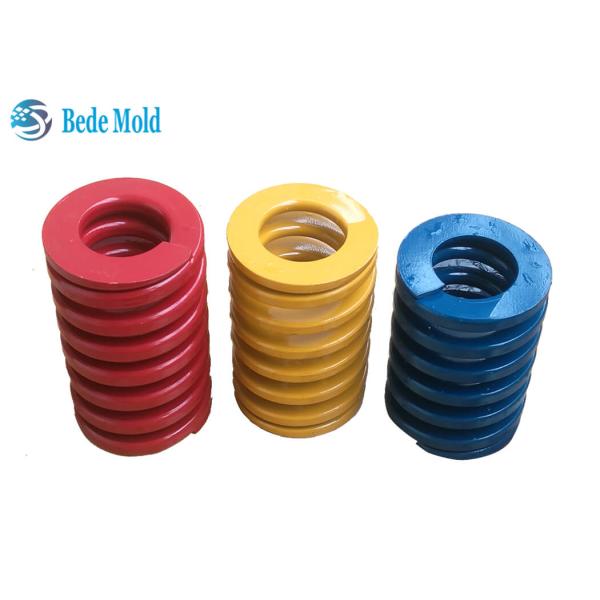

Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading
Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading
Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading
Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading
Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading
Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading
Specifications
Brand Name :
BD
Model Number :
BD~s0000
Certification :
RoHS
Place of Origin :
China
MOQ :
50pcs each size
Price :
Negotiation
Payment Terms :
Western Union, L/C, D/A, D/P, T/T
Supply Ability :
120000~150000 pieces per month
Delivery Time :
10~15 work days
Packaging Details :
Carton, Size 30*20*20cm
Style :
Coil, flat
Material :
50CrVA
Usage :
Industrial,Auto;Car,Mold Components
Color :
red,
Product name :
die springs
loading :
TM
Description

Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading

Materials of Die springs

​

1. 65Mn

​ The strength is relatively low, with a certain degree of toughness and plasticity, and the elastic coefficient is equivalent to that of alloy spring steel. But the hardenability is poor, mainly used for smaller size springs, injection mold springs.

Tensile Strength ≥735MPa

Yield Strength ≥430MPa

Elongation δ10 (%):14~21.5

Application: Can be competent for general injection molds, low price is its core competitiveness

2. 55Si2Mn

The 55Si2Mn spring steel has high strength, good elastic limit, high yield ratio, good toughness after heat treatment, and higher hardenability than 65Mn steel. It is suitable for the manufacture of flat springs with medium loads such as railway vehicles, automobiles, and tractors, and spiral springs with a diameter of less than 25mm. Cushion springs and cylinder safety valves are important springs that work under high stress, and can also be used as heat-resistant springs below 250°C.

Tensile Strength ≥1274MPa

Yield Strength ≥1176MPa

Elongation δ10 (%) ≥ 6%

Application: Can be competent for all the injection molds and punching dies, anti-deformation ability is its core competitiveness

3. 50CrVA

The 50CrVa is a high-grade spring steel, has higher toughness, strength and elastic limit, fatigue strength, lower elastic modulus, higher yield ratio and hardenability, and good impact toughness; suitable for manufacturing large cross-section high-load springs and valve springs and piston springs whose working temperature is not higher than 300℃;

Tensile Strength ≥1274MPa

Yield Strength ≥1127MPa

Elongation δ5 (%) ≥10%

Application: Can be competent for all the injection molds and punching dies, especially for high temperature injection molds and large punching dies, temperature resistance ability and high-loading are its core competitiveness

Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading

Details of The Die springs

Materials OD / mm ID / mm Length / mm Color Loading
50CrVA 30 15 25~300 Red TM Max 180Kg


Constant and Free length of this die springs

free length mm 25 30 35 40 45 50 55 60 65 70
spring constant N/mm 281.7 183.9 157.9 137.9 137.9 110.3 99.05 91.89 84.34 78.75

free length mm 75 80 90 100 125 150 175 200 250 300
spring constant N/mm 72.57 68.94 61.29 55.11 44.13 36.77 31.48 27.56 22.06 18.44

Die Springs OD 30mm 50CrVA Materials Red Color TM Middel Loading

How to buy the die springs
  • Please pay attention to our minimum order quantity.
  • All shipping terms are available, please contact us for shipping cost.
  • Prices can be negotiated for bulk order,

About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.

T/T Paypal Western Union
Bank Name DBS Bank(Hong Kong) Limited alicechu@szbede.com First name: CAIXIA
Bank Address 11th Floor, The centre, 99 Queen's Road Central,Central,HongKong Last name: CHU
SWIFT Code DHBKHKHH Address: Xinqiao Street,Bao'an District, Shenzhen, China
Account Name XT Shenzhen Bede mold CO, Ltd
account NO. 79969019953
Contact: Name: Kerry Kim Telephone of office: +86 755 527084976
Mobile/ whatsapp:+8615915396878 Email: kerrykim@szbede.com
