50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail
50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail
50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail
50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail
50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail
50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail
Specifications
Brand Name :
BD
Model Number :
BD~s0000
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pieces
Price :
3.13~22.75 USD per piece
Payment Terms :
Western Union, L/C, D/A, D/P, T/T
Supply Ability :
120000~150000 pieces per month
Delivery Time :
within 2 days for retail, 10~15 days for wholesale
Packaging Details :
Plistic bags
color :
brown
material :
60Si2MnA
Size :
Outer Diameter 50 mm
Packing :
PE bags
service life :
Depending on the Compression ratio
Load :
Super Heavy Load
Description

60mm Stamping Die Spring Extra Heavy Load Plistic Mould Spring TB Load Brown Color 60Si2MnA Materail

Discraption

  • Mateials: Alloy steel 50CrVA / 60Si2MnA
  • Load: Extra Heavy Load / TB
  • Color: Brown
  • Compression Ratio: 20% maximum
  • Outer Diameter: 50 mm, Inner diameter 25 mm
  • Length: 50~500 mm
  • Production standards: Japan JIS

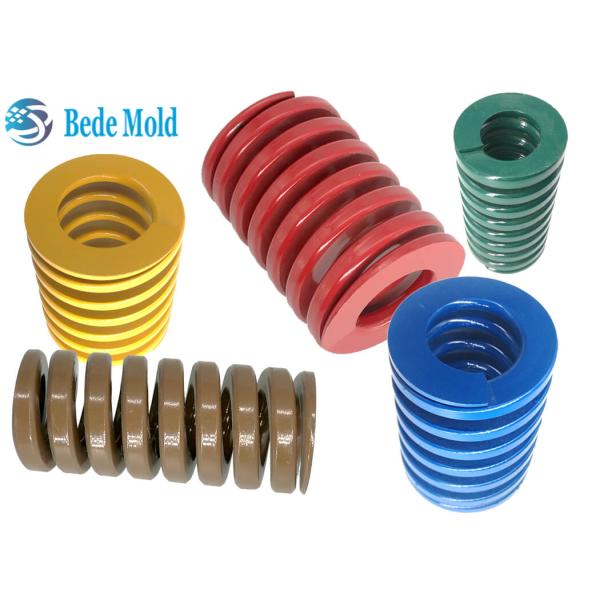

Load Color Compression Ratio %
Lightest yellow 40 45 50
Light blue 32 36 40
Medium red 25.6 28.8 32
Heavy green 19.2 21.6 24
Extra Heavy Brown 16 18 20
Life length/Compression times 1,000,000 500,000 300,000


Quick Details

materials Alloy steel 50CrVA outer diameter 50mm
Compression Ratio 20% maxi. inner diameter 25 mm
Length 50~500 mm load Extra Heavy load / TB


Length and price

Size Length / Millimeter
Φ 50 50 55 60 65 70 75 80 90 100
Price/USD 3.13 3.22 3.29 3.38 3.46 3.54 3.62 3.78 5.42

Size Length / Millimeter
Φ 60 125 150 175 200 250 275 300 350 400 450 500
Price/USD 6.7 7.23 8.43 9.71 12.05 12.85 13.65 15.06 18.07 20.08 22.75

Other size

We have the following sizes on stock, and will ship within 2 days after receiving the payment, but the quantity of the stock changes at any time, so please contact us for confirmation before purchase.

OD Φmm 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60 70
ID Φmm 4 5 6 7 8 9 10 11 12.5 13.5 15 17 20 25 30 35
Length mm 20~300 50~500


Application
 Springs are widely used in stamping dies, metal die-casting dies, plastic molds and other elastic precision mechanical equipment, automobiles and other fields.

Attention

Usually, the proportion of service life depends on the spring and compressed, probably relations are as follows,3 points should be paid attention to prevent premature failure of the spring:
1.Maintaining initial compression more than 1mm
2. Prevent any other articles from the middle of the spring
3. Keep vertical compression to prevent bending

50mm Stamping Die Mold Spring Super Heavy Load Plistic Brown 60Si2MnA Materail

Order and payment
  • Please pay attention to our minimum order quantity.
  • All shipping terms are available, please contact us for shipping cost.
  • Prices can be negotiated for bulk order,
  • customized size is available

About the payment, T/T, PayPal and WestUnion is welcome, for the bulk order , please feel free to contact us for whlesale price.

Contact Paypal Western Union
Name Kerry Kim alicechu@szbede.com First name: CAIXIA
whatsapp +8615915396878 Last name: CHU
Mobile +8615989309421 Address: Xinqiao Street,Bao'an District, Shenzhen, China
Office +8675527084976
Email kerrykim@szbede.com
