Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector
Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector
Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector
Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector
Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector
Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector
Specifications
Brand Name :
BEDE
Model Number :
DB 15Pin
Certification :
UL CE ROHS
Place of Origin :
China
MOQ :
100
Price :
$0.99
Payment Terms :
Western Union , T/T ,Papay
Supply Ability :
80000/week
Delivery Time :
2 days for retail, 20 days for wholesale
Packaging Details :
1000 pcs in a carton, size 480*410*410mm, G.W. 25KG.
Model Number: :
BEDE-AISG-DB15
Type :
Plastic connector
Protection Level :
IP 67/68
Function :
waterproof
Material :
PA66 UL94V-0
colour :
black
Size :
41mm*22mm*79mm
Operating temperature :
-55℃～125℃
Description

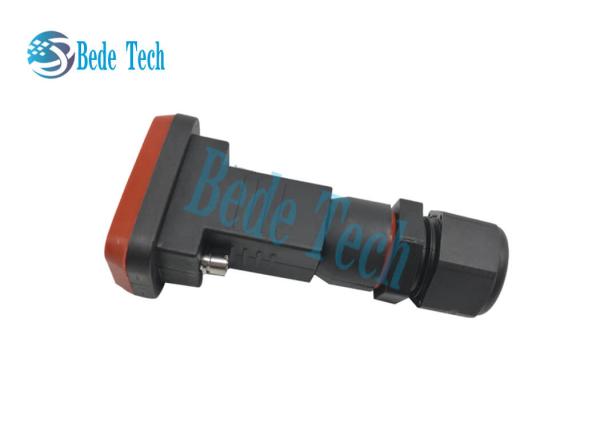

Assembled Waterproof AISG Cable DB9 Plug Ip67 With Screw Lock D-Sub Connector

This is a wide range of connector AISG cable DB 9 plugs for audio/video products, digital devices, remote controls, home appliances, security products and communications products. It has a very high level of protection and security. , it has a very low order quantity and good quality,

Click To Download DB-TDS.pdf

Control Cable Plug AISG Cable Connectors D-SUB Waterproof Connector Ip67 With Screw Lock D Sub Connector

Model specification

Name Factory Model Standards
DB15 Connector BEDE BEDE-AISG-DB15 RoHS

Parameter

Name Material Plating
Plastic connector PA66 UL94V-0 /
Size 41mm*22mm*79mm /
Pinhole brass 1.27um Ni bottom, gold plated contact 0.02-0.03um, fogging in the tail area Tin 2.5um
　
installation Screw
Size 30.8(A)*25(B)*12.5(C)*2.29(D)
Pins No. 15 PIN
Button /
Operating temperature 　-55℃～125℃
Rated voltage 300V
Rated current 　5A
Withstand voltage 1000VAC,60s,1mA
Insulation resistance ≥5000MΩ
Contact resistance ≤30mΩ
Contact form 　welding
Lifetime 500 cycles
Storage conditions Normal temperature and humidity, no corrosive gas environment
Storage time 5 years
How to buy
PayPal and WestUnion is welcome, after payment (Products and Freight), please sent the Bank Bill to us,we will arrange the delivery within 2 days and inform you the logistics information.For large quantities more than 10000pieces, please feel free to contact us for whlesale price.
Contact Paypal Western Union
Name Alice Chu alicechu@szbede.com First name: CAIXIA
whatsapp +8618938686395 Last name: CHU
Mobile +8618938686395 Address: Xinqiao Street,Bao'an District, Shenzhen, China
Office +8675527084976
Eamil alicechu@szbede.com
