Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
Specifications
Brand Name :
BD
Model Number :
BDSB0000
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
0.99~11.77 USD per piece
Payment Terms :
Western Union, L/C, D/A, D/P, T/T
Supply Ability :
5000 pieces per week
Delivery Time :
within 2 day after payment
Packaging Details :
PE bags
Materials :
Carbon Steel S45C
Tapy :
B type
Bush diameter :
5/8''
Length :
1-3/4''~ 8''
head Dia. :
1-1/2''
Head thickness :
3/4''
Description

Precision Mold Parts Sprue Bushing S45C Materials Diameter Φ1/2'' Head B Type Φ1-1/2''

Background

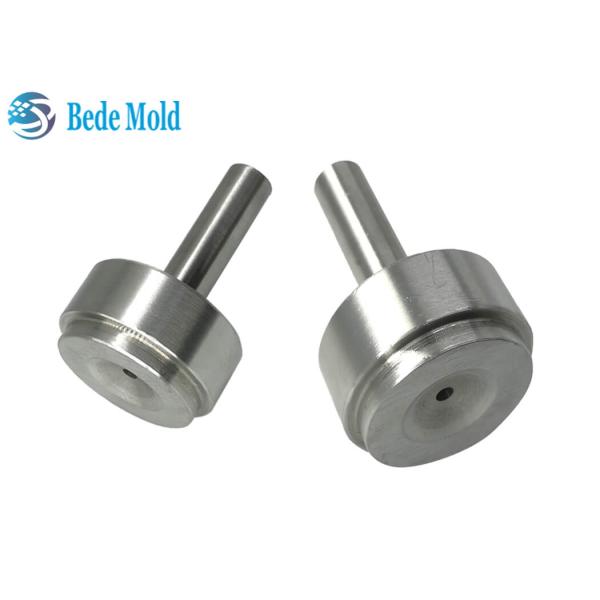

The sprue bushing is a part that allows plastic material to be injected from the nozzle into the interior of the mold. B type Sprue Bushings is used when the mold is designed with a positioning ring.
Regarding the material, SKD61 and S45C are commonly used. S45C is a medium carbon steel with excellent wear resistance, but the ductility is reduced, the quenching performance is not good, and the hardness after quenching is HRC42, so it is used to make the sprue bushing of the low-end mold, after the high temperature, its need to spray anti-rust oil or other anti-rust treatment to prevent rust.
The relationship between the size of the sprue bushings and the tonnage of the injection molding machine is as follows. the types of plastics materials being injection molded have a littell impact on them.

Size of sprue sleeve φ2.5 φ3.0 φ3.5 φ4.0 φ4.5 φ5.0
Tonnage of injection machine 25~80T 100~150T 160~200T 220~260T 300~350T 400~450T


Description

  • materials: S45C medium carbon steel
  • Head type: B type
  • Head thickness: 3/4''
  • Head diameter: 1-1/2''
  • Bushing: diameter 5/8''
  • Length : 1-3/4''~ 8''
  • Hardness: HRC 30
  • ODM / OEM: welcome
  • Packaging: packed in a PE bag with anti-rust oil, then loaded into a carton

Size and Price
We have stocks of the following sizes and can ship within 48 hours of payment. For custom sizes, please contact us via Whatsapp +8615915396878 or send a inquiry via email.

T /inch 3/4'' ΦD /inch 1/2''
L /inch 1-1/2 1-3/4 2 2-1/4 2-1/2 2-3/4 3 3-1/4 3-1/2 3-3/4
Price/USD / 0.99 1.03 1.06 1.09 1.13 1.18 1.21 1.28 1.44

T /inch 3/4'' ΦD /inch 1/2''
L /inch 4'' 4-1/4'' 4-1/2 5'' 5-1/2 6 6-1/2 7'' 7-1/2 8''
Price/USD 1.55 1.62 1.91 2.21 2.45 3.99 5.89 8.24 9.56 11.77


Durable High Precision Mold Parts Sprue Bushing Metal 3/4'' Head Thickness
How to buy

  • Contact us to confirm inventory and negotiate the prices
  • Pay the full amount or deposit
  • Production, quality inspection, transportation, and inform you of all the details

About the payment, T/T, Paypal, and Western Union are available, other methods please contact us in advance.

T/T Paypal Western Union
Bank Name DBS Bank(Hong Kong) Limited alicechu@szbede.com First name: CAIXIA
Bank Address 11th Floor, The centre, 99 Queen's Road Central,Central,HongKong Last name: CHU
SWIFT Code DHBKHKHH Address: Xinqiao Street,Bao'an District, Shenzhen, China
Account Name XT Shenzhen Bede mold CO, Ltd
account NO. 79969019953
