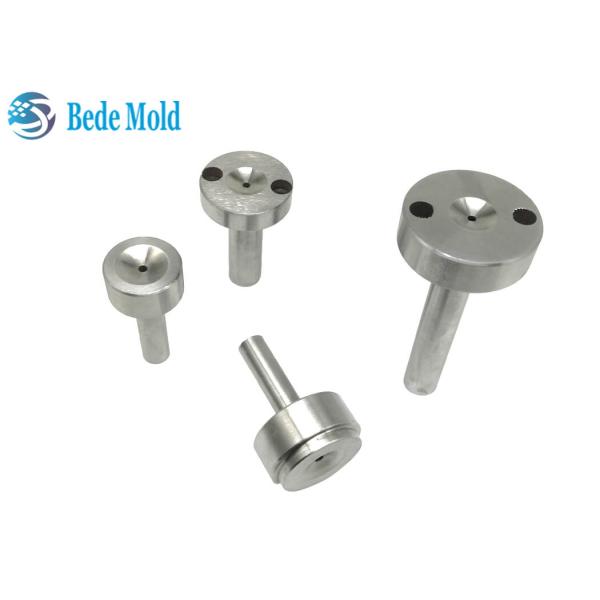

Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Specifications
Brand Name :
BD
Model Number :
BDSB0000
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
2.72~37.95 USD per pieces
Payment Terms :
Western Union, L/C, D/A, D/P, T/T
Supply Ability :
5000 pieces per week
Delivery Time :
within 2 day after payment
Packaging Details :
PE bags
Materials :
Carbon Steel S45C
Tapy :
A type
Bush diameter :
10 14 16 20 mm
Length :
40~100mm
head Dia. :
40mm
Head thickness :
10mm/15mm
Description

Mold Sprue Bushing A Type S45C Materials Bushing Φ10 12 16 mm Head Φ50 mm for Injection Molding

Background
The sprue bush is a part that allows plastic material to be injected from the nozzle into the interior of the mold.
Regarding the material, SKD61 and S45C are commonly used. S45C is a medium carbon steel with excellent wear resistance, but the ductility is reduced, the quenching performance is not good, and the hardness after quenching is HRC42, so it is used to make the sprue bushing of the low-end mold, after the high temperature, its need to spray anti-rust oil or other anti-rust treatment to prevent rust.
The relationship between the size of the sprue bushings and the tonnage of the injection molding machine is as follows. the types of plastics materials being injection molded have a littell impact on them.

Size of sprue sleeveφ2.5φ3.0φ3.5φ4.0φ4.5φ5.0
Tonnage of injection machine25~80T100~150T160~200T220~260T300~350T400~450T


specification & price list for spure bushing A&B.pdf
Description

  • materials: S45C medium carbon steel
  • Head type: C type
  • Head thickness: 10mm / 15mm / 20 mm
  • Head diameter: 40 mm
  • Bushing: diameter 10 14 16 20 mm
  • Length : 40~100 mm
  • Hardness: HRC 30
  • ODM / OEM: welcome
  • Packaging: packed in a PE bag with anti-rust oil, then loaded into a carton

Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
Size and Price
We have stocks of the following sizes and can ship within 48 hours of payment. For custom sizes, please contact us via Whatsapp +8615915396878 or send a inquiry via email.

ΦD/mm40H /mm10 / 15 / 20Φd /mm10 / 16 mm
L /mm4050606570758090100
Price/USD1.331.471.77


ΦD/mm40H /mm10 / 15 / 20Φd /mm12 mm
L /mm4050606570758090100
Price/USD1.471.771.77


ΦD/mm40H /mm10 / 15 / 20Φd /mm20 mm
L /mm4050606570758090100
Price/USD1.772.212.21


Carbon Steel S45C 15mm Head Sprue Bushing Injection Molding A Type
How to buy

  • Contact us to confirm inventory and negotiate the prices
  • Pay the full amount or deposit
  • Production, quality inspection, transportation, and inform you of all the details

About the payment, T/T, Paypal, and Western Union are available, other methods please contact us in advance.

T/TPaypalWestern Union
Bank NameDBS Bank(Hong Kong) Limitedalicechu@szbede.comFirst name:CAIXIA
Bank Address11th Floor, The centre, 99 Queen's Road Central,Central,HongKongLast name:CHU
SWIFT CodeDHBKHKHHAddress:Xinqiao Street,Bao'an District, Shenzhen, China
Account NameXT Shenzhen Bede mold CO, Ltd
account NO.79969019953
