Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
Specifications
Brand Name :
BEDE
Model Number :
Expansion screw
Certification :
ROSH
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K per Day
Delivery Time :
15-25 Work Days
Packaging Details :
1000 Per Box
Size :
M6~M20
Material :
Stainless steel
Length :
80~200mm
color :
silver
Packing :
1000pcs per Box
customized :
available
Description

Expansion Anchor Bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color

Description

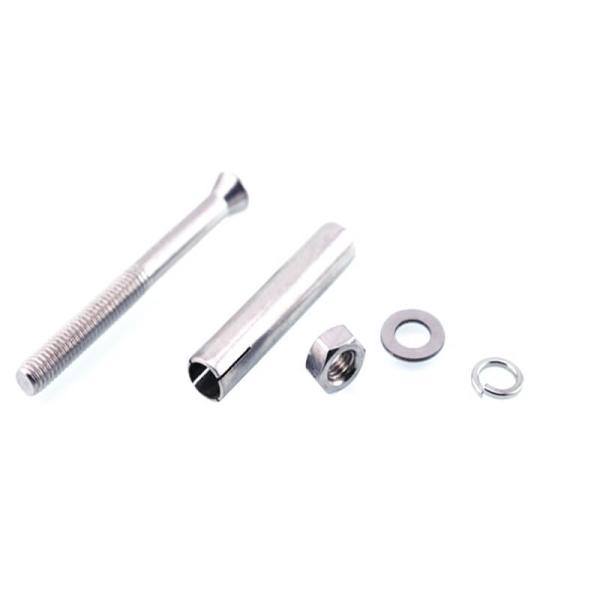

Expansion bolts are special threaded connections used to secure pipes, brackets or equipment to the walls, floors, and columns. Expansion bolts consist of countersunk bolts, expansion tubes, flat washers, spring washers and hex nuts. Commonly used for construction site construction, foundation, fixed air conditioning brackets, etc.


Material of the expansion anchor bolts

Commonly used materials: Q215, Q235, 25 and 45 steel, for important or special purpose threaded couplings, 15Cr, 20Cr, 40Cr, 15MnVB, 30CrMrSi and other alloy steel with higher mechanical properties can be selected.

Quick Details of the expansion anchor bolt

Size M6-M20 Thread type Metric Fine
Materials Stainless steel Type Pull expansion
customized welcome Packing 1000pcs per Box

Standard Size of the expansion anchor bolt

For the M6~M20 Flat point grub screws, ,we have the following standard sizes in stock, generally can be shipped within 2 working days after payment, if customized, delivery time is generally 15-20 days. If there is an urgent need, please communicate with the seller in advance.

Size D L/mm d/mm l/mm
M6*50 6mm 50 8 35
M6*60 60 40
M6*70 70 50
M6*80 80 55
M10*70 10mm 70 12.32 44.55
M10*80 80 55.04
M10*100 100 75.13
M12*80 12mm 80 14.88 49.96
M12*100 100 68.13
M12*120 120 90.07
M12*150 150 120.22

For the customized size, Tell us the values as following picture, everything else will be done by us for you.

Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color

Expansion Anchor bolts M6-M20 with Hex Nut / Washers / Expansion Sleeve Silver Color
