Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
Specifications
Brand Name :
BEDE
Model Number :
Flange nut
Certification :
RoSH
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
100K 1 Day
Delivery Time :
15-25 Work Days
Packaging Details :
1000 Per Box
Material :
Iron / Alley steel
Standard: :
Metric
color :
white / colorful
grad :
8.8 / 9.9 / 12.9
treatment :
Nickel plated / Zinc plated
Description

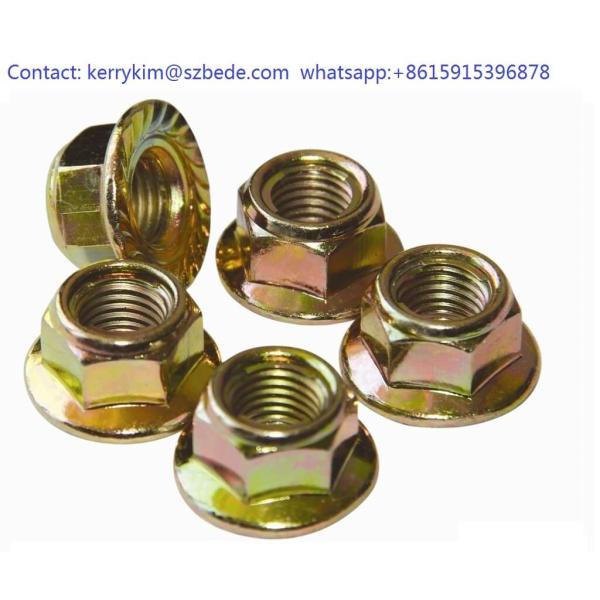

Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932

Description

A section of the nut has a patterned flange to increase the contact area to share the pressure and prevent loosening, lessens the need to use a washer, the flange have 2 kinds, plain and serrated

Materials of the hex head flange nut

Iron or alley steel, deponed on the glade , hardness 33~38

Quick Details of the hex head flange nut

Size M5-M20 Thread type Metric Fine
Materials Iron/ alley steel Treatment Nickel / Zinc plated
customized welcome Packing customized

Standard Size of the hex head flange nut

Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932

D / inch m / inch S / inch dc / inch
max min max min max min
1/4 0.236

0.222

 0.312 0.302 0.442 0.574
5/16 0.283 0.266 0.500 0.489 0.680 0.660
3/8 0.347 0.330 0.562 0.551 0.750 0.728
7/16 0.395 0.375 0.688 0.675 0.937 0.910
1/2 0.458 0.437 0.750 0.736 1.031 1.000
9/16 0.506 0.483 0.875 0.861 1.188 1.155
5/8 0.569 0.545 0.938 0.922 1.281 1.248
3/4 0.675 0.627 1.125 1.088 1.500 1.460

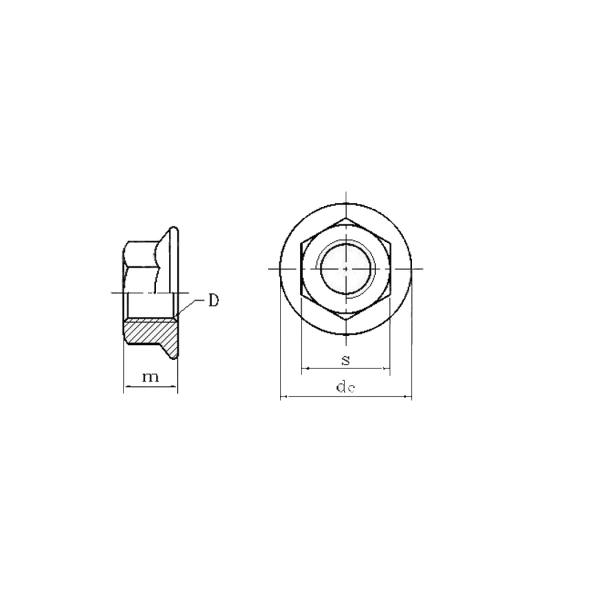

For the customized size, please tell us the values dc*m*D*S as following picture, everything else will be done by us for you.

Hex Head Flange Nuts Fully Threaded Iron / Alloy Steel Material Metric Standard DIN 6932
