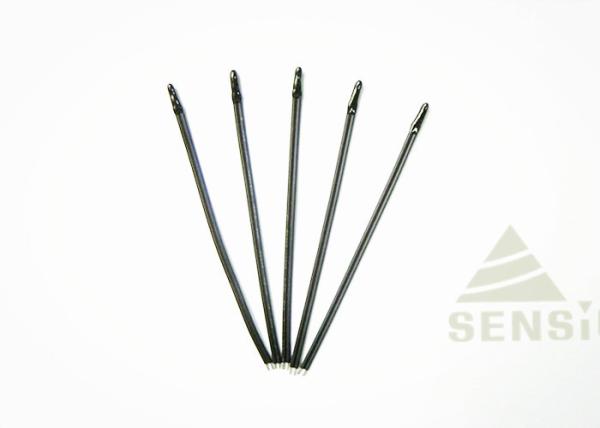

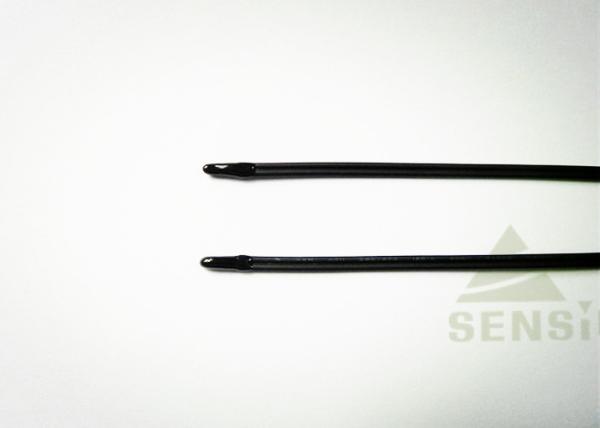

Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Epoxy Head NTC Temperature Sensor , Miniature Temperature Probe Sensor
Specifications
Brand Name :
Hefei Minsing
Model Number :
MFE-1
Certification :
REACH ,ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
6 Million Pieces Per Year
Delivery Time :
7-10 work days
Packaging Details :
Bulk
Head Material :
Epoxy
Lead Wire :
UL2651 AWG22(Customizable)
Head Size :
Φ4×12mm (Customizable)
Wire Length :
Customized To Your Demands
R25℃ :
0.5KΩ-2000KΩ
B Value :
3000K-4500K
R Tolerance :
1%,2%,3%,5%,10%
B Tolerance :
1%, 2%,3%,5%
Description

Small Epoxy Head Φ4×12mm , Miniature Designed NTC Sensor , Thick Wire Gague AWG22 , for Power Supply

Product Feature:

Wide operating temperature range / High stability and reliability

Fast response/ Air temperature measurement

Application:

Auto Air-condintioner / Dryer / Air-conditioner / Industrial manufacture /Electronic appliance

Specification Explain:

SJ MF E -1 -3950 -502 F

① ② ③ ④ ⑤ ⑥ ⑦

① Minsing Co.,Ltd

② NTC thermistor

③ Encapsulation probe:

E: Epoxy encapsulated

④ Epoxy Types: 1. Water drop type, 2 .The gourd type

⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ

⑦ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification:

Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant Thermal time constant Operating temp. range
SJMF□-□280-301□ 0.3 2800

ln still air 2.1~15mW/℃

ln still air 25~65s

-40～+150℃
SJMF□-□338/350-202□ 2 3380/3500

SJMF□-□327/338-502□

 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 347/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.

More detailed data for reference, please visit our website: www.Minsing.com.cn.
