150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length
150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length
150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length
150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length
150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length
150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length
Specifications
Brand Name :
New Era
Model Number :
Corten A/Cor-Ten A
Certification :
ISO 9001,ISO 14001,TS 16949
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 tons/month
Delivery Time :
20-45 days
Packaging Details :
Bundles Package, Wooden Box Package
Material :
COR-TEN A,SPA-H,S355J2WP
Delivery Condition :
Cold Rolled Steel,GBK,NBK
OD Size :
6-150mm
WT Size :
0.8-8mm
Length :
1000-12000mm
Application :
Cooling Tube,Exhaust Pipes,Structural Pipe
Standard :
CortenA Corrosion Tensile Steel
Description

CORTEN A Steel is Corrosion Tensile Atmospheric Resistant Welded Steel Pipes and Steel Tubes

Cor-Ten A atmospheric corrosion resistant welded pipes/ERW Steel Tubes

COR-TEN A Steel is atmospheric corrosion resistant steel,Corrosion-Tensile Steel,high strength steel

The purity of the steel of fine grade austenitic quality and the addition of special alloys, provide this steel ,

excellent mechanical characteristics, even at high temperatures and self-passivating properties when exposed to

corrosive agents present in urban atmosphere. This property allows this steel to face down corrosion for longer

periods when compared to common steel, even if not painted.

Chemical Compostion:

Carbon, C <= 0.120 %
Chromium, Cr 0.500 - 1.25 %
Copper, Cu 0.250 - 0.550 %
Manganese, Mn 0.200 - 0.500 %
Nickel, Ni <= 0.650 %
Phosphorous, P 0.0700 - 0.150 %
Silicon, Si 0.250 - 0.750 %
Sulfur, S <= 0.0300 %

Similar Steel grade:CORTEN A Steel,SPA-H JIS G3125,GB/T4171 09CuPCrNi-A,

APPLICATIONS - The mechanical characteristics and the resistance to atmospheric corrosion make this steel, the best

product for the fabrication of agricultural vans and railway wagons, structures of bridges, water pipes, fans, chimneys

and boilers.

HOT FORMING - This operation may be normally carried out in a temperature range of 800 °C to 1050 °C. If it is

required to use a different temperature, it is advisable to carry out a normalizing treatment at the end.

The welded Pipes produced from Cor-ten Steel,with the atmospheric resistance steel,

For welded steel pipes,We can offer square tubes,Round tubes,Rectangle tubes

For seamless steel pipes,We can offer OD from 6mm till 158mm for structural Steel tubes.

Chemical Compostion:

Steel Grade Welded Pipes of Atmospheric Resistance Steel Chemical Composition
Symbol Standard C Si Mn P S Cr Ni Cu
Country % Max.% % Max.% Max.% Max.% Max.% Max.%
COR-TEN A ISO ≤0.12 0.25～0.75 0.20～0.50 0.07～0.15 0.030 0.30～1.25 0.65 0.25～0.55
S355J2WP EN10025-5 ≤0.12 0.25～0.75 ≤1.0 0.07～0.15 0.040 0.30～1.25 0.65 0.25～0.60
SPA-H JIS G3125 ≤0.12 0.25～0.75 0.20～0.50 0.06～0.15 0.035 0.30～1.25 0.65 0.25～0.60
09CuPCrNi-A GB/T4171 ≤0.12 0.25～0.75 0.20～0.50 0.07～0.15 0.040 0.30～1.25 0.65 0.25～0.55
Mechanical Properties:
Steel Grade Normalized Steel Pipes Properties
Name Tensile Rm Yield ReH Elogation A
Mpa Mpa ≥ %
COR-TEN A ≥480 ≥345 ≥22
S355J2WP ≥510 ≥355 ≥20
SPA-H ≥490 ≥355 ≥22
09CuPCrNi-A ≥345 ≥345 ≥22

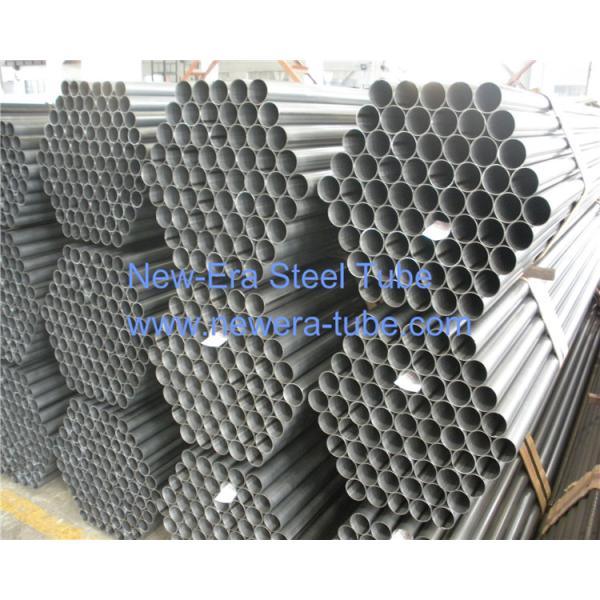

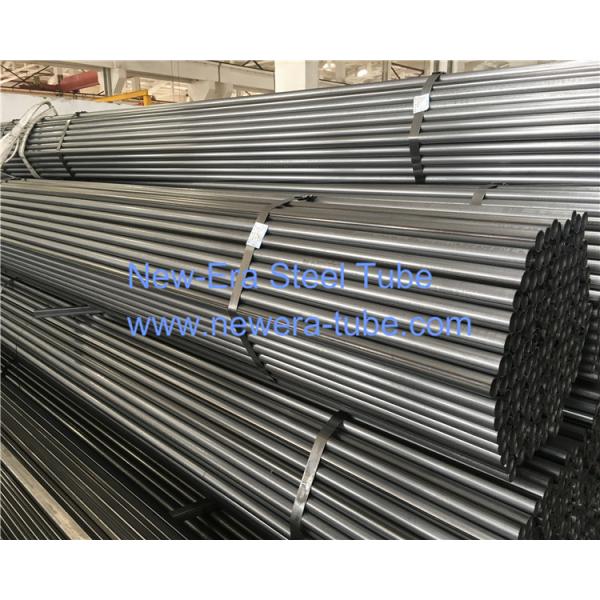

Steel Pipes Products Pictures:
150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length150mm Od 0.8mm Thickness Corten Steel Pipes 1000mm Length

Tags:Atmospheric resistance Steel,Cor-ten A Steel,CORTEN A Steel,CORTEN pipes,welded pipes,exhaust pipes


FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
