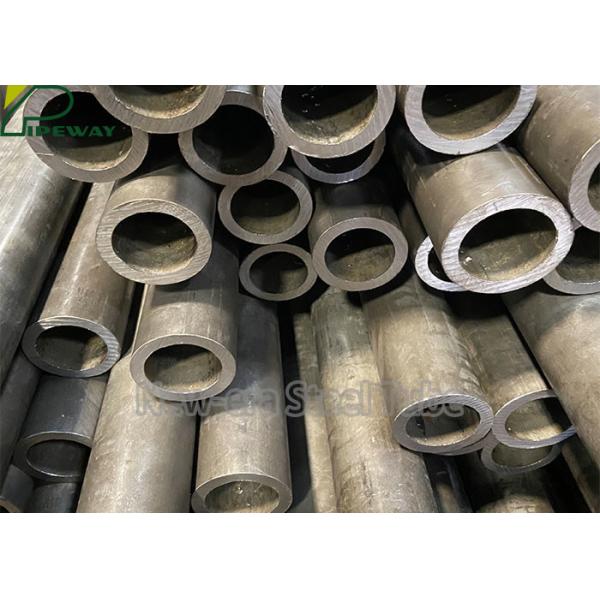

SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
SAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
Specifications
Brand Name :
New Era
Model Number :
ASTM A519
Certification :
ISO9001,TS16949
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 tons/month
Delivery Time :
45 days
Packaging Details :
Bundles Package, Wooden Box Package
Material :
SAE4130, SAE4140, Alloy Steel
Delivery Condition :
HR, CW, SR, A, N
OD Size :
6-256mm
WT Size :
1-30mm
Production process :
Cold Drawn, Cold Rolled, Hot Rolled
Application :
Mechanical Purpose
Mechanical property :
High strength
Description

Product Name: ASTM A519 4130 Seamless Mechanical Alloy Steel Tube
High Strength Alloy Steel Tubes SAE4130 SAE4140


Size Range: OD: 6-256mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: HR, CW, SR, A, N
Application: For mechanical application

Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment: SR, A, N
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.

100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.

Product Name Alloy Steel Seamless Mechanical Tubing with High Strength
Material SAE4130, SAE4140, etc
Delivery Condition HR, CW, SR, A, N
Standard ASTM A519
Application Mechanical usage
Certificate TS16949, ISO 9001
HS code 7304319000
Delivery Time 45 days
Pakcing Bundles or Woodern Boxes

Grade C Mn P ≤ S ≤ Si Cr Mo
1010 0.08--0.13 0.30--0.60 0.40 0.05 -- -- --
1020 0.18--0.23 0.30--0.60 0.40 0.05 -- -- --
1026 0.22--0.28 0.60--0.90 0.40 0.05 -- -- --
1045 0.43--0.50 0.60--0.90 0.40 0.05 -- -- --
4130 0.28--0.33 0.40--0.60 0.04 0.04 0.15--0.35 0.80--1.10 0.15--0.25
4140 0.38--0.43 0.75--1.00 0.04 0.04 0.15--0.35 0.80--1.10 0.15--0.25

Grade Condition

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)

 HRB
1020 HR 345 221 25 55
CW 483 414 5 75
SR 448 345 10 72
A 331 193 30 50
N 379 234 22 60
4130 HR 621 483 20 89
SR 724 586 10 95
A 517 379 30 81
N 621 414 20 89

SAE4130 SAE4140 6mm Alloy Steel Seamless PipesSAE4130 SAE4140 6mm Alloy Steel Seamless Pipes
