Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
Specifications
Brand Name :
New Era
Model Number :
EN10305-4
Certification :
ISO9001,TS16949
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 tons/month
Delivery Time :
45 days
Packaging Details :

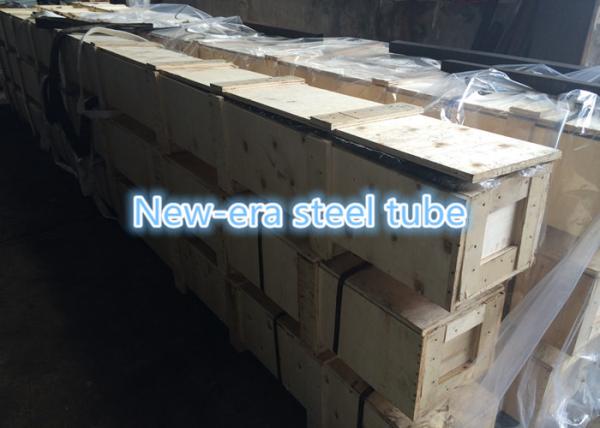

Bundles Package, Wooden Box Package
Material :
E235, E255, E355
Delivery Condition :
+C, +LC, +SR, +A, +N
OD Size :
6-88mm
WT Size :
1-15mm
Surface :
Bright and Clean
Application :
Hydraulic and Pneumatic Power Systems
Advantage :
Exact Dimension
Production Capacity :
3000 tons/month
Description

1. Product Name: Seamless Cold Drawn Steel Tubes used for Hydraulic and Pneumatic Power Systems EN10305-4 E235 +N

2. Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m

3. Stable Quality with Comeptitive Price

4. +N(Normalized) Heat Treatment, Surface is clean and smooth, without oxide scale

5. Good Extending and Bending Ability.

Product Name EN10305-4 Seamless Cold Drawn Steel Tube
Material E235, E255, E355
Delivery Condition +N (Normalized)
Standard EN10305-4
Size Range OD: 6-88mm, WT: 1-15mm
Application High precision purpose, auto parts, oil cylinder, etc
Round Billet Bao Steel, Xingcheng Steel, Zhongtian Steel
Keyword Seamless Cold Drawn Steel Tube
Certificate TS16949, ISO 9001
HS code 7304319000
Delivery Time 45 days
Pakcing Bundles or Woodern Boxes

Steel Grade Chemical Composition
Symbol Material Number

C

Max.

Si

Max.

Mn

Max.

P

Max.

S

Max.
E235 1.0308 0.17 0.35 1.20 0.025 0.025
E255 1.0408 0.21 0.35 0.40--1.10 0.025 0.025
E355 1.0580 0.22 0.55 1.60 0.025 0.025

Steel Grade +C +LC +SR
Name No.

Rm

Mpa

A

%

Rm

Mpa

A

%

Rm

Mpa

ReH

Mpa

A

%
E235 1.0308 480 6 420 10 420 350 16
E255 1.0408 580 5 520 8 520 375 12
E355 1.0580 640 4 580 7 580 450 10

Steel Grade +A +N
Name No.

Rm

Mpa

A

%

Rm

Mpa

ReH

Mpa

A

%
E235 1.0308 315 25 340--480 235 25
E255 1.0408 390 21 440--570 255 21
E355 1.0580 450 22 490--630 355 22

Exact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic TubingExact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic TubingExact Dimension Large Diameter Steel Pipe , Pneumatic Power Systems / Seamless Hydraulic Tubing
