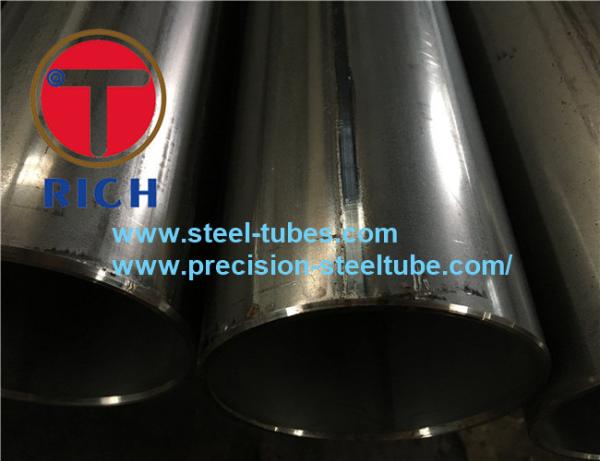

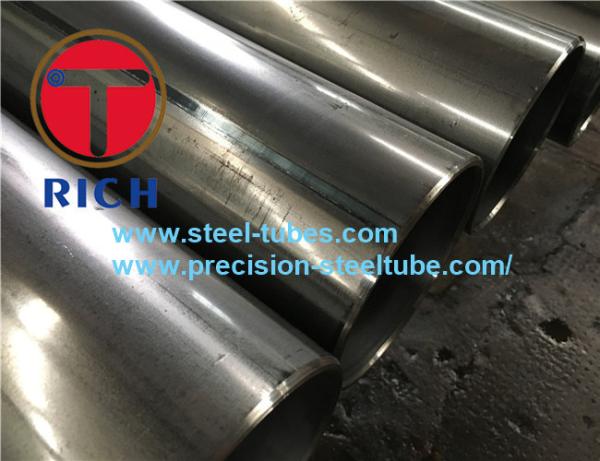

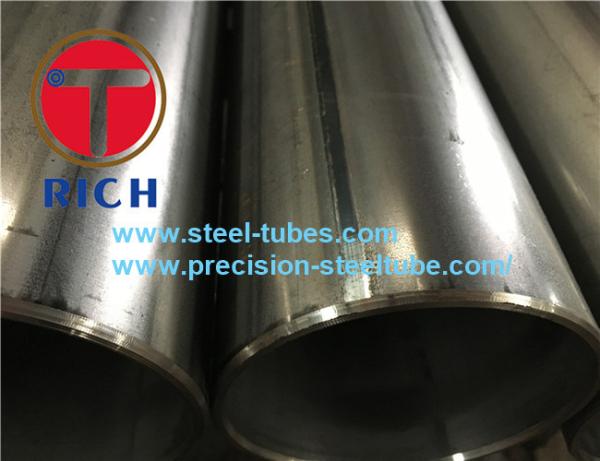

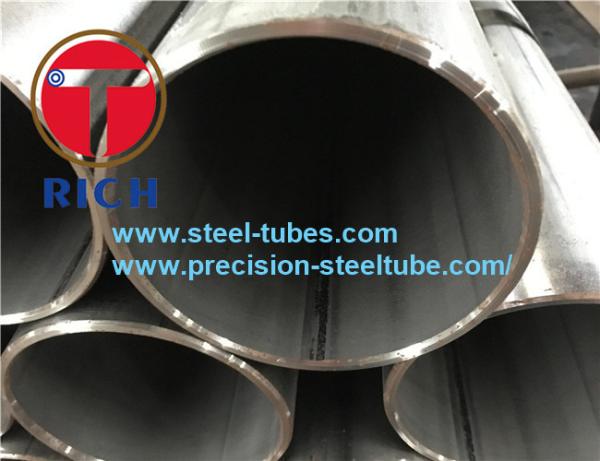

Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Electric Resistance Welded Carbon Steel Heat Exchanger Tubes ASTM A178 / SA178
Specifications
Brand Name :
TORICH
Model Number :
ASTM A178 / SA 178
Certification :
ISO 9001 ISO14001 TS16949
Place of Origin :
China
MOQ :
10 tons
Price :
700 USD-1000 USD
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
6000 Tons/ Year
Delivery Time :
45-60 days
Packaging Details :
Boiler tube packaging:In hexagonal bundles or In wooden boxes packaging or Crate packaging or Bare bundles packaging
Standard :
ASTM A178 SA178
Grade :
Grade A Grade C Grade D
Techinque :
Electric Resistance Welded
Section Shape :
Round
Alloy or not :
Non-Alloy
Secondary or not :
Non-Secondary
Special Pipe :
Boiler Pipe
Delivery Condition :
Annealing
Surface Treatment :
Oil
Description

ASTM A178/ SA178 Electric Resistance Welded Carbon Steel And Carbon Manganese Steel Boiler And Superheater Tubes

Material: Carbon steel and carbon manganese steel
Production: Electric Resistance Welding
Size range: O.D.: 12.7-127mm W.T.:0.9-9.1mm L: according to customer requirement

Applications: For Boilers, Superheaters, Heat-Exchangers, Condensers, Boiler flues, Superheater flues and e ends

Heat treatment:
After welding, all tubes are heat treated at a temperature of 1650℉ (900℃) or higher and followed by cooling in air or in the cooling chamber of a controlled atmosphere furnace.
Cold-Drawn tubes are heat treated after the final cold-draw pass at a temperature of 1200℉(650℃)or higher.


Tests and Inspection:
Tensile Test
Crush Test


Mechanical Test
- Flattening Test
- Flange Test

Chemical Properties

Element Grade A,Low-Cabon Steel Grade C,Medium-Carbon Steel

Grade D,

Carbon-Manganese Steel
Carbon 0.06-0.18 0.35 Max 0.27Max
Manganese 0.27-0.63 0.80Max 1.00-1.50
Phosphorus,Max 0.035 0.035 0.030
Sulfur,Max 0.035 0.035 0.015
Silicon - - 0.10 min
Mechanical Properties Grade A Grade C Grade D
Tensile Strength:min ksi(Mpa) 47(325) 60(415) 70(485)
Yield Point:min ksi(Mpa) 26(180) 37(255) 40(275)
Elongation ≥35% ≥30% ≥30%

Tolerance for OD and WT(SA-450/SA-450M)

OD in(mm) + - WT in(mm) + -
＜1''(25.4) 0.10 0.10 ≤1.1/2''(38.1) 20% 0
1''～1.1''(25.4～38.1) 0.15 0.15 ＞1.1/2''(38.2) 22% 0
＞1.1/2''～＜2''(38.1～50.8 0.20 0.20
2''～＜2.1/2''(50.8～63.5) 0.25 0.25
2.1/2''～＜3''(63.5～76.2) 0.30 0.30
3''～＜4''(76.2～101.6) 0.38 0.38
4''～＜7.1/2''(101.6～190.5) 0.38 0.64
＞7.1/2～9''(190.5～228.6) 0.38 1.14
