Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Specifications
Brand Name :
TORICH
Model Number :
EN10305-4
Certification :
ISO 9001 ISO14001 TS 16949
Place of Origin :
Zhejiang,China
MOQ :
3 TONS
Price :
888 USD PER TON
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50000 TONS PER YEAR
Delivery Time :
20-35 DAYS
Packaging Details :
packing in standard marine packages.
Product name :
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N
Keyword :
Galvanized Precision Seamless Steel Pipe Tube
Material :
E215,E235,E355,1010,1020,1045,16Mn,etc
Application :
for hydraulic and pneumatic power systems
Type :
Seamless Cold Drawn
Shape :
Round
Length :
Max 12000mm
OD :
5-420mm
WT :
0.5-50mm
Brand :
TORICH
Description

Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N

TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience.
Our main products are seamless precision pipe,carbon steel seamless precision pipe,alloy steel seamless precision pipe, stainless steel seamless precision pipe.The material we usually use for producing Galvanized Precision Seamless Steel Pipe Tube is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355

1. Standard:
EN10305-4 Cold drawn Precision Seamless Steel Pipes

2. Steel Grade:
E215,E235,E355, other materials upon agreement with customers.

3. Production method:
Cold drawing on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance,
with certain heat treatment to achieve better mechanical properties for bending and pressure purposes

4. Size range:
O.D.:5-100mm W.T.:1-15mm L:max12000mm

5. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing

6. Deliver condition:
+NAfter the final cold drawing operation the tubes are normalized in a controlled atmosphere
Please specify the final heat treatment when sending the enquiry.

7. Inspection and testing:
Chemical analysis
Tensile test
Flattening test or Drift expanding test
Dimensional inspection
Visual examination
NDT for verification of leaking tightness

Steel Grade C Si Mn P S Al
Steel Name Steel Number max max max max max min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -

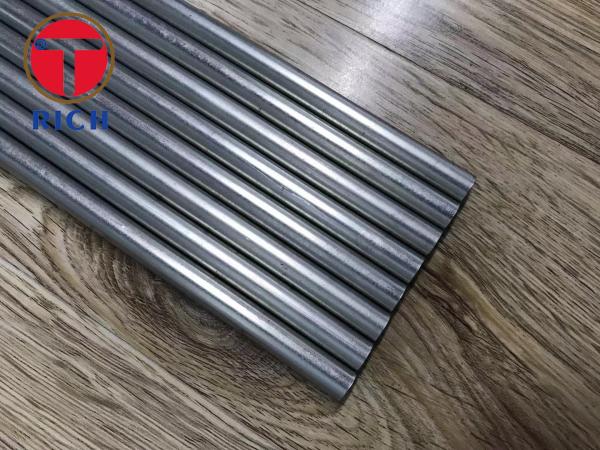

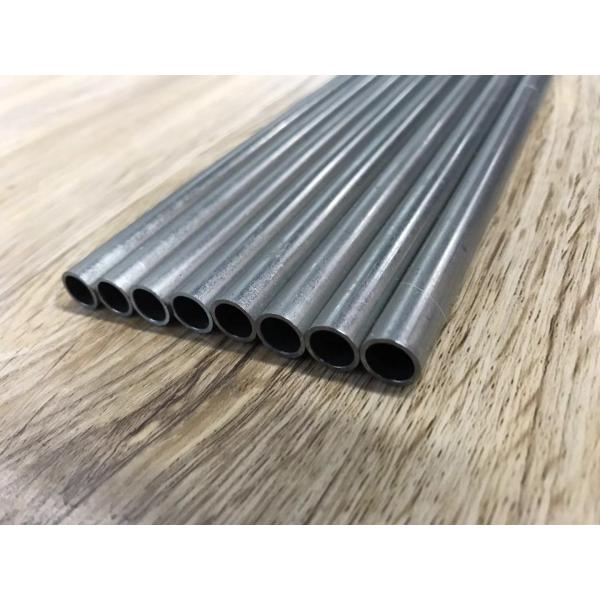

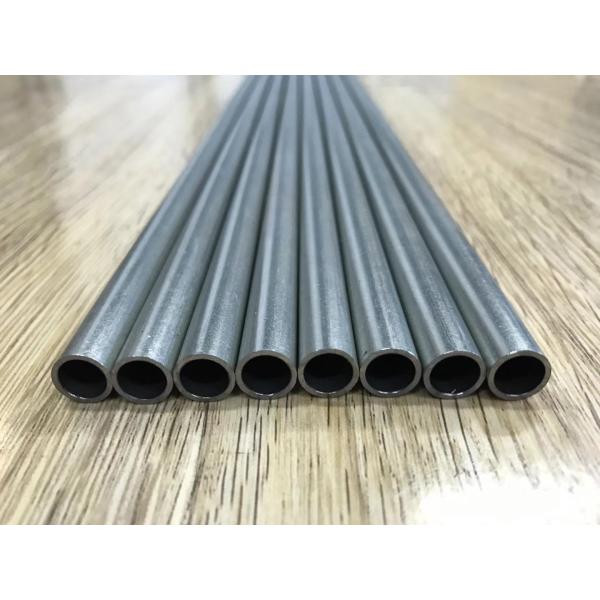

Photos for Galvanized Precision Seamless Steel Pipe Tube
Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N

Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N

Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N

Production process for Galvanized Precision Seamless Steel Pipe Tube

Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +NGalvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N

Galvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +NGalvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +NGalvanized Precision Seamless Steel Pipe Tube Small Diameter Tubes EN 10305-4 E235 +N

FAQ
Q: Are you trading company or manufacturer ?
A: We are professional steel tube manufacture since 1997
Q: What certificates do you have ?
A: IATF16949,ISO9001,SGS
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need pay the cost of freight.
