Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape
Specifications
Brand Name :
TORICH
Model Number :
ASME B16.9
Certification :
ISO9001
Place of Origin :
Zhejiang China
MOQ :
1 Piece
Price :
5 usd one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pieces per month
Delivery Time :
30 days
Packaging Details :
Plastic Bubble Bags Separately ,or request
Brand :
TORICH
Standard :
ASME
Material :
Stainles steel
Technics :
Forged
MOQ :
1 Piece
Packing :
Plastic Bubble Bags Separately
Shape :
Equal
Head Code :
Round
Description

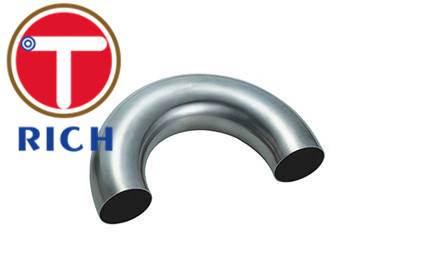

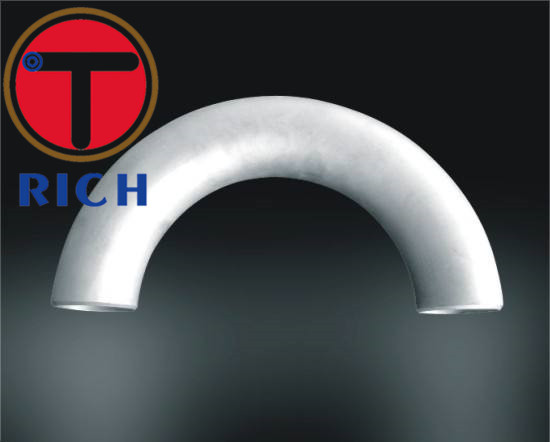

ASME B16.9 DIN 2605 Seamless and Welded Stainless steel 180 Degrees Elbow

Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape

ASME B16.9 DIN 2605 Seamless and Welded Stainless steel 180 Degrees Elbow

Size: seamless 1/2''~24'' (DN15-DN600)

welded 1/2''~48'' (DN15~DN1200)

Standard: ASME B16.9 ; DIN2605 ; JIS

Thickness: SCH5S-SCH160

Material:

317/L ; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L

Applications:

Dairy, food, beer, beverage, pharmacy, cosmetic, etc

DN NPS OD Center to End Center to Center
25 1

32

33.4

 25 50
32 1 1/4

38

42.2

 32 64
40 1

45

48.3

 38 76
50 2

57

60.3

 51 102
65 2 1/2

76

73

 64 128
80 3 89 76 152
90 3 1/2 101.6 89 178
100 4

108

114

 102 204
125 5

133

141.3

139.7

 127 254
150 6

168.3

159

165

 152 304
200 8

219

216

 203 406

Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape

Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape

Asme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal ShapeAsme Standard B16.9 Din 2605 Stainless Steel Elbow 180 Degrees Equal Shape


How to get the sample?


1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.

What is your Payment Term?


1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation


Who are your customers?


1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc


How long will you react on our requirement?


1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!

Any more questions about your doubts, please feel free to send us your emails or call!
