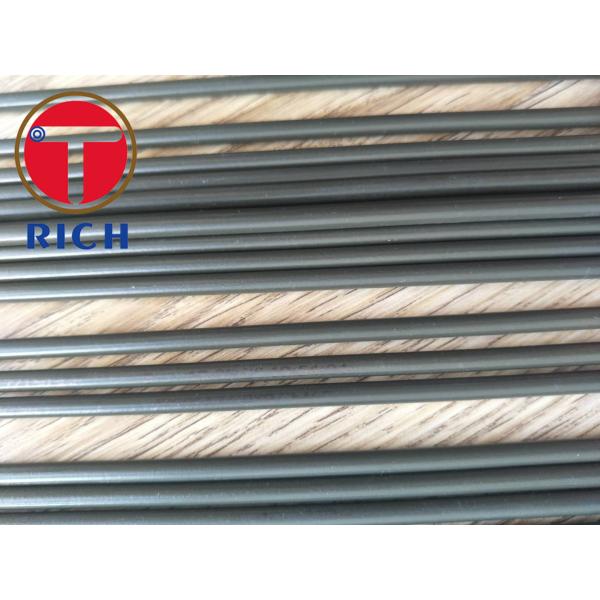

Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Specifications
Brand Name :
Torich
Model Number :
JASO M101
Certification :
ISO9001 TS16949 ISO14001
Place of Origin :
China
MOQ :
3tons
Delivery Time :
5-8 weeks days
Packaging Details :
In wooden boxes packaging
Price :
negotiable
Material :
Low Carbon steel
Type :
TSW
Standard :
JASO M101
Packages :
In wooden boxes packages
Coating :
As per requests
Application :
Automotive brake
Description

Automotive steel tubes JASO M 101-94 Metal pipes for automobile tubing

Automotive steel tubes

TDW Brazed double wall low carbon steel tubing Tubing mainly for brakes

TSW Welded low carbon steel tubing Tubing mainly for fuel and lubrication

STKM 11J Carbon steel tubes for machine Structural purpose Tubing for cooling etc.

C1201 or C1220 Tubing mainly fpr air brakes

Tolerance :

Outside Dia: Nominal +/-0.1mm

Wall thickness: Nominal +/-0.1mm

Appearance : No harmful defect

Automotive steel tubes material:

Chemical Composition:

C

 Mn P S
0.12Max 0.50Max 0.04Max 0.045Max

Mechanical properties

T.S. Y.P. E.L HR30T
30kg/mm2min 18kg/mm2min 25%min 65Max

Corrosion Resistance (Hours)

Zn8μm Zn13μm Zn25μm Zn+PVF
White 72 72 72 -

Red

 192 288 480 3000

Pressure Proof Test(kg/mm2)

DW

 SW
Under 8 350 250
8.00-10.0 250 200

Automotive steel tubes
Flattening&Bending Test

DW No crack

SW Not mentioned.

Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94 Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
