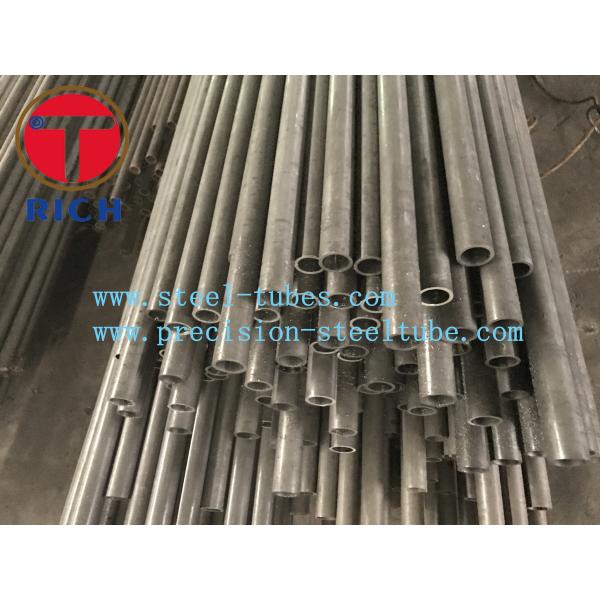

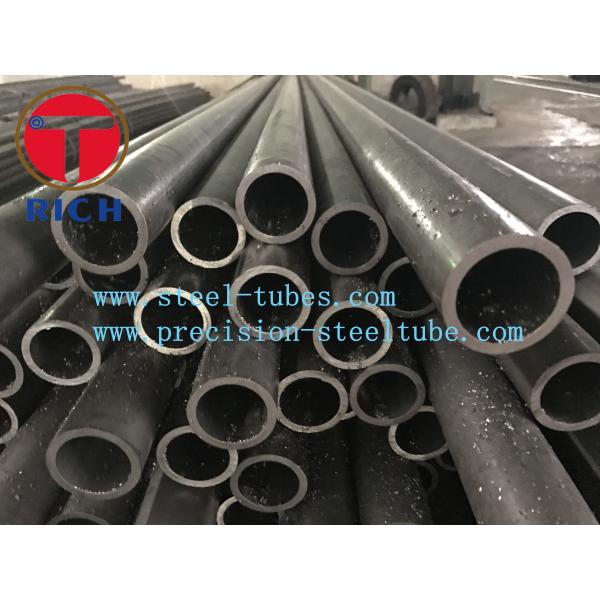

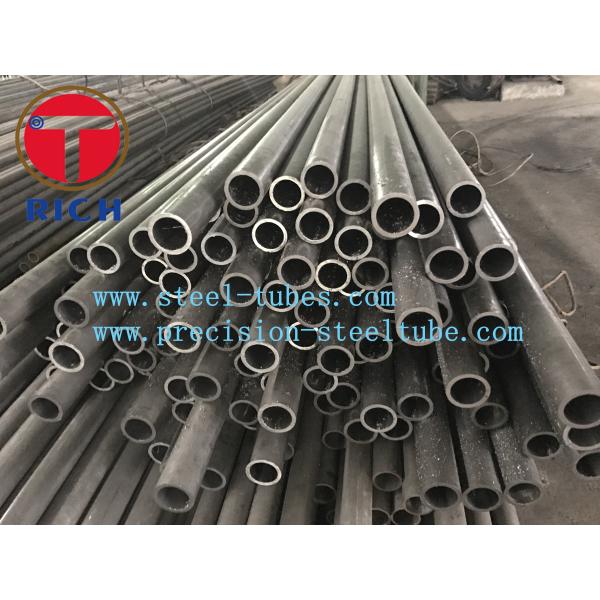

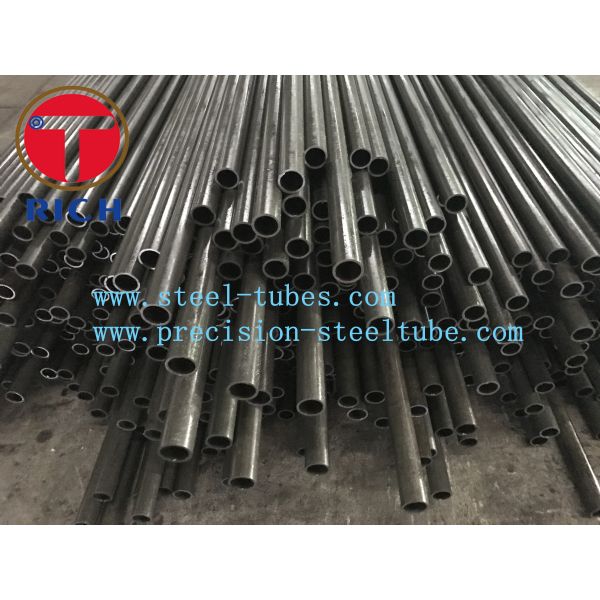

ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
Specifications
Brand Name :
TORICH
Model Number :
ASTM A192
Certification :
ISO9001, ISO14001，TS16949
Place of Origin :
CHINA
MOQ :
5 tons
Price :
USD1200
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
60000tons/year
Delivery Time :
45-60 days
Packaging Details :
In bundles with seaworthy packing
Product name :
ASTM A192 Seamless Carbon Steel Boiler Tubes for High Pressure Boilers
Standard :
ASTM A192
Grade :
ASTM A192
Technique :
Cold drawn
Alloy or not :
No
Secondary or not :
Non-secondary
Specical pipe :
Boiler tube
Application :
Boilers/Superheaters
Surface treatment :
Oiled
Description

ASTM A192 Seamless Carbon Steel Boiler Tubes for High Pressure Boilers

Material: Carbon Steel

Production: Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.

Size range: O.D.: 12.7-177.8mm W.T.: 1-25.4mm L: according to customer requirement

Applications:

for Boilers,Superheaters,

Heat-Exchangers,

High-pressure Boilers,

Steam Boilers

Cold Condensers and High-Pressure Services,

High-Temperature Services for Boiler Constructions

Heat treatment:
Hot finished tubes need not be heat treated.

Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher

Steel Grade and Chemical Compositions:

C 0.06-0.18
Mn 0.27-0.63
P ≤0.035
S ≤0.035
Si ≤0.25

Mechanical Properties
Tensil Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%

Hardness

Brinell Hardness Rockwell Hardness Number
WT≥0.200in(5.1mm) WT＜0.200in(5.1mm)
137HRB 77HRB


Tests and Inspection:
Mechanical Testing:

Flattening Test

Flaring Test

Flange Test

Hardness Test

Hydrostatic Test

ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers

ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers ASTM A192 Seamless Carbon Steel Boiler Tubes For High Pressure Boilers
