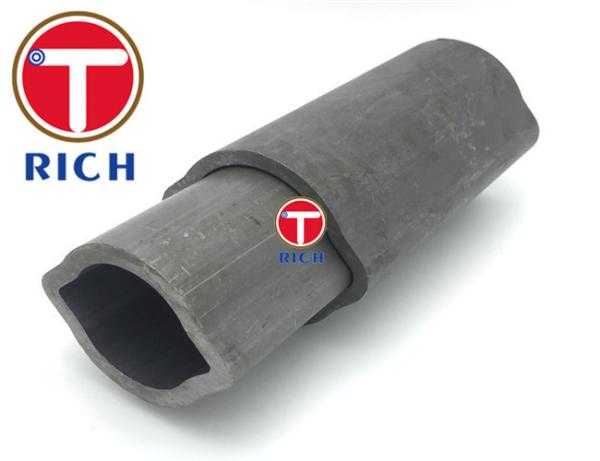

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Specifications
Brand Name :
Torich
Model Number :
1020 , E235 , E355 etc
Certification :
ISO 9001 ISO14001 TS16949
Place of Origin :
China
MOQ :
1 tons
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 Ton per Year
Delivery Time :
30-45 days after order confirmed
Packaging Details :
In plywood case, In wooden box.
Characteristic :
Triangle Steel Tube
Material :
ST52 , E235 , 1020 etc
Production Method :
Seamless Cold Drawn
Package :
In bundles or as per requests
End protector :
Plain / Beveled
Length :
2-12m
Type :
Carbon Steel Lemon Tube
MTC :
EN10204.3.1
Description

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft

Products Description:

for Agricultural Drive Shaft Carbon Steel E235 E355 PTO Shaft-2 Lemon Tube

Chemical Compositions:

Standard Steel Grade C Si Mn P S
EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025
E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025
E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St52 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
GB/T 3639 10 0.07-0.13 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
20 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
35 0.32-0.39 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
45 0.42-0.50 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
Q345B ≤0.20 ≤0.50 ≤1.70 ≤0.030 ≤0.030

Size:

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft

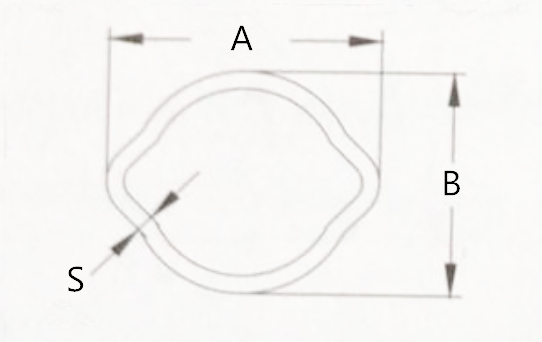

Lemon Tube Outer (mm) Inner (mm)
A B S A B S
1S 39 30 3 30.8 3.7 3.5
4S 48 41.2 3 40.1 34.5 4
6S 57.5 48 3.8 49 39.5 4.5
Lemon Tube Outer (mm) Inner (mm)
A B S A B S
1S 39 30 3 30.8 3.7 3.5
4S 48 41.2 3 40.1 34.5 4
6S 57.5 48 3.8 49 39.5 4.5


Applications: for Agricultural Drive Shaft

Product information:

Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355
Grade: BS, JIS, GB, DIN, ASTM, API,
Shape: Lemon
Wall thickness: 0.5-50mm
Length: up to 12m, or according to customer's requirement.
Outer diameter: Round: 5-420mm
Diameter and wall thickness could be at customer's request.
Technology: Cold Draw/Cold Rolled
Surface treatment: painted,galvanized,or oiled according to customer's requirement
Application: Lighting,furniture,medical equipments
Place of origin: China
Application Mechanical structure, Carbon pressure machinery etc.

Production Steel Tube:

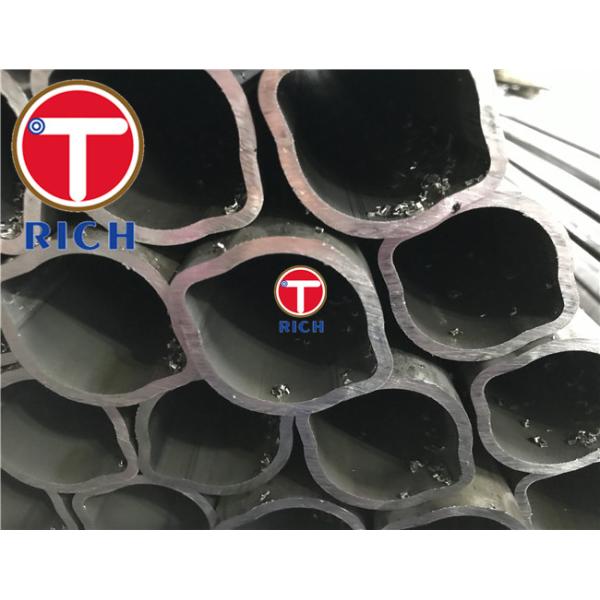

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft

Eddy Current Test and Ultrasonic Test:

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft

Packing:

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
