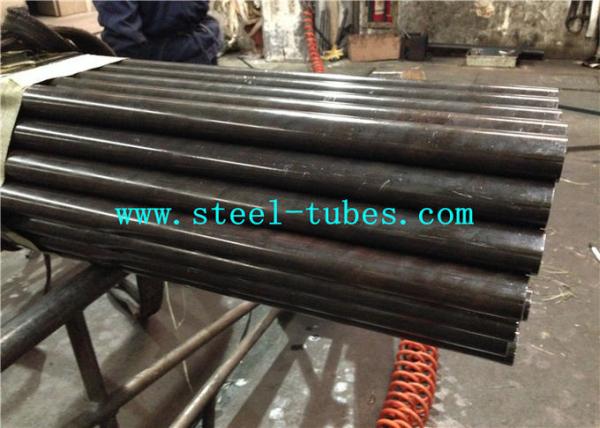

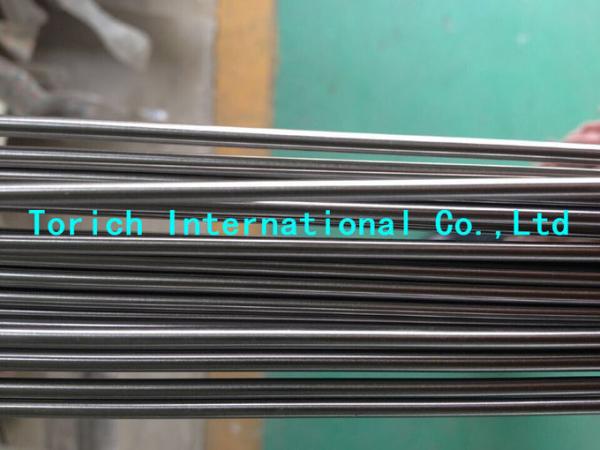

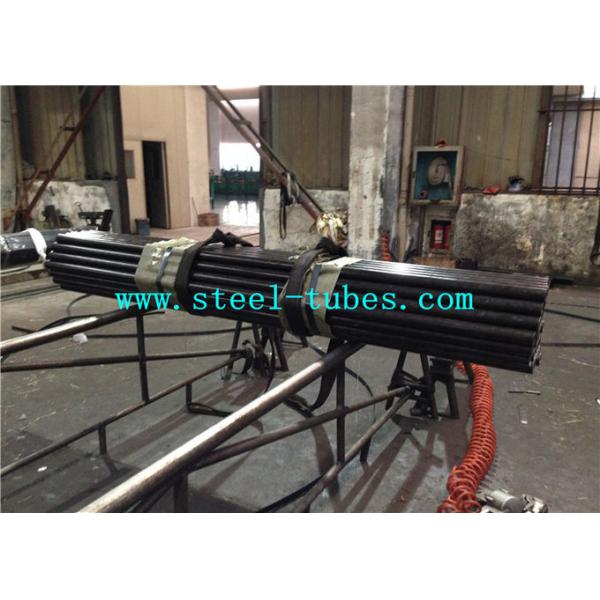

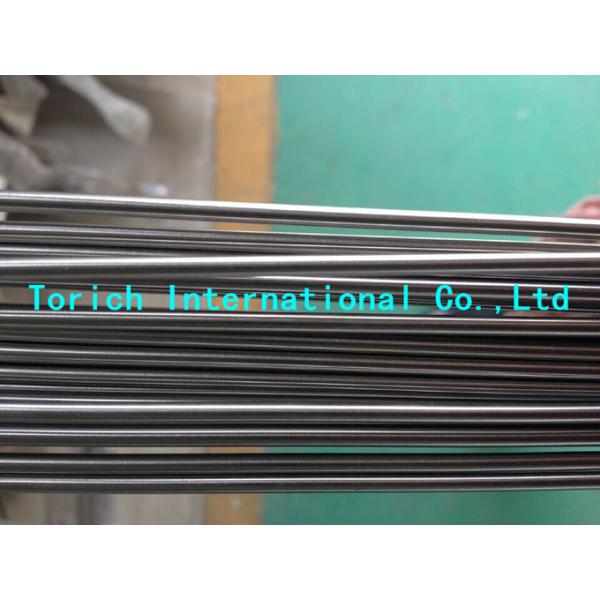

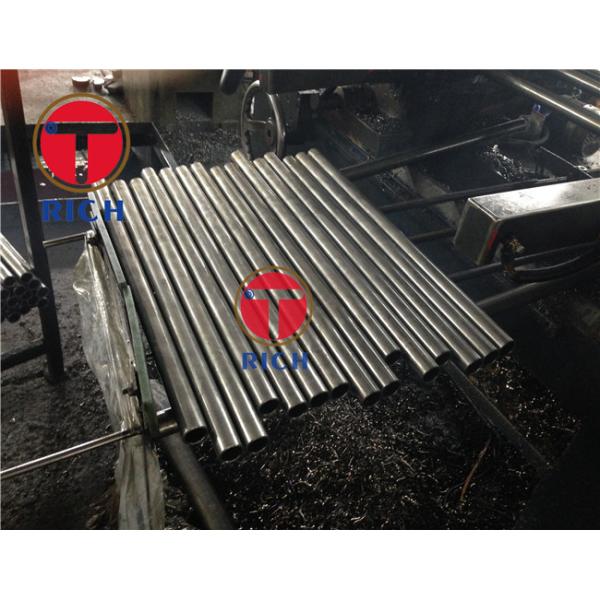

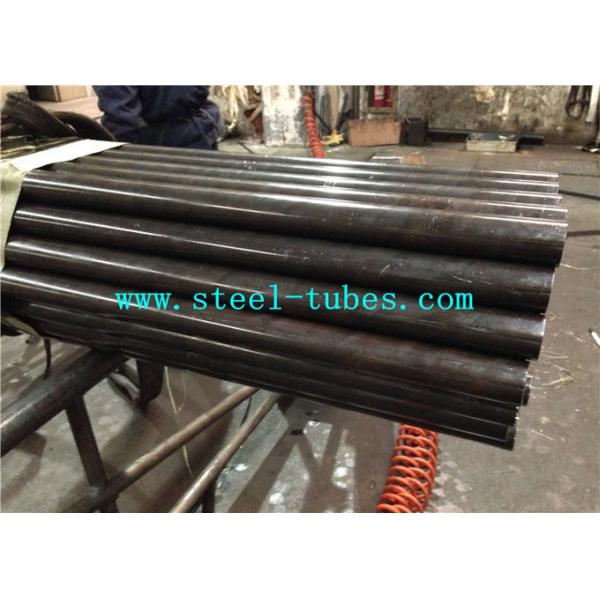

Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
Specifications
Brand Name :
TORICH
Model Number :
41Cr4 40Cr DIN1.7035
Certification :
ISO14001:2008,TS16949
Place of Origin :
ZheJiang,CHINA
MOQ :
2 Ton
Price :
negotiable
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
60000 Ton per year
Delivery Time :
30-35 days
Packaging Details :

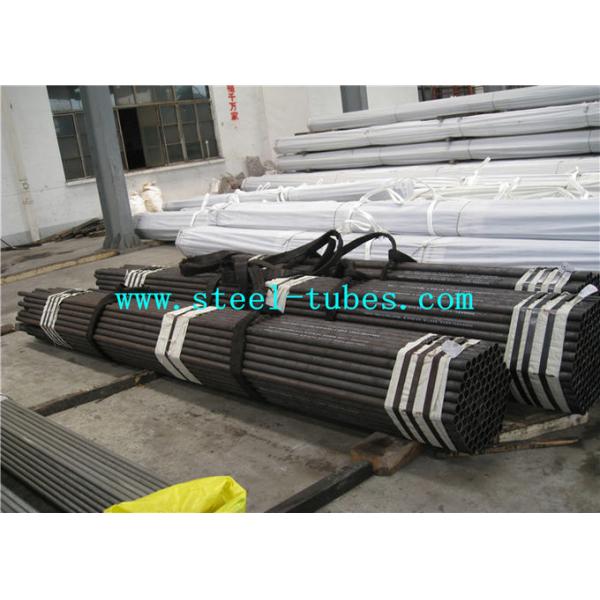

packing in wooden boxes or in hexagonal bundles
Product name :
Seamless Cold Drawn Or Cold Rolled Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel , Axle , Shaft
Type :
Cold Rolling Cold Drawn
Surface :
Oiled
Material :
41Cr4 40Cr DIN1.7035
Usage :
For Gear Wheel , Axle , Shaft
Shape :
Round Shape
OD :
3-420mm
WT :
0.5-50mm
Description

Seamless Cold Drawn Or Cold Rolled Alloy Steel Tubing 41Cr4 40Cr DIN1.7035 For Gear Wheel , Axle , Shaft

Alloy Steel Tubes 41Cr4 40Cr DIN1.7035

Seamless Steel Tubes with alloy steel grade 41Cr440CrDIN1.7035

International equivalent:
JIS: SCr440
ASTM: 5140
ISO: 41Cr4

41Cr4DIN1.7035:
C:0.42
Si:0.25
Mn:0.70
Cr: 1.05

40Cr:
C:0.37-0.44
Si:0.17-0.37
Mn:0.50-0.80
Cr:0.80-1.10

Seamless steel tubes with these steel grade could achieve good mechanical properites with quenching and tempering heat treatment (QT), could also heat treatment with annealed.

Application:
Gear wheel, axle, shaft, etc
Mechanical properties:
Tensile strength ≥980 Mpa
Yield strength ≥785 Mpa
Elongation ≥9
Hardness ≤229HBS

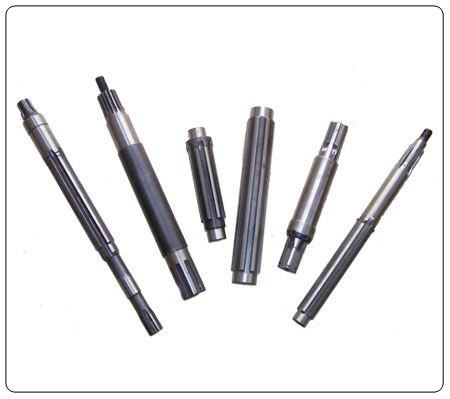

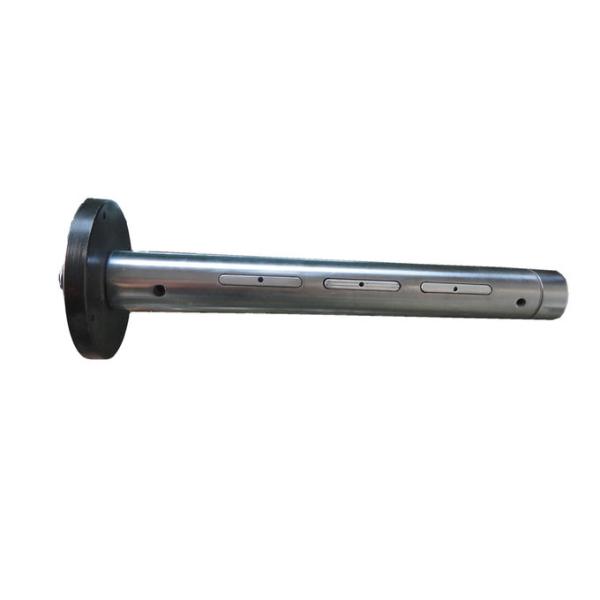

For Application of Shafts and Machinery Parts:
Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle ShaftCold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft

Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle ShaftCold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

Cold Drawn / Rolled Alloy Steel Pipe Seamless For Gear Wheel Axle Shaft
