Specifications
Brand Name :
TORICH
Model Number :
DIN EN 10297
Certification :
ISO9001, ISO14001, TS16949
Place of Origin :
ZHEJIANG, CHINA
MOQ :
5Tons
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000Tons per Year
Delivery Time :
30-45 work days
Packaging Details :
Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Keyword :
Seamless Steel Tubes
Standard :
DIN EN10297, DIN 1626, DIN 17175, API 5CT, API 5DP etc
Material :
10#, 20#, 45#, 16Mn, Q195, Q235 etc
Surface :
Black Painted
Technique :
Cold Drawn
Shape :
Round
OD :
6-813 mm
WT :
0.5-100 mm
End protector :
Plastic Pipe Cap
Usage :
Mechanical and General Engineering
Description

TORICH DIN EN 10297 Seamless Steel Tubes for Mechanical Application

Product Description:

OD: 6-813 mm

WT: 0.5-100mm

Length: 1-12m

Material: 10#, 20#, 45#, 16Mn, Q195, Q235, Q345

Delivery condition:
- Fine Grain Steel: Steel having an austenitic/ferritc grain size equal to or finer than 6 when measured in accordance with EURONORM103

- Normalizing Rolling: A rolling process in which the final deformation is carried out in a certain temperature range leading to a material condition equivalent to that obtained after normalizing so that the specified values of the mechanical properties are retained even after normalizing (+N)

- As Rolled: Formed after heating into the austenitic region without subsequent heat treament (+AR)

- Annealing: Heat treatment at a temperature slightly below AC1 (+A)

- TH Treatment: Heat treatment with the object of achieving a hardness within a specified range (+TH)

- FP Treatment: Heat treatment with the object of producing a ferritic and pearlitic structure and achieving a hardness within a specified range (+PH)

- Employer: Organization for which the person works on a regular basis

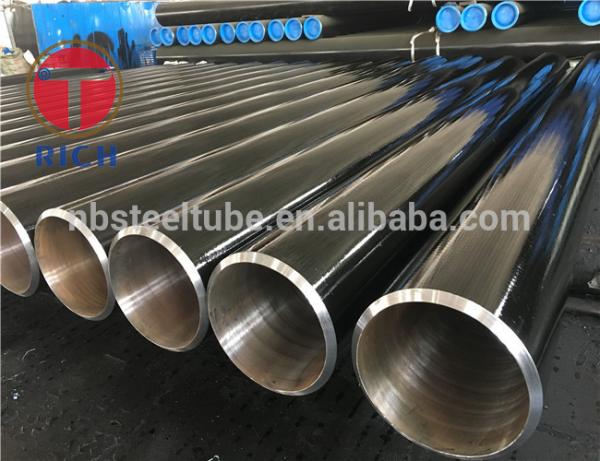

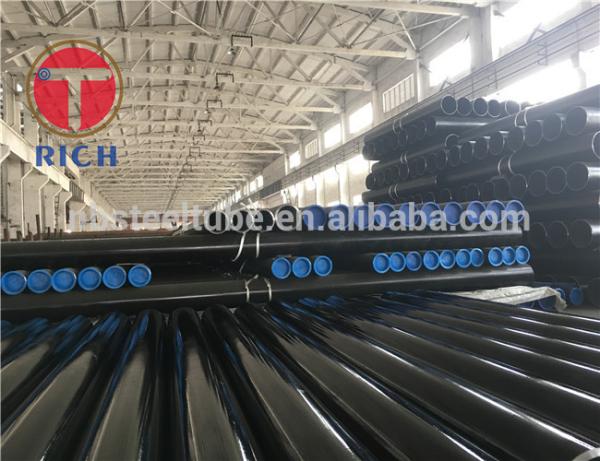

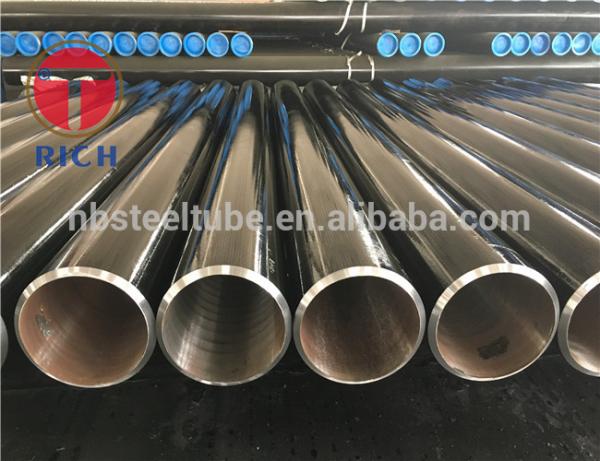

Product Picture:

Din En 10297 Seamless Steel Tube Mechanical With Black Painted SurfaceDin En 10297 Seamless Steel Tube Mechanical With Black Painted SurfaceDin En 10297 Seamless Steel Tube Mechanical With Black Painted Surface

Chemical Composition for tubes made of non-alloy special steel in % by mass:

Steel Grade C Si Mn P S
Steel name Steel number min max min max min max max max
C22E 1.1151 0.17 0.24 - 0.40 0.40 0.70 0.035 0.035
C35E 1.1181 0.32 0.39 - 0.40 0.50 0.80 0.035 0.035
C45E 1.1191 0.42 0.50 - 0.40 0.50 0.80 0.035 0.035
C60E 1.1221 0.57 0.65 - 0.40 0.60 0.90 0.035 0.035
38Mn6 1.1127 0.34 0.42 0.15 0.35 1.40 1.65 0.035 0.035

Chemical Composition for tubes made from alloy special steel in % by mass:

Steel Grade C Si Mn P S Cr Mo Ni
Steel name Steel number min max min min max max max min max min max min max
41Cr4 1.7035 0.38 0.45 0.40 0.60 0.90 0.035 0.035 0.90 1.20 - - - -
25CrMo4 1.7218 0.22 0.29 0.40 0.60 0.90 0.035 0.035 0.90 1.20 0.15 0.30 - -
30CrMo4 1.7216 0.27 0.34 0.35 0.35 0.60 0.035 0.035 0.80 1.15 0.15 0.30 - -
34CrMo4 1.7220 0.30 0.37 0.40 0.60 0.90 0.035 0.035 0.90 1.20 0.15 0.30 - -
42CrMo4 1.7225 0.38 0.45 0.40 0.60 0.90 0.035 0.035 0.90 1.20 0.15 0.30 - -
36CrNiMo4 1.6511 0.32 0.40 0.40 0.50 0.80 0.035 0.035 0.90 1.20 0.15 0.30 0.90 1.20
30CrNiMo8 1.6580 0.26 0.34 0.40 0.30 0.60 0.035 0.035 0.80 2.220 0.30 0.50 1.80 2.20
41NiCrMo7-3-2 1.6563 0.38 0.44 0.30 0.60 0.90 0.025 0.025 0.70 0.90 0.15 0.30 1.65 2.00

QUALITY CONTROL:

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us

TORICH DIN EN 10297 Seamless Steel Tubes for Mechanical Application
