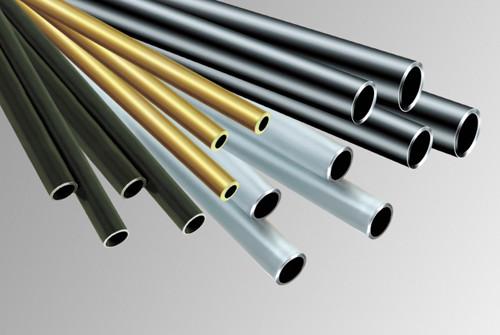

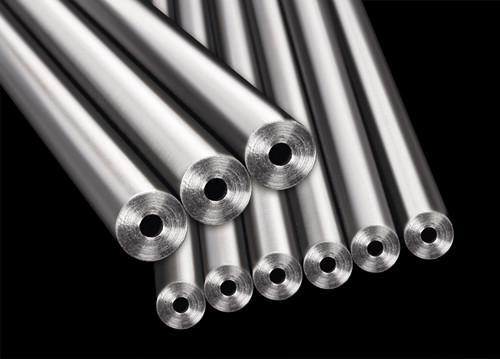

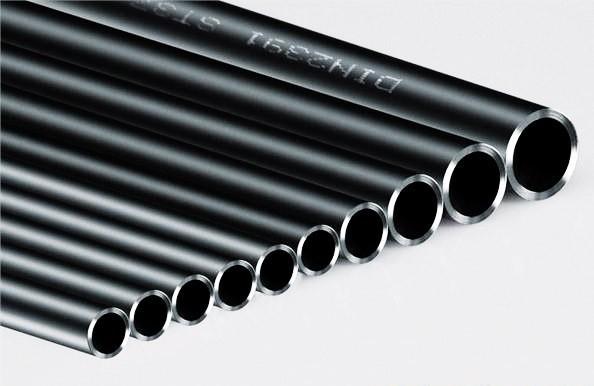

Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
Specifications
Brand Name :
TORICH
Model Number :
DIN2391, EN10305-1, EN10305-4 etc.
Certification :
ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 LR KR
Place of Origin :
China
MOQ :
5 tons
Price :
USD 600-1200 ton
Supply Ability :
60000 tons per year
Delivery Time :
35-60 days
Packaging Details :
oil antirust In hexagonal bundles
Material :
Carbon steel
Steel grade :
St37.4, St35(E235), St45(E255), St52(E355),etc.
Standard :
DIN2391, EN10305-1, EN10305-4 etc.
Shape :
Round
Outer Diameter :
4-60 mm
Wall Thickness :
0.5-8mm
Application :
Auto parts
Production method :
Seamless Cold drawing
Characteristic :
High accuracy, excellent brightness,high cleanness inside wall
Description

High Pressure Oil Tubes for Diesel Engine

EN10305-1, EN10305-4, DIN2391,

E235, E355, ST37.0, ST44.0, ST52.0

High Pressure Oil Tubes for Diesel Engine Galvanized Precision Tube , NBK Precision Steel Tube , Passivated Steel Tubes

High Pressure Oil Tubes for Diesel Engine


Production process:
Cold drawing bright heat treatment without oxidization 100%nondestructive testing inside flushing under the high pressure antirust oiling outer and inner surface.

Main Features:
high accuracy, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall. The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening . The complicated geometrical forming and machining can be realized.

Main Application:
to be used in hydraulic system, automobile parts and in the occasion where the high precision, brightness, cleanness and mechanical properties of the tube are required.
Standards: DIN2391, EN10305-1, EN10305-4 etc.
Steel Grade: St37.4, St35(E235), St45(E255), St52(E355),etc.
Outer Diameter: 4-60 mm
Wall Thickness: 0.5-8mm

Our products of Precision Carbon Steel Tube are widely used in:
  • Engineering machinery
  • Machine tool industry
  • Hydraulic industry
  • Special vehicle
  • Automobile pipeline
  • Heavy machinery
  • Compressor
  • Shipbuilding industry
  • Railway locomotive
  • Diesel engine
  • Utility boiler
  • Injection molding machine
  • Power equipment
  • Heavy duty automobile
  • Forging and stamping machine
Main Characteristics:
No Oxidation Layer on the Outer and Inner Walls
No Crack under Flaring and Flattening
No Leakage under High Pressure
No Distortion after Cold Bending
High Precision High Cleanness Excellent Brightness

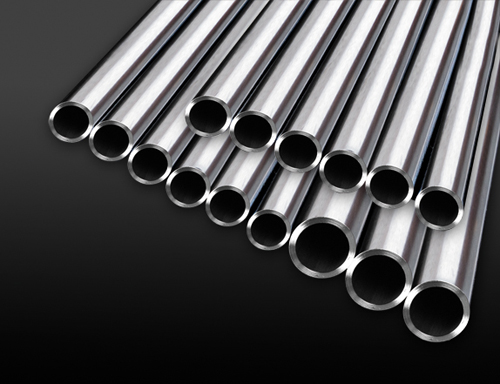

Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel EngineGalvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine

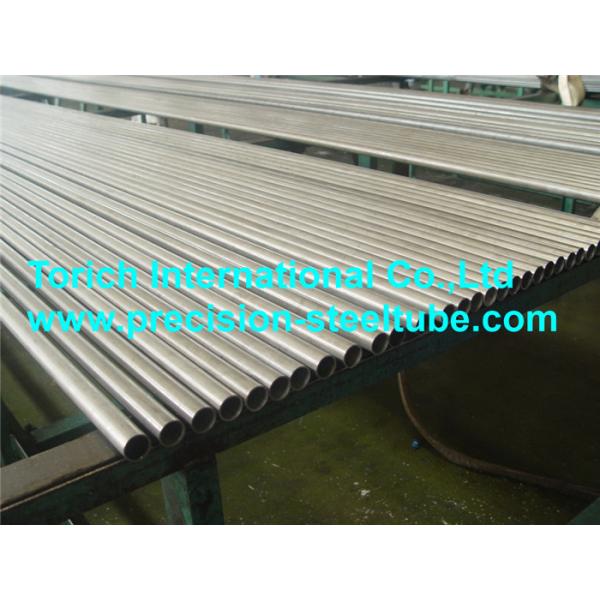

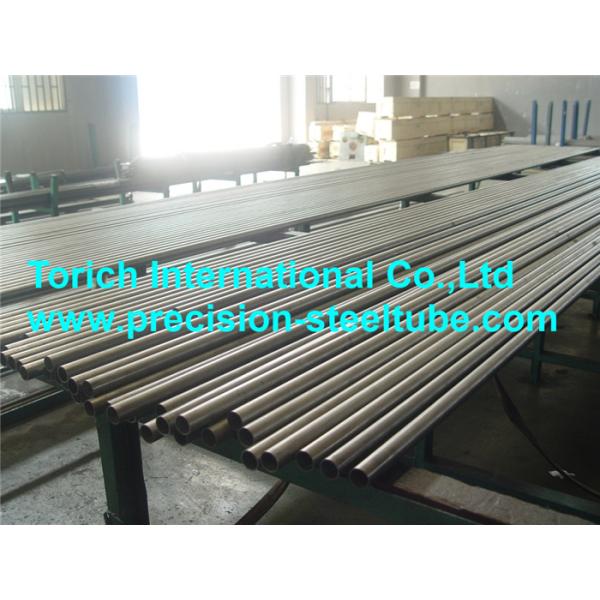

Precision Carbon Steel Tube in production before galvanizing:

Galvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel EngineGalvanized NBK Precision Steel Tube , High Pressure Oil Tubes for Diesel Engine
