Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
Specifications
Brand Name :
Torich
Certification :
ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 ABS DNV
Place of Origin :
China
MOQ :
5MT
Price :
USD1200-1300 per ton
Payment Terms :
L/C, T/T
Supply Ability :
6000MT/Month
Delivery Time :
30-45 days
Packaging Details :
Oil protection in bundles or in carton boxes or wooden boxes,accroding to customer's requirement.
Type: :
Hydraulic Cylinder Tube
Material: :
Bearing steel, Stainless steel
Steel Grade: :
CK45, ST52, 20MnV6,42CrMo4, 40Cr
I.D.: :
40-400mm
W.T: :
≥5mm
Alloy Or Not: :
Non-alloy
Length: :
Up to 12000mm according to customer's requirement
Place of Origin: :
Zhejiang, China (Mainland)
Surface Treatment : :
Chromed, Nickeled
Description

Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR


Material: CK45;ST52;20MnV6;42CrMo4;40Cr

CHEMICAL COMPOSITION(%)
　
Steel Grade C% Mn% Si% S% P% V% Ni% Cr% Mo% Cu%
CK45 0.42-0.50 0.50-0.80 0.17-0.37 ≤0.035 ≤0.035 　/ ≤0.25 ≤0.25 /　 ≤0.25
ST52 ≤0.22 ≤1.6 ≤0.55 ≤0.04 ≤0.04 0.02-0.15 　/ /　 /　 　/
20MnV6 0.17-0.24 1.30-1.70 0.10-0.50 ≤0.035 ≤0.035 0.10-0.20 ≤0.30 ≤0.30 /　 ≤0.30
42CrMo4 0.38-0.45 0.5-0.8 0.17-0.37 ≤0.035 ≤0.035 0.07-0.12 ≤0.03 0.90-1.20 0.15-0.25 ≤0.03
40Cr 0.37-0.45 0.50-0.80 0.17-0.37 ≤0.035 ≤0.035 　/ ≤0.30 0.80-1.1 /　 ≤0.03

MECHANICAL PROPERTIES
　
Material Tensile Strength
Rm (Mpa)		 Yield Strength
Rel (Mpa)		 Elogation
A%		 CHARPY CONDITION
CK45 610 355 15 >41J Normalized
CK45 800 540 20 >41J Q+T
ST52 500 355 22 　 Normalized
20MnV6 750 590 12 >41J Normalized
42CrMo4 980 850 14 >47J Q+T
40Cr 1000 800 10 　 Q+T


SUPPLY CONDITION Ground and chrome plated
CHROME THICKNESS 20 to 30 micron
SURFACE ROUGHNESS Ra≤0.2 micron and Rt≤2 micro
TOLERANCE ON DIA ISO f7 on the diameter
OVALITY Half of the tolerance ISO f7
STRAGHNESS ≤0.2MM/M
SURFACE HARDNEDD 850-1150 HV(vickers 100g)
COHESION No craks,breaking or detaching after thermic shock(warming up at 3200 celsius degrees and cooling in water)
POROSITY Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
CORROSION RESISTANCE Test in natural salt spray according to ASTM B117-120hours
Results evaluation accordin to ISO4540 RATING7-10
WELDABILITY Good

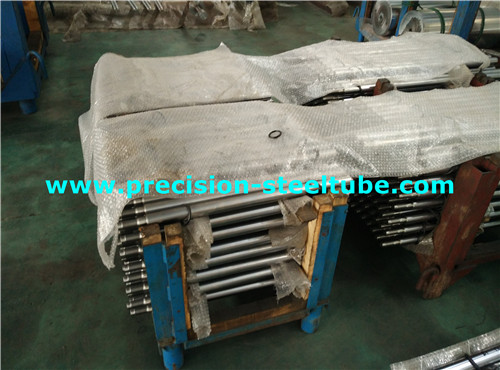

PACKING Anti rust oil to be applied on material and each rod to be packed in paper sleeve
CERTIFICATE All certificate related with material heat treatment and plating is required

Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR

Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR Stainless Steel Hard Chrome Plated Piston Rod CK45 ST52 20MNV6 42CRMO4 40CR
