Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Cold Drawn Mild Steel SS304 Capillary Tube For Medical
Specifications
Brand Name :
TORICH
Model Number :
ASTM A213/ASTM A269/ASTM A249
Certification :
ISO9001,ISO14001,TS16949
Place of Origin :
Zhejiang,China
MOQ :
1kg
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000 ton per year
Delivery Time :
10-15 days
Packaging Details :
packing in carton box
Product name :
Capillary Tube Mild Steel SS304 Capillary Tube
Keyword :
SS304 Capillary Tube
Material :
201,304,310,316,etc
Usage :
Medical application
Shape :
Shape
Technique :
Cold Drawn
Surface :
Customized
Length :
Max12000mm
OD :
0.28-10mm
WT :
0.08-1mm
Description

Capillary Tube Mild Steel SS304 Capillary Tube

TORICH is a professional steel tubes supplier from China with over 23 years experience.
We have NICE quality of Stainless Steel Capillary Tube,have exported Capillary Tube Mild Steel SS304 Capillary Tube to India,UAE,Australia,Poland,etc

Standard: ASTM, ASME,EN, JIS, DIN,GB/T etc

Steel grade: 304(0Cr18Ni9), 304L(00Cr18Ni10), 316(0Cr17Ni12Mo2), 316L(0Cr17Ni14Mo2), 321, 409, 409L, 430

Size: OD 0.28-10mm WT 0.08-1mm Length≤500mm Or in coil

Tolerance: OD+/- 0.01mm,WT+/- 0.01mm,L +/- 0.1mm
Surface Treatment: Polishing,Annealing, Mirro surface, Bright, Picklin

Application: medical treatment, petroleum, aerospace, medical equipment, air conditioning, chemical industry, electronics, accessories, food machinery, power generation, pharmaceutical and other fields.

　
201
202
304
316
S31803
S32750

Chemical Composition(%)
C
≤0.15
≤0.15
≤0.08
≤0.08
≤0.030
≤0.030
Si
≤1.00
≤1.00
≤1.00
≤1.00
≤1.00
≤0.80
Mn
5.5-7.5
7.5-10.0
≤2.00
≤2.00
≤2.00
≤1.20
P
≤0.060
≤0.060
≤0.045
≤0.045
≤0.030
≤0.035
S
≤0.030
≤0.030
≤0.030
≤0.030
≤0.020
≤0.020
Cr
16-18
17-19
18-20
16-18
21-23
21-23
Ni
3.5-5.5
4.0-6.0
8.0-10.5
16.0-18.5
4.5-6.5
6.0-8.0
Mo

　

　

　
2.0-3.0
2.5-3.5
3.0-5.0
N
≤0.25
≤0.25

　

　
0.08-0.2
0.24-0.32
Cu

　

　

　

　

　
≤0.50

Mechanical Property
Tensile Strength(MPa)
≥655
≥620
≥515
≥515
≥620
≥800
Yeild Strength(MPa)
≥260
≥310
≥205
≥205
≥450
≥550
Elongation(%)
≥35
≥35
≥35
≥35
≥25
≥15
Hardness(HV)
≤230
≤230
≤200
≤200
≤303
≤323

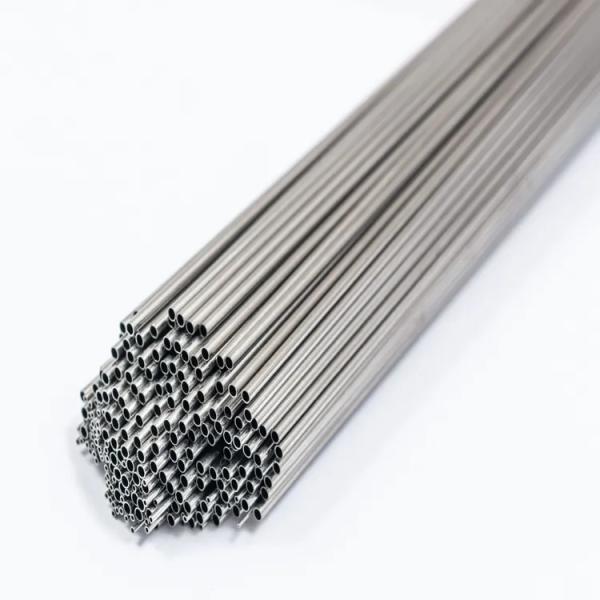

Product pictures

Cold Drawn Mild Steel SS304 Capillary Tube For Medical

Stainless steel welded pipe production process:
Raw material - silting - welding pipe - trimming - polishing - inspection (spray printing) - packaging - shipping (warehouse) (decorative welded pipe). Raw material - Slitting - Welding pipe Heat treatment - Correction - Straightening - End trimming - Pickling - Water pressure test - Inspection (printing) - Packaging - Shipping (warehouse) (Pipe for industrial piping of welded pipe).

Cold Drawn Mild Steel SS304 Capillary Tube For Medical

Regular sizes we can supply

Cold Drawn Mild Steel SS304 Capillary Tube For Medical

Certificate

Cold Drawn Mild Steel SS304 Capillary Tube For Medical

Customer's praise

Cold Drawn Mild Steel SS304 Capillary Tube For Medical

1.0*0.1 and 0.8*0.1 Super Small Diameter Capillary Tube for Medical Purposes
