SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System
Specifications
Brand Name :
TORICH
Model Number :
JIS G3314
Certification :
ISO 9001 ISO 14001 TS16949
Place of Origin :
Zhejiang,China
MOQ :
10 tons
Price :
900-1200 usd per ton
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50000 tons per year
Delivery Time :
20-45 days
Packaging Details :
JIS G3314 SA1D 38.1*1.6 Welded Aluminized Steel Tubes,packing in standard marine package
Product name :
JIS G3314 SA1D 38.1*1.6 Welded Aluminized Steel Tubes
Keyword :
Aluminized Steel Tubes
Application :
for exhaust system
Type :
ERW/HFW
Shape :
Round
Material :
1010,1020,1045,SPHC,SPCC,4130
Length :
Max12000mm
OD :
5-420mm
WT :
0.5-50mm
Brand :
TORICH
Description

JIS G3314 SA1D 38.1*1.6 Welded Aluminized Steel Tubes

ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing

Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm

Grade: 1008,1010, 1020, 1026

Production: ERW + DOM

Steel Grade and Chemical Compositions:
Steel Grade C Mn P S Si Cr Mo
max max max max min
1008 0.10 0.5 0.035 0.035
1010 0.08-0.13 0.30-0.60 0.035 0.035
1018 0.14-0.20 0.30-0.60 0.035 0.035
1020 0.17-0.23 0.30-0.60 0.035 0.035
1026 0.22-0.28 0.60-0.90 0.035 0.035
1035 0.31-0.38 0.60-0.90 0.035 0.035
4130 0.28-0.33 0.40-0.60 0.035 0.035 0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25

Packing:

In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing

Deliver condition:

1. A.W.H.R. "as welded" from hot-rolled steel

2. A.W.C.R. "as welded" from cold-rolled steel

3. S.D.C.R. "sink-drawn", cold-rolled steel

5. M.D. mandrel drawn

6. S.S.I.D. special smooth inside diameter

Please specify the delivery condition when sending the enquiry!

Thermal condition:

1. No final thermal treatment

2. Stress relieved

3. Annealed

4. Normalized

Applications: for Machinery, Mechanical Engineer, Automotive Parts,Agricultural.

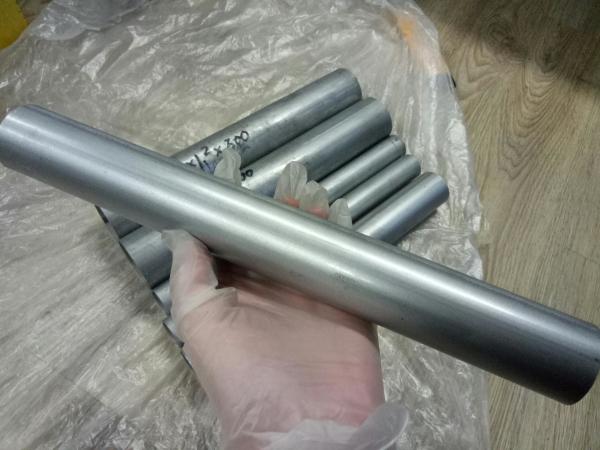

Product pictures

SA1D ERW Type Welded Aluminized Steel Tube For Exhaust SystemSA1D ERW Type Welded Aluminized Steel Tube For Exhaust System

OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam for Heavy Truck Exhaust System
