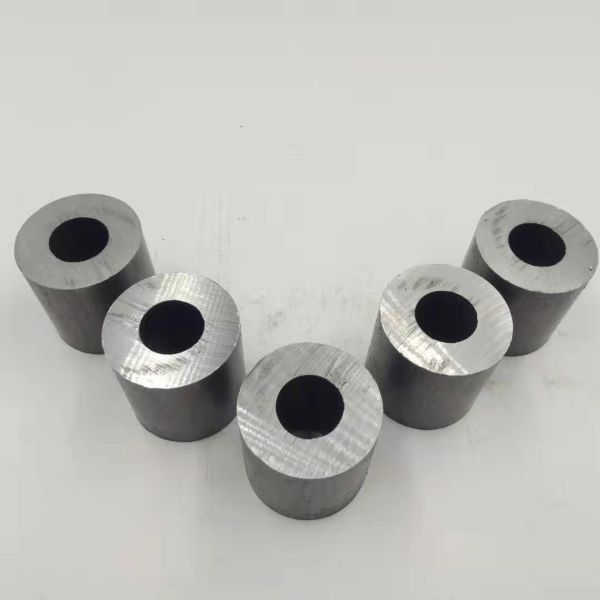

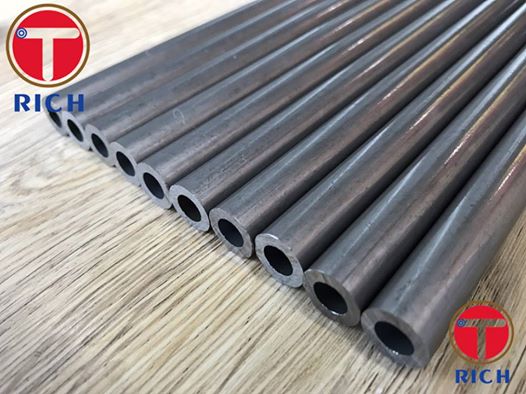

Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Specifications
Brand Name :
Torich
Model Number :
ASTM A519
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
2 tons
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000tons per year
Delivery Time :
5-8week days
Packaging Details :
In bundles
Material :
Carbon steel
Size :
5-400mm
End :
plain
Origin :
China
Length :
As per requests
Application :
Mechaning pipes
Standard :
ASTM
Description

42X18 AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube

Torich is a profesional Producer for precision ground shafting,material is hard high carbon steel

1045,1020 .1010 etc ,widly use in Machining

Torich can produce precision metal tubing as per below standard and material:

andard & Material

 Carbon Steel ASTM A519 Standard MT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518
JIS G3445 Standard STKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B STKM14C STKM15A STKM15C STKM16A STKM16C STKM17A STKM17C STKM18A STKM18B STKM18C STKM19A STKM19C STKM20A
JIS G3473 Standard STC370, STC440, STC510A, STC510, STC540, STC590A, STC590B
DIN 2391 Standard St 35, St45, St52
EN 10297-1 Standard E235, E275, E315, E355, E470
EN 10305-1 Standard E215, E235, E355
EN 10305-4 Standard E215, E235, E355
BS 6323-3 Standard HFS 3, HFS 4, HFS 5, HFS 8
NF A49-311 TU 37-b, TU 52-b, TU 56-b, TU XC35
Alloy Steel ASTM A519 Standard 1345, 3140, 4130, 4135, 4140, 4150, 4320, 4340, 5120, 5130
JIS G3429 Standard STH11, 12 STH21, 122 STH31
JIS G3441 Standard SCR420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM440TK

Size

 Size Range Tolerance
OD 10-80mm -0.035 -- +0.045mm
ID 5-74mm ±0.035mm
WT 1-14mm depends on sizes
Length random or fixed length +0-3.5mm
Straightness 0.15:1000, 0.4:1000, 0.5:1000 1:1000 or customized
Surface Roughness Ra 0.02—0.4μm

1045 material also called as 45 Steel in China ,Called S45C in Japan.1045 in America,Germany name is 1.1192.

It is used to make small-section quenched and tempered parts with large load and large-scale normalized parts with

small stress,as well as surface-hardened parts that do not require high core strength, such as pins, guide posts,

watch hands

and other components.

Heat treatment
Recommended heat treatment temperature: normalizing 850℃, quenching 840℃, tempering 600℃.
1045 steel is carbon structural steel, with low hardness and easy machining. It is often used in molds as templates,

stubs, guide posts, etc.,

but requires heat treatment.
1045 steel is qualified if its hardness is greater than HRC55 (up to HRC62) after quenching and before tempering.
The practical high hardness is HRC55 (induction quenching HRC58).

Tester:

Tensile testing machine, Rockwell hardness tester, eddy current flaw detection, chemical composition detector, magnetic

particle flaw detector, metallographic analysis instrument, surface roughness measuring instrument, outer micrometer,

inner diameter white dial indicator, vernier caliper

Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
